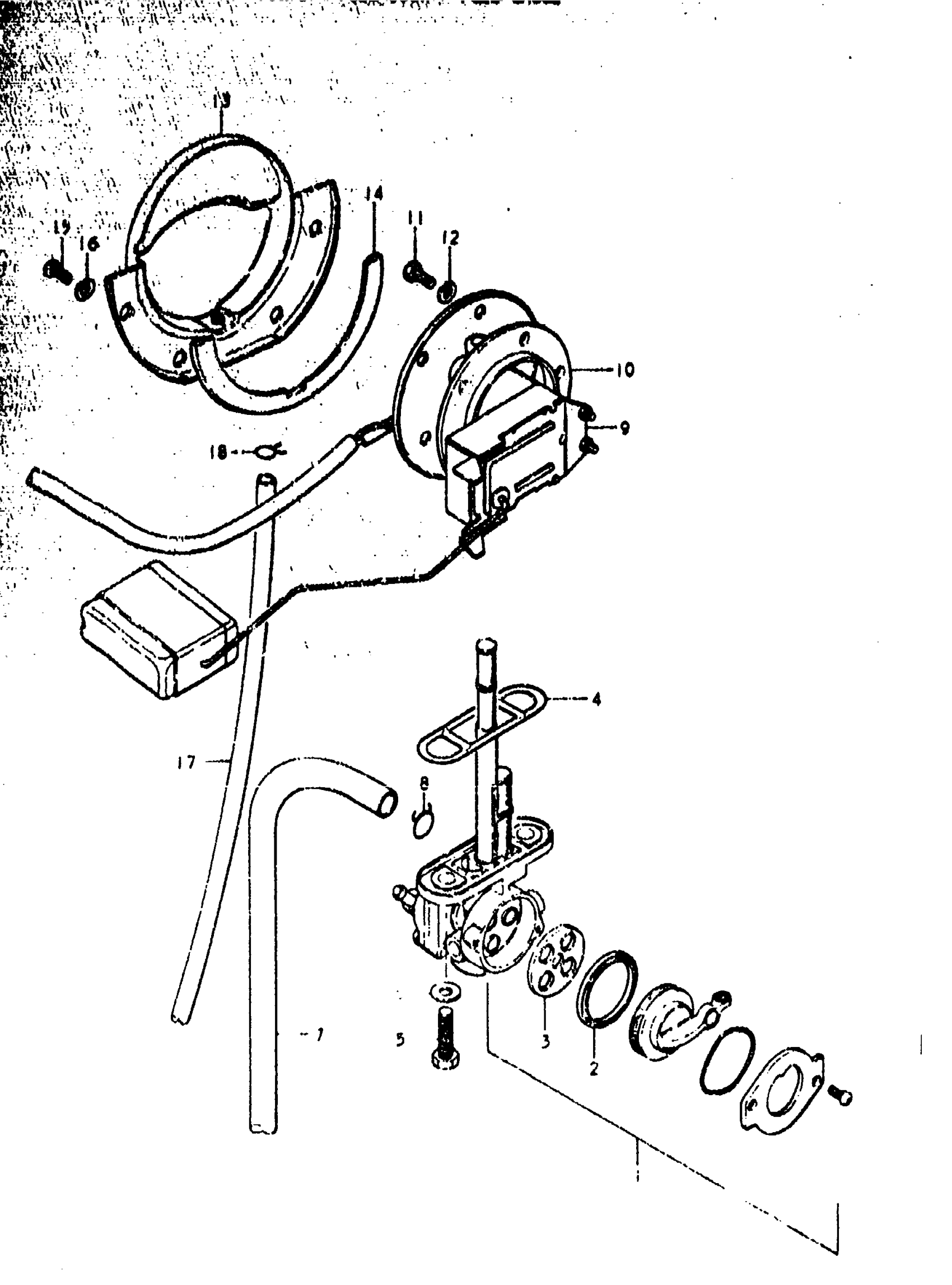

Suzuki GS1000C (1979) FUEL COCK - FUEL GAUGE Diagram

#

Description
Price

1

COCK ASSY, FUEL | C&EC This part replaces 44300-44010.

44300-44011

Unavailable

1

COCK ASSY, FUEL | N&EN; Includes Item(s) 2 - 4

44300-44011

Unavailable

2

V SEAL,FUEL COC | C&EC,N&EN This part replaces 44353-33154.

44353-33155

$5.25

3

GASKET | C&EC,N&EN This part replaces 44341-33150.

44341-33151

$2.19

4

O RING | C&EC This part replaces 44348-31050.

44348-31051

Unavailable

4

O RING | N&EN

44348-31051

Unavailable

5

BOLT | C&EC,N&EN This part replaces 09128-06006.

09128-06057

$1.65

6

GASKET (5.8X13X1.2) | C&EC,N&EN This part replaces 09168-06010.

09168-06023

$2.35

7

HOSE(7X10.2X200 | C&EC; 7x10.2x240 This part replaces 09343-07020.

09352-70104-00B

$15.32

7

HOSE(7X10.2X200 | N&EN; 7x10.2x250 This part replaces 09343-07026.

09352-70104-00B

$15.32

8

CLIP | C&EC,N&EN

09401-10401

$1.49

9

GAUGE ASSY, FUEL LEVEL | C&EC This part replaces 34810-49000.

34810-49002

Unavailable

9

GAUGE ASSY, FUEL LEVEL | N&EN; Includes Item(s) 10 This part replaces 34810-49001.

34810-49002

Unavailable

10

GASKET | C&EC,N&EN This part replaces 34825-49000.

34825-49001

$5.68

11

BOLT | C&EC,N&EN This part replaces 01104-05108.

01500-0510B

$1.80

12

LOCK WASHER | C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

13

PLATE | C&EC This part replaces 34885-49000.

34885-49005

Unavailable

13

PLATE | N&EN This part replaces 34885-49001.

34885-49005

Unavailable

14

GASKET,FUEL DRA | C&EC,N&EN This part replaces 34888-49000.

34888-49001

Unavailable

15

SCREW | C&EC,N&EN This part replaces 02112-05088.

02112-05087

$1.49

16

LOCK WASHER | C&EC,N&EN This part replaces 08321-21058.

08321-0105A

$1.84

17

HOSE | C&EC,N&EN; 5x8.2x580 This part replaces 09343-05037.

09352-50005-00B

$13.93

18

CLIP | C&EC,N&EN

09401-08402

$1.49
