Partiron

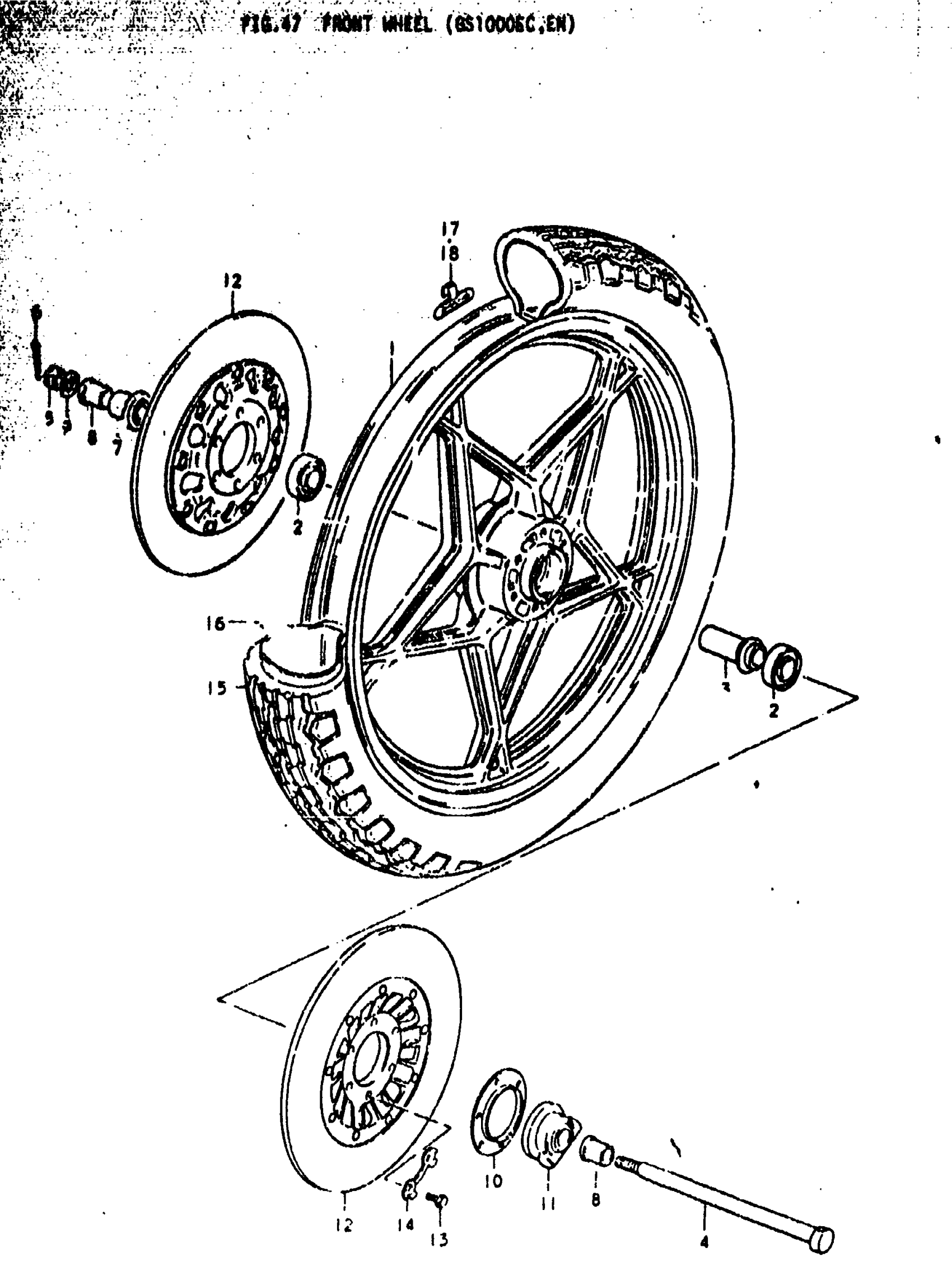

Suzuki GS1000C (1979) FRONT WHEEL (GS1000EC Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | EC; 1.85x19 This part replaces 54111-47602.

54111-49350-291

Unavailable

1

NO DESCRIPTION AVAILABLE | EN; 1.85x19 This part replaces 54111-47620.

54111-49350-291

Unavailable

2

BEARING | EC This part replaces 08123-63020.

08123-6302B

$22.74

2

BEARING | EN This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER | EC,EN

54730-18400

$20.45

4

AXLE, FRONT | EC,EN

54711-49000

Unavailable

5

NUT | EC,EN This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN | EC,EN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH | EC,EN

54740-18402

Unavailable

8

SPACER, AXIE | EC,EN

54741-49000

Unavailable

9

WASHER | EC,EN This part replaces 08322-21108.

08322-01107

$2.15

10

DUST SEAL | EC,EN

54871-31000

Unavailable

11

BOX ASSY,SPEEDO | EC,EN This part replaces 54600-49000.

54600-18403

Unavailable

12

DISK, FRONT BRAKE | EC,EN

59210-49000

Unavailable

13

BOLT | EC,EN; 8x34

09100-08094

$2.71

14

WASHER | EC,EN

09169-08016

$2.41

15

TIRE (3.50V19) | EC,EN; 3.50V19 This part replaces 55100-49010.

55100-49330

Unavailable

16

TUBE | EC,EN; 3.50-19 This part replaces 55200-15010.

55200-44611

$33.73

17

BALANCER | EC,EN; (0~3); 20G

55411-47001

Unavailable

18

BALANCER | EC,EN; (0~3) 30G

55412-47001

Unavailable
