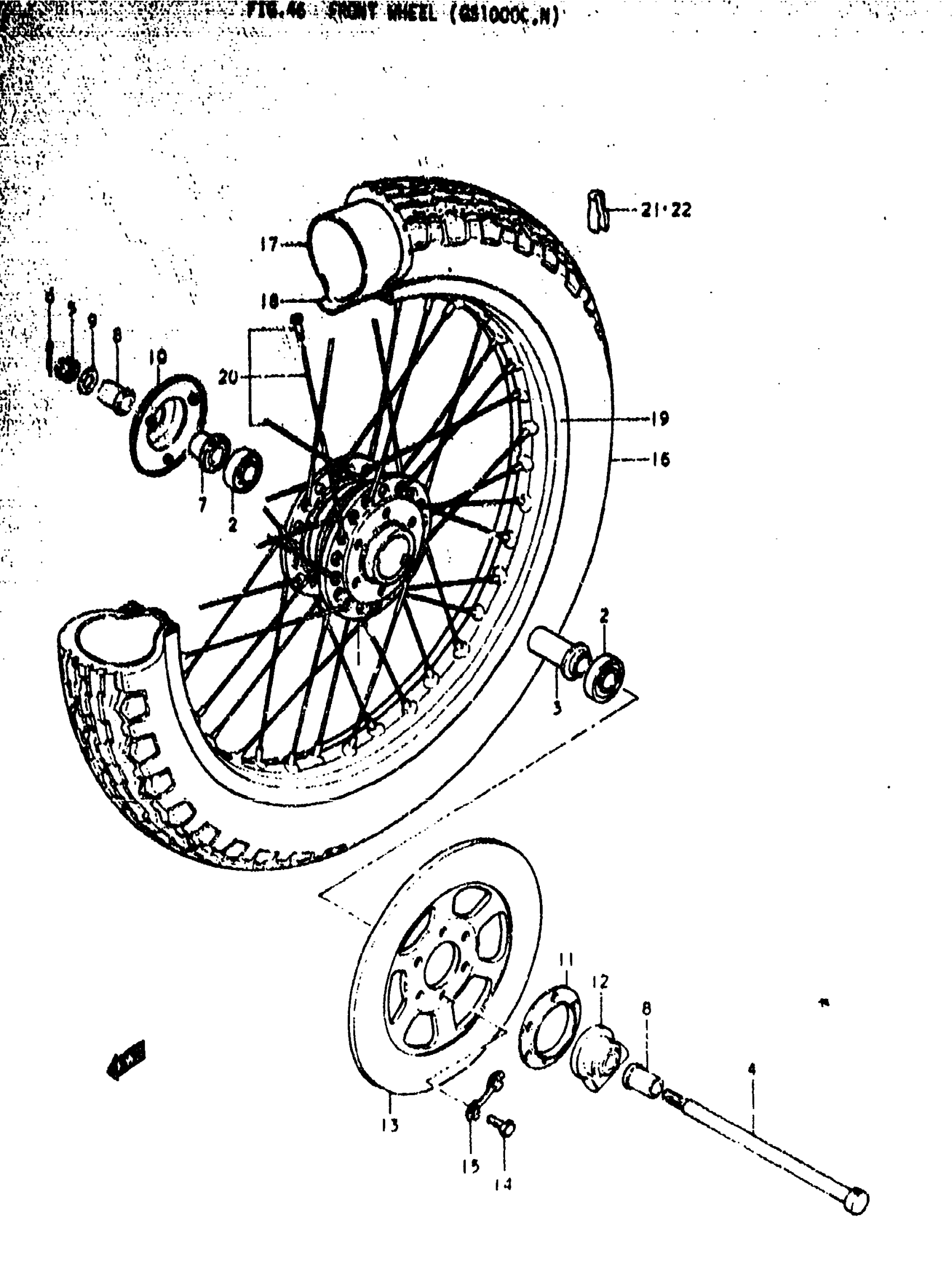

Suzuki GS1000C (1979) FRONT WHEEL (GS1000C Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C,N This part replaces 54111-47001.

54111-47002

Unavailable

2

BEARING | C This part replaces 08123-63020.

08123-6302B

$22.74

2

BEARING | N This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER | C,N

54730-18400

$20.45

4

AXLE, FRONT | C,N

54711-49000

Unavailable

5

NUT | C,N This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN | C,N This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER BEARING | C,N

54740-18402

Unavailable

8

SPACER, AXLE | C,N

54741-49000

Unavailable

9

WASHER | C,N This part replaces 08322-21128.

08322-01127

$1.84

10

COVER, RH | C,N

54871-45000

$8.98

11

DUST SEAL, SPEEDOMETAR GEAR BO | C,NC,N

54871-45010

Unavailable

12

BOX ASSY,SPEEDO | C,N This part replaces 54600-18401.

54600-18403

Unavailable

13

DISK, FRONT BRAKE | C,N

59211-47000

Unavailable

14

BOLT | C,N; 8x28

09100-08140

$2.10

15

WASHER | C,N

09169-08016

$2.41

16

NO DESCRIPTION AVAILABLE | C,N; 3.25-19 This part replaces 55100-49015.

55100-49016

Unavailable

17

TUBE | C,N; 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

18

PROTECTOR, WHEEL INNER TUBE FRONT | C,N; 22x19 This part replaces 55261-15010.

55261-15020

$3.15

19

RIM (1.85X19 ) | C,N; 1.85x19 This part replaces 55311-49000.

55311-15500

Unavailable

20

SPOKE SET | C,N This part replaces 55300-49810.

55320-15500

Unavailable

21

BALANCER WHEEL (15G) | (0~3); 20G This part replaces 55411-11000.

55411-26G00

$7.73

22

BALANCER WHEEL (30G) | C,N; (0~6); 30G This part replaces 55412-11000.

55413-41F00

$7.50
