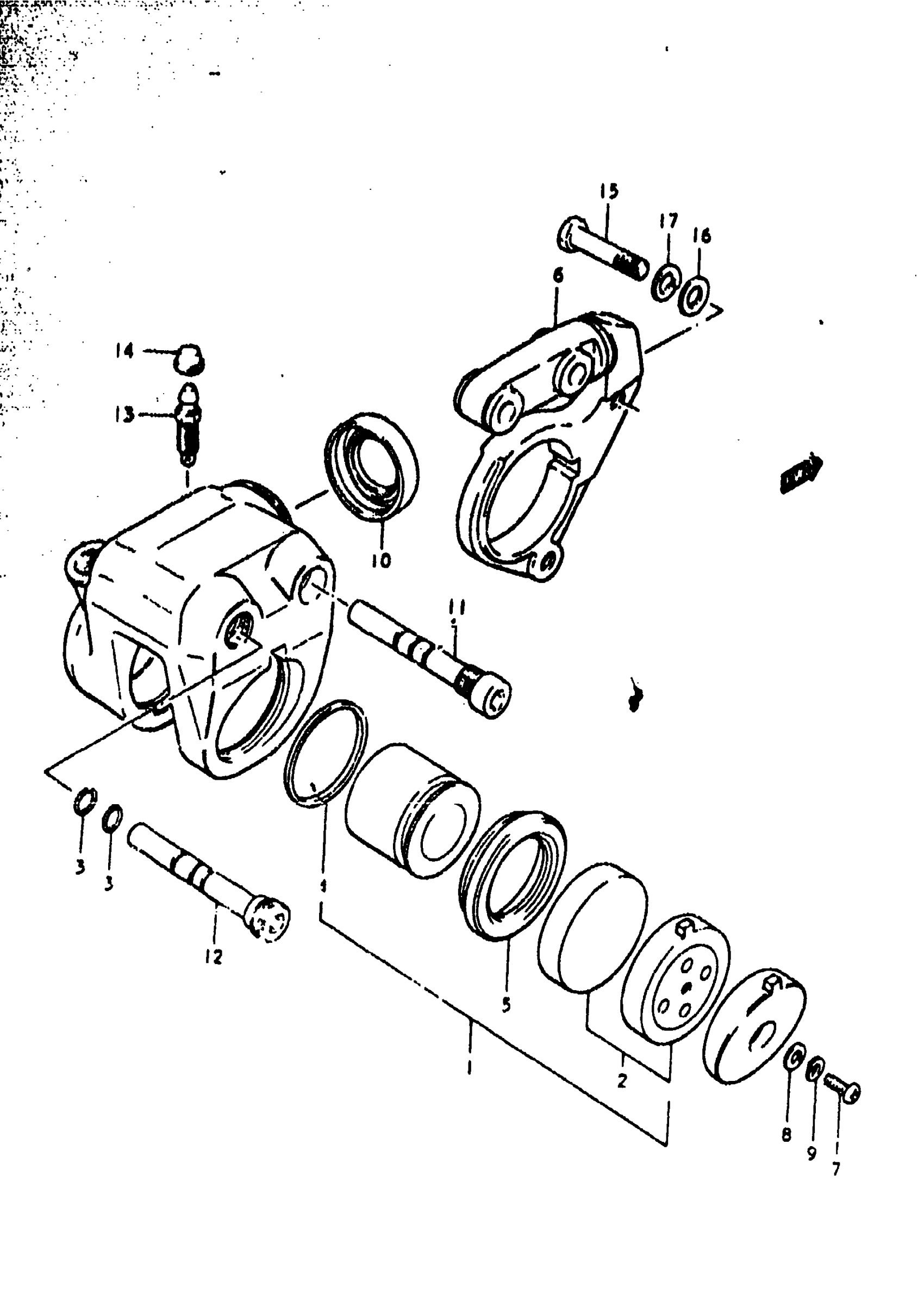

Suzuki GS1000C (1979) FRONT CARIPERS (GS1000EC Diagram

#

Description
Price

0

CALIPERS ASSY, RH | EC,EN This part replaces 59100-47030.

59100-47022

Unavailable

0

CALIPERS ASSY, LH | EC,EN; Includes Item(s) 1 - 14 This part replaces 59300-47030.

59300-47022

Unavailable

1

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 59100-47830.

59100-47831

Unavailable

2

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 59300-47820.

59300-47870

Unavailable

3

O RING | EC,EN

59111-34020

Unavailable

4

PISTON SEAL | EC,EN This part replaces 59107-34020.

59107-34021

Unavailable

5

PISTON BOOTS | EC,EN This part replaces 59108-34020.

59108-34021

Unavailable

6

HOLDER, CARLPARS RH | EC,EN

59150-47020

Unavailable

6

HOLDER, CARLPERS LH | EC,EN

59150-34020

Unavailable

7

SCREW | EC,EN

02112-05107

$1.49

8

WASHER | EC,EN This part replaces 08322-21058.

08322-01057

$2.13

9

LOCK WASHER | EC,EN This part replaces 08321-21058.

08321-0105A

$1.84

10

BOOT, HOLDER | EC,EN

59112-34020

Unavailable

11

AXLE, CARIPERS NO.1 | EC,EN

59305-45020

Unavailable

12

AXLE, CARIPERS NO. 2 | EC,EN

59306-45020

Unavailable

13

BREATHER | EC,EN

59121-34020

$13.35

14

CAP, BLEEDER | EC,EN This part replaces 52474-60020.

55156-66310

$5.17

15

BOLT (10X38) | EC,EN This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER | EC,EN This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | EC,EN This part replaces 08321-21108.

08321-01107

$1.84
