Partiron

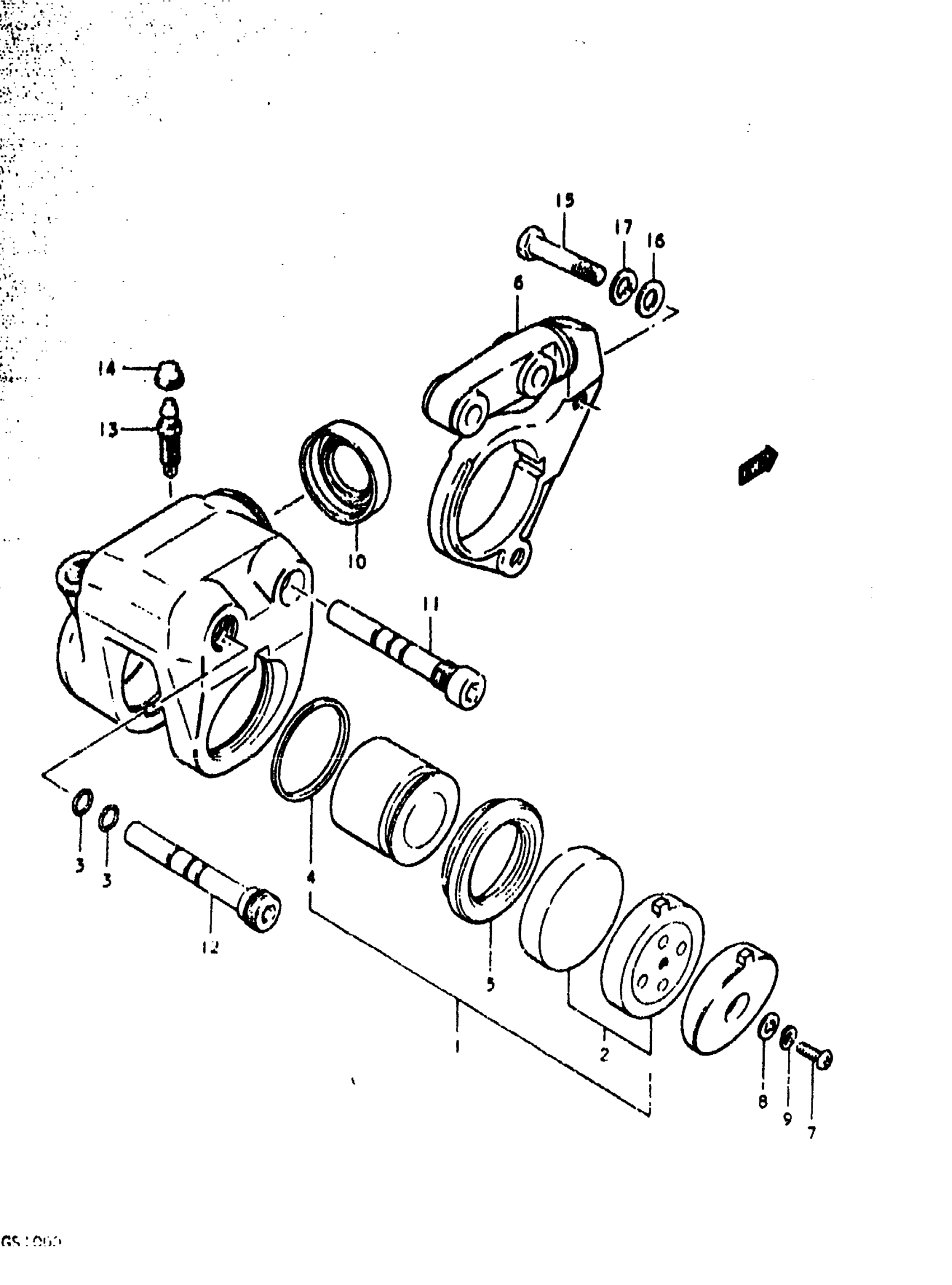

Suzuki GS1000C (1979) FRONT CARIPERS (GS1000C Diagram

#

Description
Price

0

CALIPERS ASSY | C,N; Includes Item(s) 1 - 14 This part replaces 59300-45030.

59300-45022

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N This part replaces 59300-45870.

59300-45871

Unavailable

2

NO DESCRIPTION AVAILABLE | C,N This part replaces 59300-47820.

59300-47870

Unavailable

3

O RING | C,N

59111-34020

Unavailable

4

PISTON SEAL | C,N This part replaces 59307-45020.

59307-45021

Unavailable

5

BOOT, PISTON | C,N

59308-45020

Unavailable

6

HOLDER, CARIPERS | C,N

59150-34020

Unavailable

7

SCREW | C,N

02112-05107

$1.49

8

WASHER | C,N This part replaces 08322-21058.

08322-01057

$2.13

9

LOCK WASHER | C,N This part replaces 08321-21058.

08321-0105A

$1.84

10

BOOT, HOLDER | C,N

59112-34020

Unavailable

11

AXLE, CARLPERS NO. 1 | C,N

59305-45020

Unavailable

12

AXLE, CARLPERS NO. 2 | C,N

59306-45020

Unavailable

13

BREATHER | C,N

59121-34020

$13.35

14

CAP, BLEEDER | C,N This part replaces 52474-60020.

55156-66310

$5.17

15

BOLT (10X38) | C,N This part replaces 09104-10007.

09104-10029

$3.55

16

WASHER | C,N This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | C,N This part replaces 08321-21108.

08321-01107

$1.84
