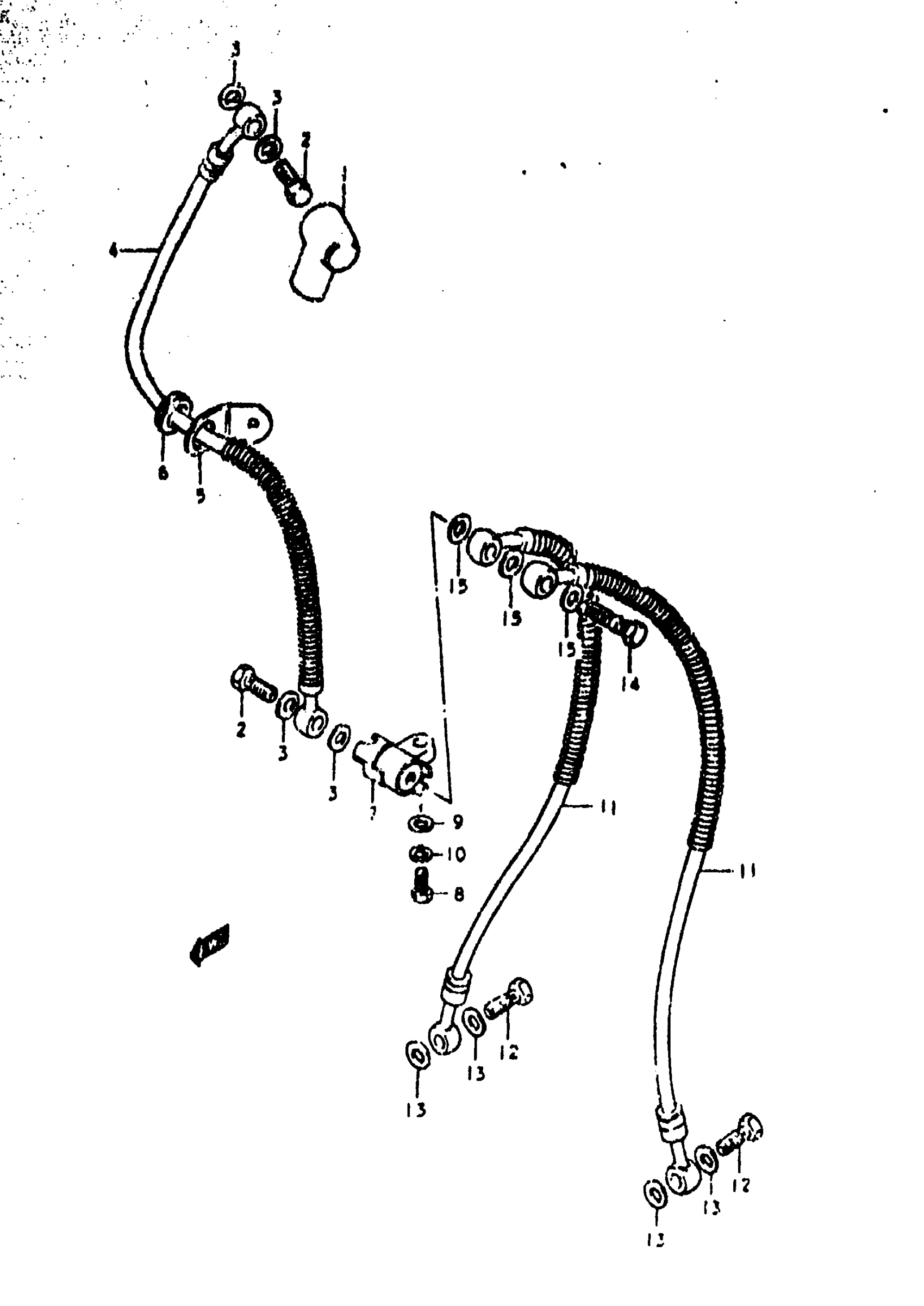

Suzuki GS1000C (1979) FRONT BRAKE HOSE (GS1000EC Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER | EC,EN This part replaces 59711-18400.

59711-49001

$7.51

2

UNION | EC,EN This part replaces 09360-10003.

09360-10017

$3.42

3

WASHER (10X15X1.5) | EC,EN This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1 | EC,EN This part replaces 59480-49000.

59480-49400

Unavailable

5

GUIDE, HOSE | EC,EN

59243-31000

Unavailable

6

GROMMET | EC,EN This part replaces 09308-14007.

09308-14009

Unavailable

7

JOINT, BRAKE HOSE | EC,EN This part replaces 59491-45000.

59491-45001

Unavailable

8

BOLT | EC,EN This part replaces 01107-06208.

01500-06207

$2.28

9

WASHER | EC This part replaces 08322-21068.

08322-01067

$2.13

10

LOCK WASHER | EC,EN This part replaces 08321-21068.

08321-01067

$2.13

11

HOSE BRAKE | EC,EN This part replaces 59240-45000.

59240-49400

Unavailable

12

UNION | EC,EN This part replaces 09360-10003.

09360-10017

$3.42

13

WASHER (10X15X1.5) | EC,EN This part replaces 09161-10005.

09161-10009

$1.84

14

UNION BOLT | EC,EN This part replaces 09360-10005.

09360-10018

$6.80

15

WASHER (10X15X1.5) | EC,EN This part replaces 09161-10005.

09161-10009

$1.84
