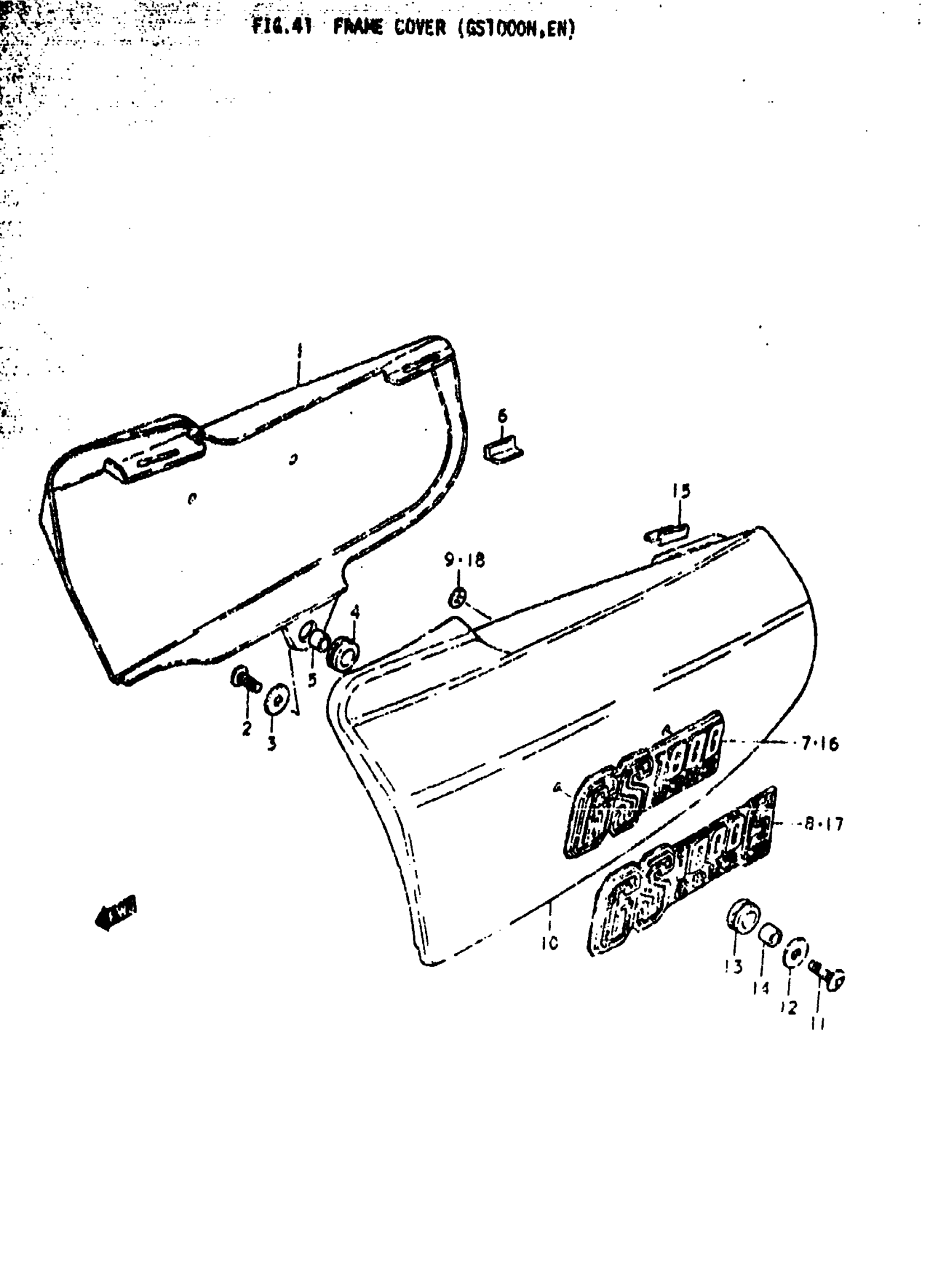

Suzuki GS1000C (1979) FRAME COVER (GS1000M Diagram

#

Description
Price

1

COVER,FRAME,RH | N This part replaces 47111-49000-08D.

47111-49010

Unavailable

1

COVER,FRAME,RH | N This part replaces 47111-49000-05L.

47111-49010

Unavailable

1

COVER,FRAME,RH | EN This part replaces 47111-49000-08E.

47111-49010

Unavailable

2

SCREW | N,EN This part replaces 09125-06015.

02112-0620A

$1.49

3

WASHER (6.5X18X1.6) | N,EN; 6.5x18x1.6 This part replaces 09160-06039.

09160-06109

$1.49

4

CUSHION | N,EN This part replaces 09320-10008.

09320-10075

$1.93

5

SPACER (6.5X10X10) | N,EN; 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

6

CUSHION | N,EN

47117-45000

$2.14

7

EMBLEM | N

68131-49010

Unavailable

8

EMBLEM | EN

68131-49020

Unavailable

9

NUT | N,EN

09148-03002

$2.15

10

COVER,FRAME,LH | N This part replaces 47211-49000-08D.

47211-49010

Unavailable

10

COVER,FRAME,LH | N This part replaces 47211-49000-05L.

47211-49010

Unavailable

10

COVER,FRAME,LH | EN This part replaces 47211-49000-08E.

47211-49010

Unavailable

11

SCREW | N,EN This part replaces 09125-06015.

02112-0620A

$1.49

12

WASHER (6.5X18X1.6) | N,EN; 6.5x18x1.6 This part replaces 09160-06039.

09160-06109

$1.49

13

CUSHION | N,EN This part replaces 09320-10008.

09320-10075

$1.93

14

SPACER (6.5X10X10) | N,EN; 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

15

CUSHION | N,EN

47117-45000

$2.14

16

EMBLEM | N

68131-49010

Unavailable

17

EMBLEM | EN

68131-49020

Unavailable

18

NUT | N,EN

09148-03002

$2.15
