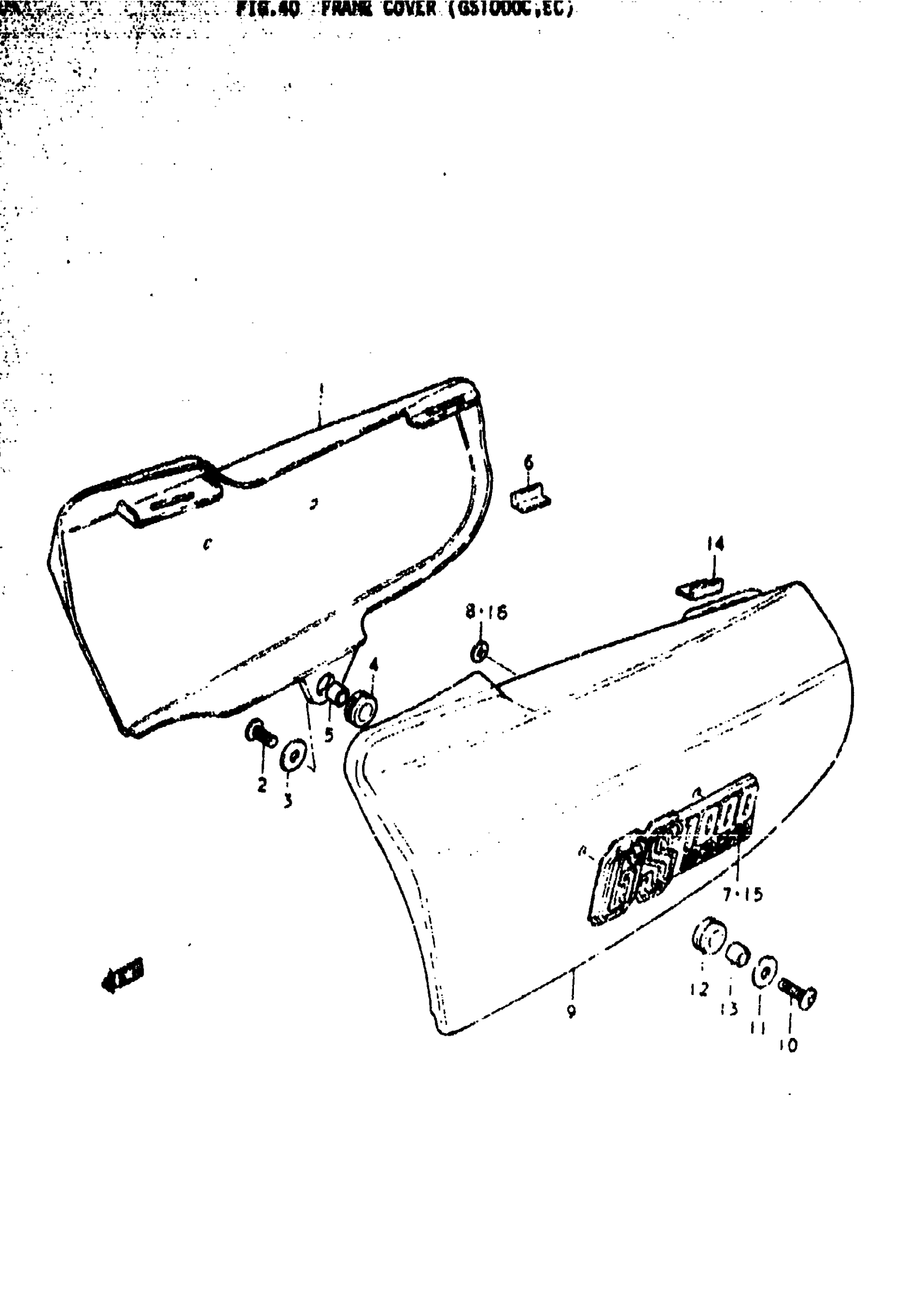

Suzuki GS1000C (1979) FRAME COVER (GS1000C Diagram

#

Description
Price

1

COVER,FRAME,RH | C,EC This part replaces 47111-49000-291.

47111-49010

Unavailable

2

SCREW | C,EC This part replaces 09125-06015.

02112-0620A

$1.49

3

WASHER (6.5X18X1.6) | C,EC; 6.5x18x1.6 This part replaces 09160-06039.

09160-06109

$1.49

4

CUSHION | C,EC This part replaces 09320-10008.

09320-10075

$1.93

5

SPACER (6.5X10X10) | C,EC; 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

6

CUSHION | C,EC

47117-45000

$2.14

7

EMBLEM | C,EC

68131-49010

Unavailable

8

NUT | C,EC

09148-03002

$2.15

9

COVER,FRAME,LH | C,EC This part replaces 47211-49000-291.

47211-49010

Unavailable

10

SCREW | C,EC This part replaces 09125-06015.

02112-0620A

$1.49

11

WASHER (6.5X18X1.6) | C,EC; 6.5x18x1.6 This part replaces 09160-06039.

09160-06109

$1.49

12

CUSHION | C,EC This part replaces 09320-10008.

09320-10075

$1.93

13

SPACER (6.5X10X10) | C,EC This part replaces 09180-06030.

09180-06310

$1.91

14

CUSHION | C,EC

47117-45000

$2.14

15

EMBLEM | C,EC

68131-49010

Unavailable

16

NUT | C,EC

09148-03002

$2.15
