1979 Suzuki GS1000C Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1979 Suzuki GS1000C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

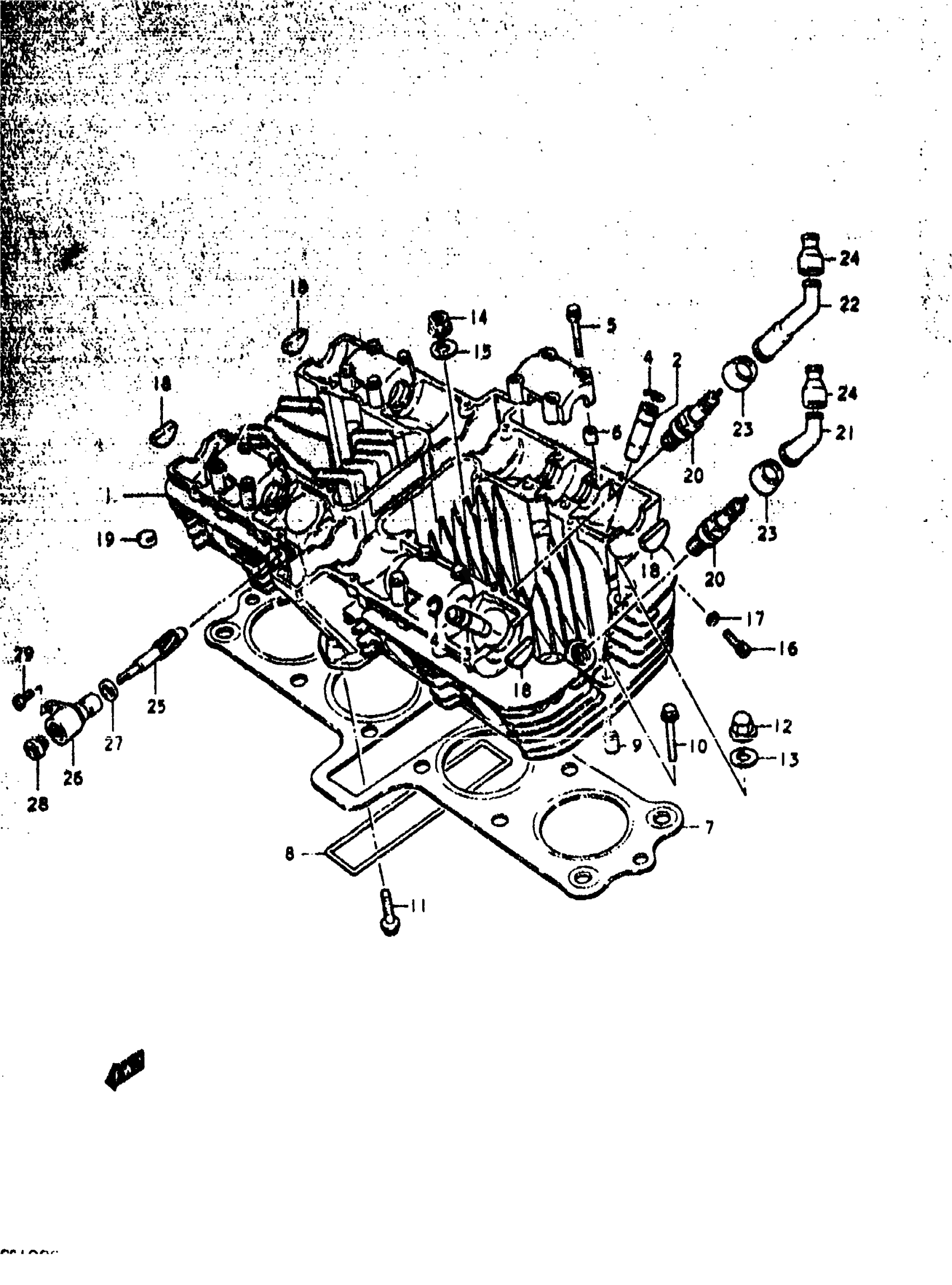

1979 Suzuki GS1000C Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | C&EC This part replaces 11100-49810.

11100-49820

1
Out of stock

1

CYLINDER HEAD SET | N&EN; Includes Item(s) 2 - 6

11100-49820

1
Out of stock

3

GUIDE, EXHAUST VALVE | C&EC This part replaces 11116-45721.

11116-45740

4
Out of stock

3

GUIDE, EXHAUST VALVE | N&EN This part replaces 11116-45722.

11116-45740

4
Out of stock

4

8

$2.69

In stock

5

BOLT (6X39) | C&EC,N&EN

09103-06026

16
Out of stock

6

PIN | C&EC,N&EN

09206-08001

8
Out of stock

7

GASKET | C&EC This part replaces 11141-49000.

11141-49410

1
Out of stock

7

GASKET | N&EN This part replaces 11141-49002.

11141-49410

1
Out of stock

8

O RING | C&EC,N&EN

09280-99003

1
Out of stock

9

PIN | C&EC,N&EN

04211-11189

2

$1.94

In stock

11

1

$2.84

In stock

12

4

$6.13

In stock

12

NUT | N&EN

09159-10026

4

$6.13

In stock

13

GASKET | C&EC,N&EN

09168-10017

4

$2.94

In stock

14

NUT, WHEEL SET | C&EC This part replaces 09159-10022.

08316-10107

8
Out of stock

14

NUT, WHEEL SET | N&EN This part replaces 08316-16108.

08316-10107

8
Out of stock

15

WASHER | C&EC,N&EN 10.5x22x2.3

09160-10039

8
Out of stock

17

GASKET | C&EC,N&EN

09168-05010

4
Out of stock

18

4

$5.98

In stock

20

4

$2.98

In stock

20

SPARK PLUG W24E | C&EC,N&EN; ND, W24ES This part replaces 09482-00092.

09482-00247-111

4
Out of stock

21

CAP, SPARK PLUG (S) | C&EC,N&EN

33510-43010

2
Out of stock

22

1

$25.62

In stock

23

4

$4.47

In stock

24

SEAL,HIGH TENSION CORD (SIDE) | C&EC,N&EN This part replaces 33542-98000.

33542-38B00

4
Out of stock

26

SLEEVE | C&EC,N&EN

26441-49000

1

$38.30

In stock

27

SLAL BAND | C&EC,N&EN

26451-45000

1
Out of stock

28

1

$8.21

In stock

29

SCREW | C&EC,N&EN

09128-05101

1
Out of stock
