Partiron

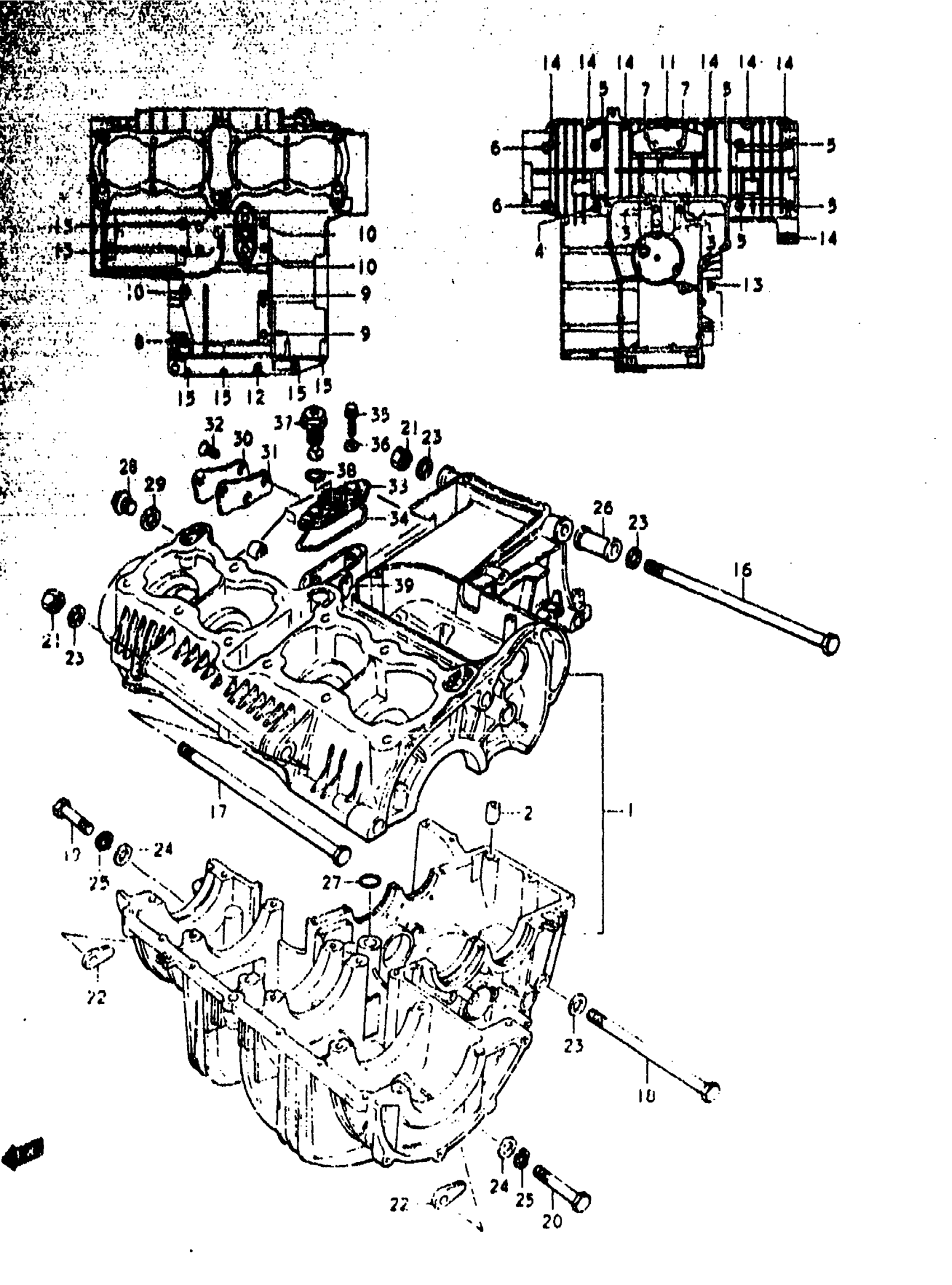

Suzuki GS1000C (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | C&EC,N&EN; Includes Item(s) 2 - 15

11300-49810

Unavailable

2

PIN | C&EC,N&EN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) | C&EC,N&EN; 8x125 This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT (8X100) | C&EC,N&EN; 8x100 This part replaces 09103-08009.

09103-08070

$5.09

5

BOLT | C&EC,N&EN This part replaces 01517-08908.

01550-08907

$5.63

6

BOLT | C&EC,N&EN This part replaces 01517-08658.

01550-08657

$5.10

7

BOLT | C&EC,N&EN This part replaces 01517-08608.

01550-08607

$3.44

8

BOLT, LH | C&EC,N&EN This part replaces 01517-08508.

01550-08507

$3.25

9

BOLT | C&EC,N&EN This part replaces 01517-06858.

01550-06857

$3.36

10

BOLT 6X75 | C&EC,N&EN This part replaces 01517-06758.

01550-06757

$3.36

11

BOLT (6X50) | C&EC,N&EN This part replaces 01517-06508.

01550-06507

$3.70

12

BOLT (CHROME) | C&EC,N&EN This part replaces 01517-06458.

01550-06457

$2.73

13

BOLT | C&EC,N&EN This part replaces 01517-06408.

01550-06407

$2.73

14

BOLT | C&EC,N&EN This part replaces 01517-06358.

01550-06357

$2.80

15

BOLT | C&EC,N&EN This part replaces 01517-06308.

01550-06307

$2.73

16

BOLT, ENGINE MOUNTING | C&EC,N&EN; 10x265

09100-10110

Unavailable

17

ENGINE MOUNT BO | C&EC,N&EN; 10x250 This part replaces 09101-10010.

09101-10010-XC0

Unavailable

18

BOLT, ENGINE MOUNTING | C&EC,N&EN; 10x165

09100-10078

$13.80

19

BOLT | C&EC,N&EN This part replaces 01107-10608.

01500-1060A

$4.04

20

BOLT | C&EC,N&EN This part replaces 01107-10508.

01500-1050A

$4.12

21

NUT | C&EC,N&EN

09159-10011

$2.95

22

NUT | C&EC,N&EN

09159-10020

$5.63

23

WASHER | C&EC,N&EN This part replaces 08322-11108.

08322-01107

$1.88

24

WASHER | C&EC,N&EN; 10x15x1.2

09160-10005

$1.86

25

LOCK WASHER | C&EC,N&EN

08321-11108

Unavailable

26

SPACER (L:65) | C&EC,N&EN This part replaces 11610-49000.

11610-49300

$20.33

27

O RING, OIL GALLERY | C&EC,N&EN

09280-13001

$2.51

28

PLUG | C&EC,N&EN This part replaces 09247-14012.

09247-14026

$3.38

29

GASKET | C&EC,N&EN

09168-14004

$1.69

30

CAP, OIL GALLERY | C&EC,N&EN

11394-45000

Unavailable

31

GASKET,OIL GALL | C&EC,N&EN This part replaces 11497-45000.

11497-45000-H17

Unavailable

32

SCREW | C&EC,N&EN This part replaces 02122-06168.

02122-06167

$1.45

33

HOUSING, OIL PRESSURE SWITCH | C&EC,N&EN

16445-45000

Unavailable

34

O RING | C&EC,N&EN

16448-45000

$8.37

35

BOLT | C&EC,N&EN This part replaces 01517-06258.

01550-06257

$2.31

36

GASKET (5.8X13X1.2) | C&EC,N&EN This part replaces 09168-06009.

09168-06023

$2.01

37

SWITCH ASSY,OIL | C&EC,N&EN This part replaces 37820-45050.

37820-45061

$35.73

38

O RING | C&EC,N&EN

09280-19001

$1.38

39

GROMMET | C&EC,N&EN This part replaces 31271-45000.

31271-45001

Unavailable
