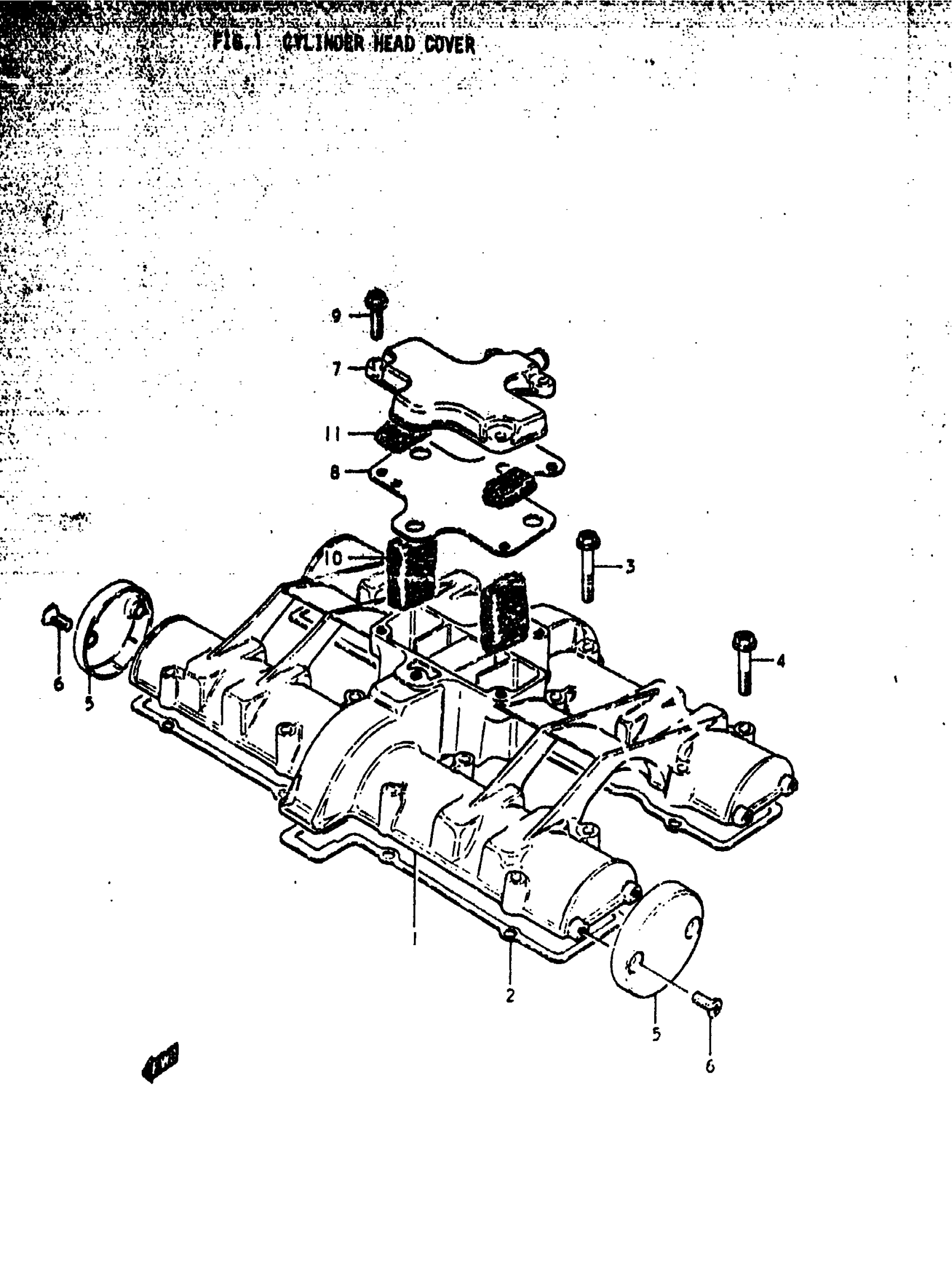

Suzuki GS1000C (1979) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD | C&EC,N&EN This part replaces 11171-49000.

11171-49002

Unavailable

2

GASKET,CYL HD C | C&EC,N&EN This part replaces 11173-49001.

11173-49004-H17

Unavailable

3

BOLT | C&EC,N&EN This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT | C&EC,N&EN This part replaces 01517-06358.

01550-06357

$2.77

5

CAP, CYLINDER HEAD COVER | C&EC,N&EN

11174-49000

Unavailable

6

SCREW | C&EC,N&EN This part replaces 02132-05128.

02122-05127

$1.93

7

COVER, BREATHER | C&EC,N&EN This part replaces 11176-47000.

11176-47042

Unavailable

8

BREATHER CVR GA | C&EC,N&EN This part replaces 11177-47001.

11177-47001-H17

$14.97

9

BOLT | C&EC,N&EN This part replaces 01517-06258.

01550-06257

$2.30

10

SEPARATOR,OIL B | C&EC,N&EN; 34x110 This part replaces 11186-45000.

11186-45001

Unavailable

11

SEPARATOR,OIL B | C&EC,N&EN; 35x68 This part replaces 11187-45000.

11187-45001

Unavailable
