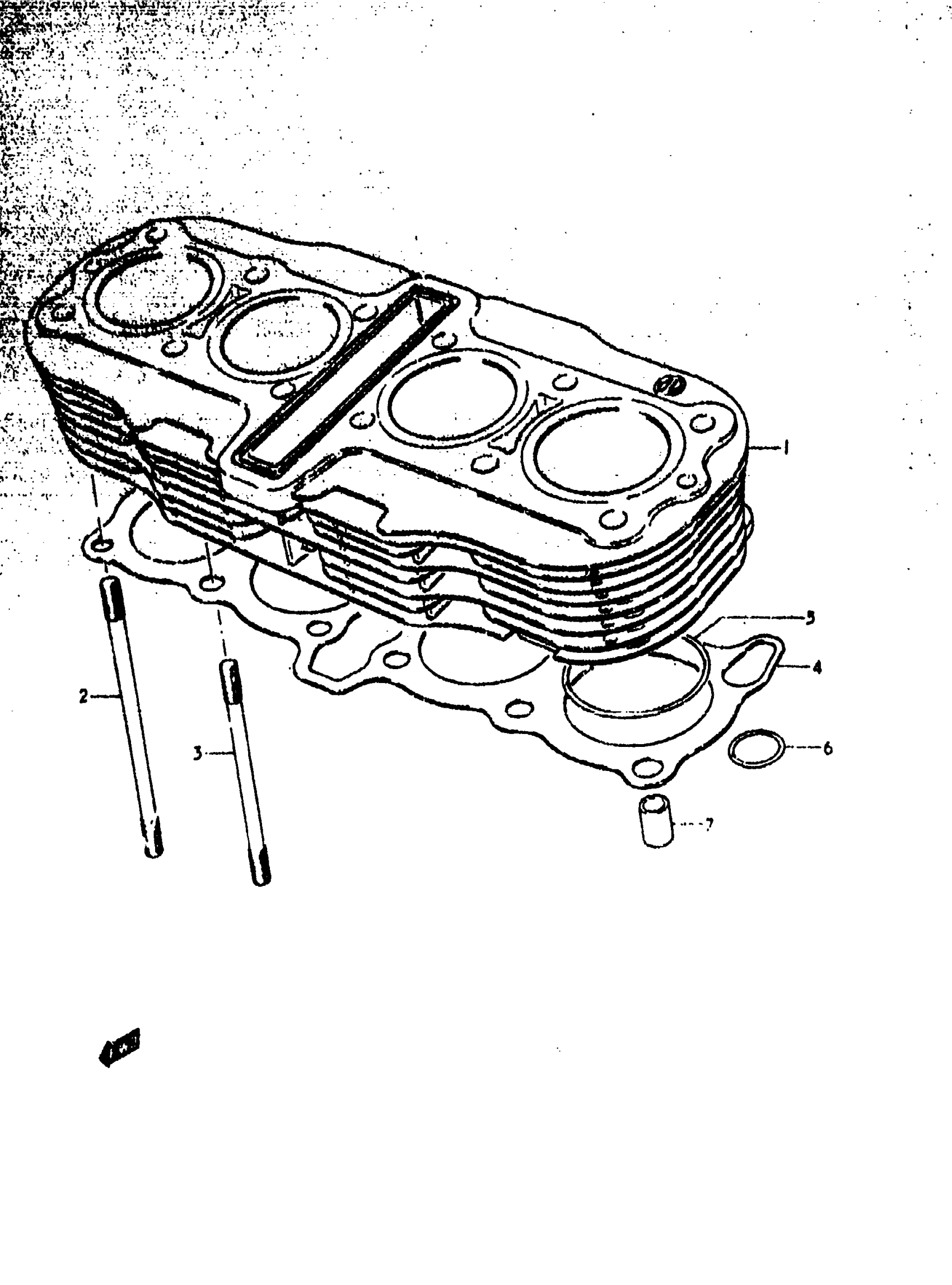

Suzuki GS1000C (1979) CYLINDER Diagram

#

Description

Price

1

CYLINDER | C&EC This part replaces 11210-49000.

11210-49003

Unavailable

1

CYLINDER | N&EN This part replaces 11210-49001.

11210-49003

Unavailable

2

STUD BOLT | C&EC This part replaces 09108-10019.

09108-10027

$6.58

2

STUD BOLT | N&EN

09108-10027

$6.58

3

STUD BOLT (L:168) | C&EC This part replaces 09108-10020.

09108-10112

$12.49

3

STUD BOLT (L:168) | N&EN This part replaces 09108-10028.

09108-10112

$12.49

4

GASKET,CYLINDER | C&EC,N&EN This part replaces 11241-49000.

11241-49000-H17

Unavailable

5

O RING | C&EC,N&EN

09280-74002

$5.30

6

O RING | C&EC,N&EN

09280-21007

Unavailable

7

PIN | C&EC,N&EN This part replaces 09206-13001.

04211-13189

$2.19
