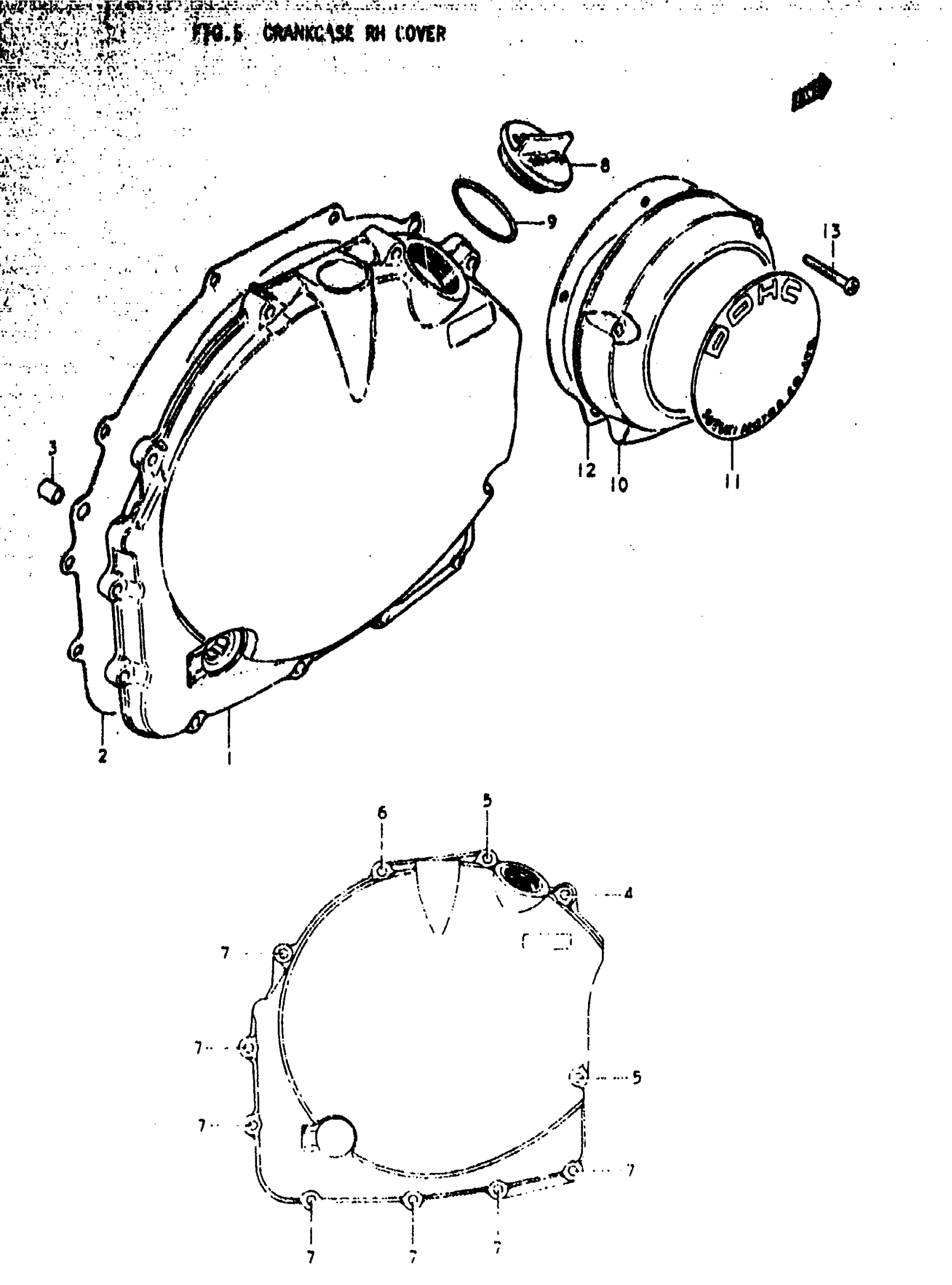

Suzuki GS1000C (1979) CRANKCASE RH COVER Diagram

#

Description
Price

1

COVER, CLUTCH | C&EC,N&EN

11340-49000

Unavailable

2

GASKET,CL COVER | C&EC,N&EN This part replaces 11482-49000.

11482-49000-H17

Unavailable

3

PIN | C&EC,N&EN

04211-09129

$1.65

4

SCREW | C&EC,N&EN This part replaces 02112-06358.

02112-06357

$1.78

5

SCREW | C&EC,N&EN This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | C&EC,N&EN This part replaces 02112-06258.

02112-06257

$1.78

7

SCREW | C&EC,N&EN This part replaces 02112-06208.

02112-06207

$1.78

8

CAP, OIL FILLER | C&EC,N&EN This part replaces 09259-30001.

09200-30810

$10.15

9

O RING | C&EC,N&EN

09280-32005

$1.99

10

COVER, CONTACT BREAKER | C&EC,N&EN This part replaces 11381-49000.

11381-49002

Unavailable

11

EMBLEM | C&EC This part replaces 68235-45000.

68235-45200

Unavailable

11

MBLEM 1 | &EN

68235-45100 E

Unavailable

12

GASKET | C&EC,N&EN

11491-45000

Unavailable

13

SCREW | C&EC,N&EN This part replaces 02112-05308.

02112-0530A

$2.05
