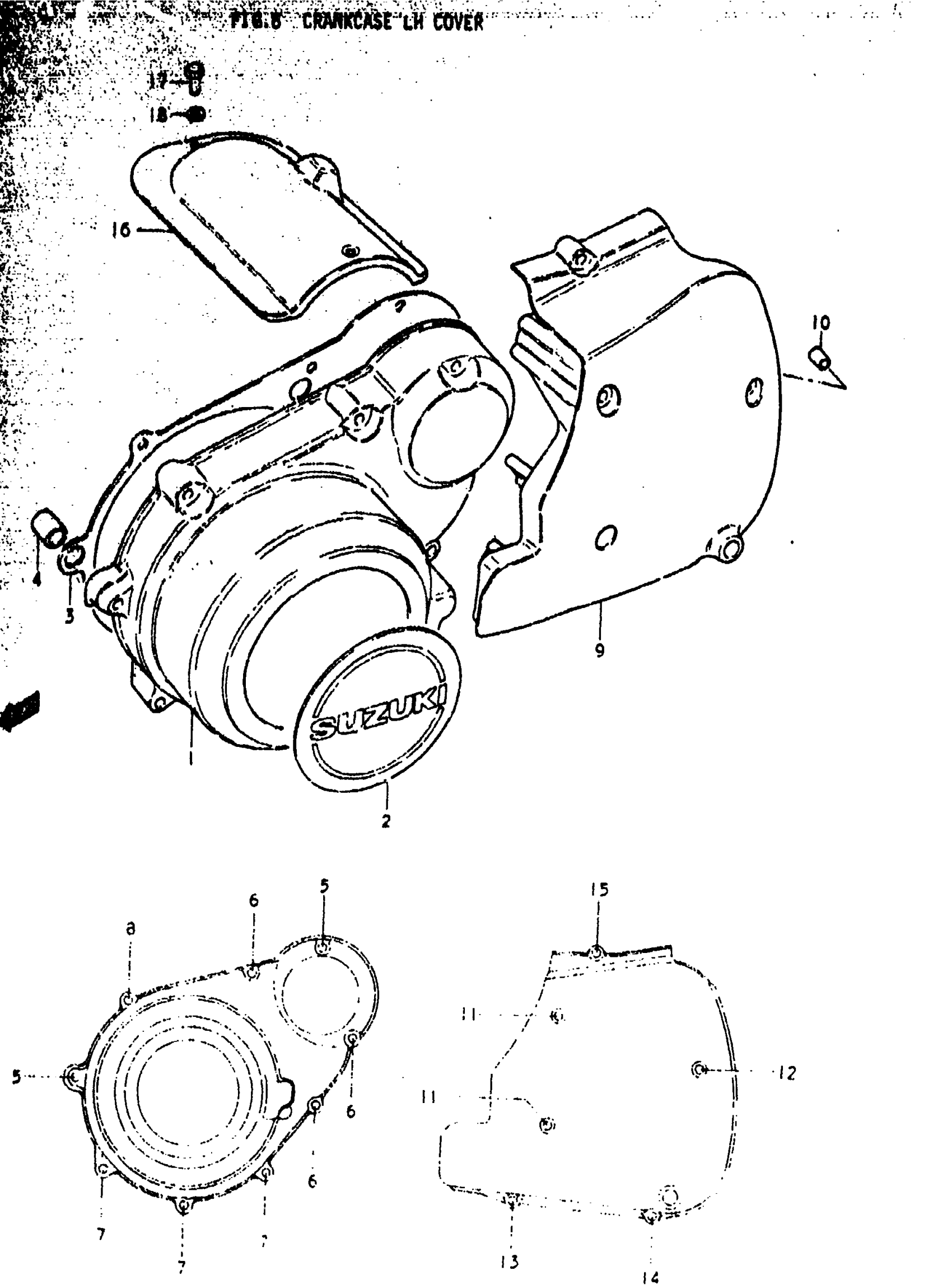

Suzuki GS1000C (1979) CRANKCASE LH COVER Diagram

COVER, GENERATOR | C&EC,N&EN This part replaces 11351-49000.

11351-49002

Unavailable

EMBLEM | C&EC This part replaces 68233-45000.

68233-45200

$18.50

EMBLEM | N&EN This part replaces 68233-45100.

68233-45200

$18.50

GASKET,MAG COVE | C&EC,N&EN This part replaces 11483-45000.

11483-45000-H17

$11.75

PIN | C&EC,N&EN This part replaces 09206-13001.

04211-13189

$2.19

SCREW (6X45) | C&EC,N&EN This part replaces 02112-06458.

02112-06457

$1.78

SCREW (6X40) | C&EC,N&EN This part replaces 02112-06408.

02112-06407

$1.78

SCREW | C&EC,N&EN This part replaces 02112-06358.

02112-06357

$1.78

SCREW | C&EC,N&EN

02112-06307

$1.97

COVER, ENGINE SPROCKET | C&EC,N&EN

11360-49000

Unavailable

PIN | C&EC,N&EN

04211-09129

$1.65

SCREW | C&EC,N&EN; L:100

09125-06003

$3.50

SCREW | C&EC,N&EN This part replaces 02112-06858.

02112-06857

$2.62

SCREW | C&EC,N&EN This part replaces 02112-06708.

02112-06707

$2.53

SCREW | C&EC,N&EN

02112-06557

$2.53

SCREW | C&EC,N&EN

02112-06307

$1.97

COVER, STARTER MOTOR | C&EC This part replaces 11382-49000.

11382-49002

$46.38

COVER, STARTER MOTOR | N&EN This part replaces 11382-49001.

11382-49002

$46.38

BOLT | C&EC,N&EN This part replaces 01104-05108.

01500-0510B

$1.80

WASHER | C&EC,N&EN This part replaces 08322-21058.

08322-01057

$2.13
