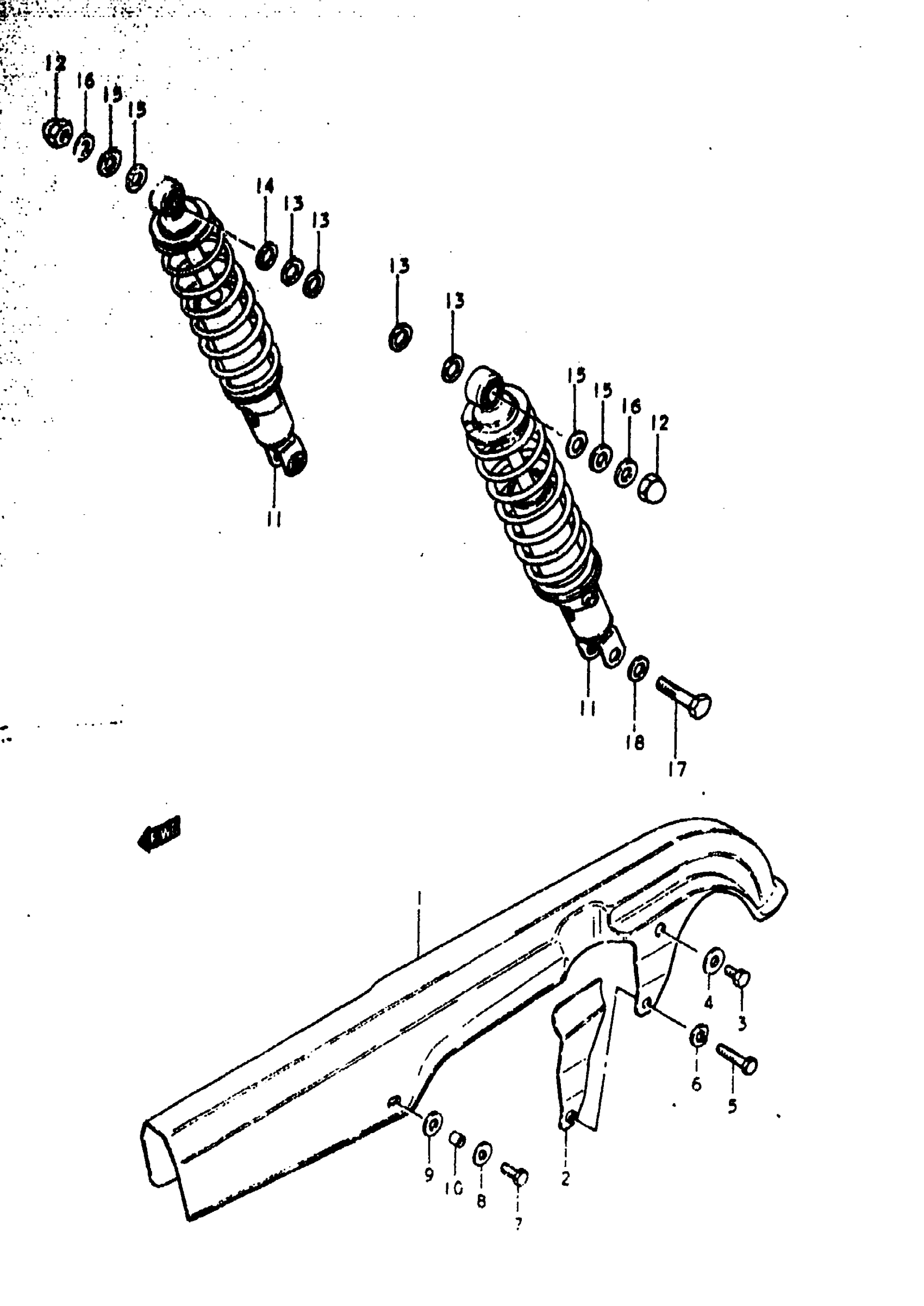

Suzuki GS1000C (1979) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description
Price

1

CHAIN CASE (BLACK) | C&EC,N&EN This part replaces 61311-49000-019.

61311-49002-019

Unavailable

2

REINFORCEMENT, CHAIN CASE | C&EC,N&EN

61381-45000

Unavailable

3

BOLT | C&EC,N&EN; 6x8

09100-06011

$1.67

4

WASHER | C&EC,N&EN

09169-06010

$2.60

5

BOLT | C&EC,N&EN This part replaces 01107-06258.

01500-06257

$1.97

6

LOCK WASHER | C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

7

BOLT | C&EC,N&EN This part replaces 01107-06108.

01500-06107

$2.06

8

WASHER (6.5X18X1.0) | C&EC,N&EN; 6.5x18x1

09160-06028

$1.49

9

FUEL TANK UPPER WASHER | C&EC,N&EN This part replaces 09320-08005.

09161-08006

$2.07

10

SPACER | C&EC,N&EN; 6.1x8x5.2 This part replaces 09180-06032.

09180-06246

$2.12

11

SHOCK ABSORBER, REAR | C&EC,N&EN

62100-49010

Unavailable

12

NUT | C&EC,N&EN This part replaces 08313-11108.

08313-10107

$2.50

13

WASHER | C&EC,N&EN This part replaces 08322-11128.

08322-01127

$1.84

14

WASHER, FRONT AXLE | C&EC,N&EN; 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

$3.29

15

WASHER, LOWER (10.5X24X2.3) | C&EC,N&EN; 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

16

WASHER | C&EC,N&EN; 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

$2.62

17

BOLT | C&EC,N&EN

09104-10002

$3.55

18

WASHER | C&EC,N&EN This part replaces 08322-11108.

08322-01107

$2.15
