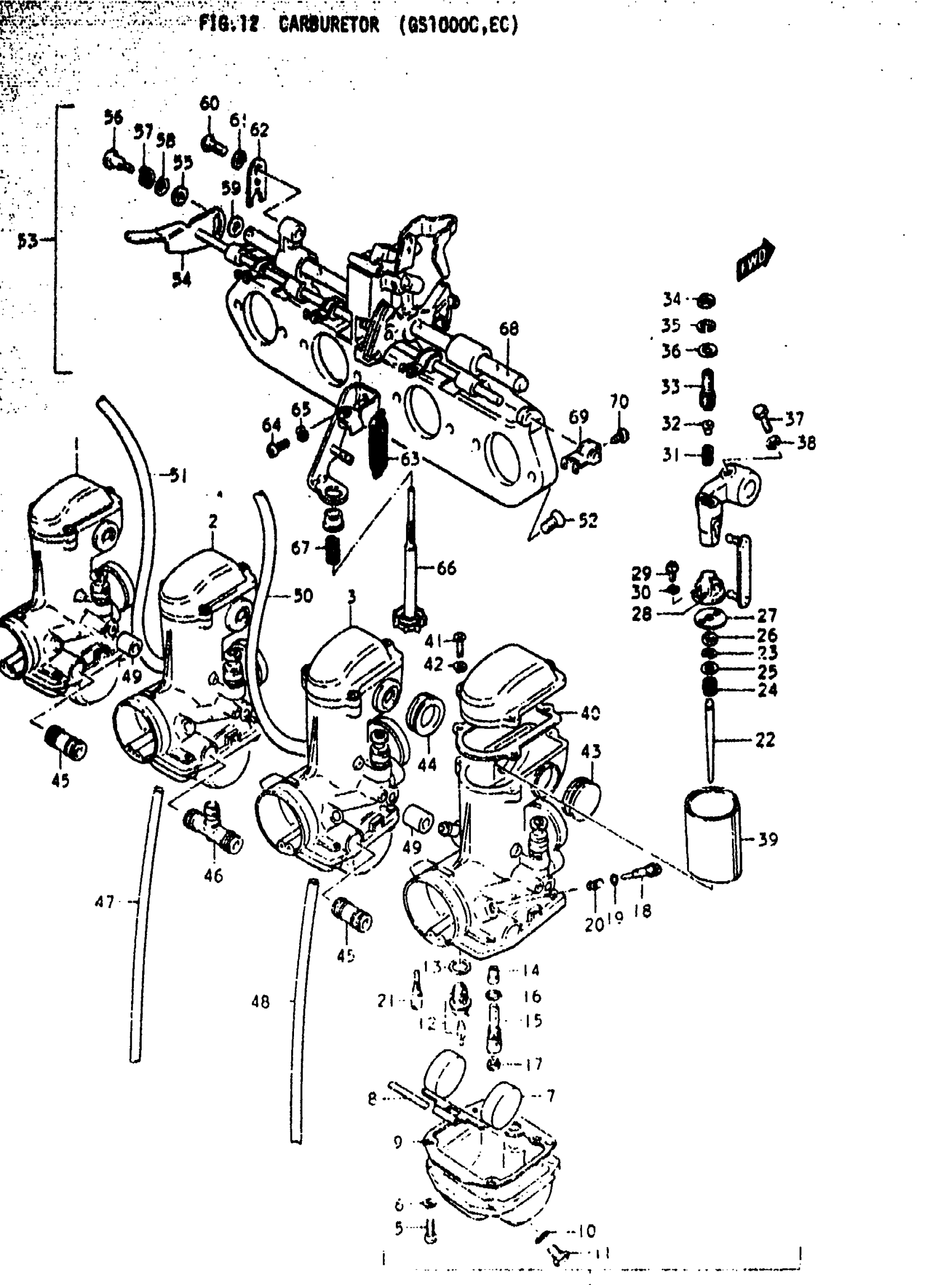

Suzuki GS1000C (1979) CARBURETOR (GS1000C Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 70

13200-49000

Unavailable

1

CARBURETOR ASSY, NO.1 | LH

13201-49000

Unavailable

2

CARBURETOR ASSY, NO.2 | CENTER LH

13202-49000

Unavailable

3

CARBURETOR ASSY, NO.3 | CENTER RH

13203-49000

Unavailable

4

CARBURETOR ASSY, NO.4 | RH

13204-49000

Unavailable

5

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

FLOAT

13252-43010

Unavailable

8

.PIN, FLOAT

13254-01010

$3.62

9

GASKET This part replaces 13251-43011.

13251-43010

Unavailable

10

.O RING This part replaces 13246-43010.

13246-43011

$4.34

11

SCREW

13247-45010

Unavailable

12

VALVE, NEEDLE This part replaces 13370-45010.

13370-18111

$52.32

13

GASKET

13392-58600

$1.82

14

JET, NEEDLE | 0-2

09494-00224

Unavailable

15

PIPE, BREADER

13385-45010

Unavailable

16

.O RING This part replaces 13246-43010.

13246-43011

$4.34

17

JET, MAIN | #95

09491-95005

$11.55

18

ADJUSTER This part replaces 13269-45010.

13269-49020

$11.83

19

O RING

13295-33010

$4.48

20

SPRING

13268-01010

$5.28

21

JET, PILOT | #15

09492-15005

$17.58

22

NEEDLE, JET | 5DL36-5

13383-45030

Unavailable

23

CLIP, NEEDLE

13394-10010

$5.45

24

SPRING

13388-47010

$6.91

25

PLATE

13382-47010

$3.56

26

RING

13387-47010

$7.22

27

PLATE

13581-47010

Unavailable

28

BRACKET

13398-45010

Unavailable

29

SCREW This part replaces 02111-03148.

02112-0316B

$2.35

30

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

31

SPRING

13543-45010

Unavailable

32

PIN

13544-43010

Unavailable

33

ADJUSTER

13548-45010

Unavailable

34

NUT

08310-11055

Unavailable

35

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

36

WASHER This part replaces 08322-21058.

08322-01057

$2.13

37

BOLT This part replaces 01104-05168.

01500-0516B

$2.15

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

39

VALVE, THROTTLE | CA:1.5

13551-45030

Unavailable

40

GASKET

13266-43010

$8.20

41

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

42

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

43

CAP

13678-43010

Unavailable

44

SEAL

13556-45010

Unavailable

45

NIPPLE

13685-45030

Unavailable

46

NIPPLE

13685-45040

Unavailable

47

HOSE (3.5X6.5X6OO) | L:545 This part replaces 13683-45010.

13683-45070

$11.80

48

HOSE (3.5X6.5X6OO) | L:470 This part replaces 13683-45010.

13683-45070

$11.80

49

HOSE(6X10X600) | 6x10x16 This part replaces 13683-45030.

09352-60104-600

$8.99

50

HOSE(4.5X8.5X60 | 4.5x8x200 This part replaces 13683-45040.

09355-45001-600

$9.48

51

HOSE(4.5X8.5X60 | 5x8x450 This part replaces 13683-45050.

09355-45001-600

$9.48

52

SCREW (6X14) This part replaces 02122-06148.

09126-06007

$2.03

53

CONTROL ASSY

13210-49000

Unavailable

54

SHAFT, STARTER

13410-49000

Unavailable

55

WASHER

13432-33110

$4.43

56

SCREW

13433-33110

Unavailable

57

SPRING

13426-43010

Unavailable

58

WASHER

13615-43010

$3.25

59

WASHER

13615-45010

$3.25

60

SCREW

02112-05148

Unavailable

61

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

62

PLATE

13557-33110

Unavailable

63

SPRING, THROTTLE RETURN This part replaces 13573-49000.

13573-45010

Unavailable

64

SCREW

02112-05148

Unavailable

65

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

66

ADJUSTER, THROTTLE STOP

13267-49000

Unavailable

67

SPRING

13268-33110

Unavailable

68

SHAFT, THROTTLE

13550-43010

Unavailable

69

LEVER, STARTER

13422-43010

Unavailable

70

SCREW

13605-31210

$7.37
