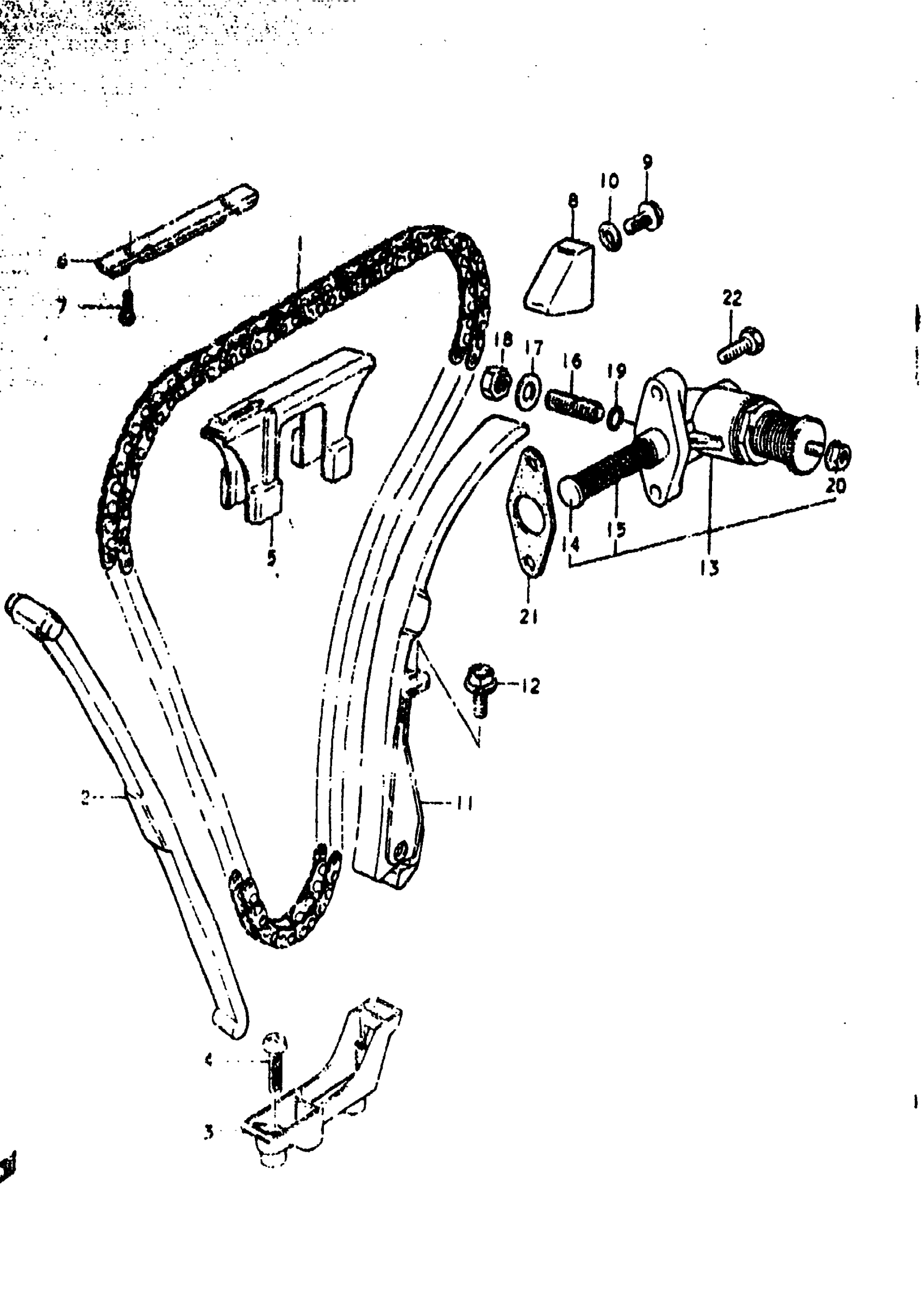

Suzuki GS1000C (1979) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L) | C&EC,N&EN; 1201 This part replaces 12760-49010.

12760-45040

$149.60

2

GUIDE,CAM CHAIN | C&EC,N&EN This part replaces 12771-45040.

12771-45053

$40.00

3

HOLDER, CAM CHAIN GUIDE NO. 1 | C&EC,N&EN

12776-49000

Unavailable

4

SCREW | C&EC,N&EN This part replaces 02112-06208.

02112-06207

$1.78

5

GUIDE, CAM CHAIN NO. 2 | C&EC,N&EN

12781-47042

Unavailable

6

GUIDE, CAM CHAIN NO. 3 | C&EC,N&EN

12782-47040

Unavailable

7

SCREW | C&EC,N&EN This part replaces 02112-05128.

02112-05127

$1.97

8

GUIDE, CAM CHAIN NO. 4 | C&EC,N&EN

12791-45040

$14.20

9

BOLT | C&EC,N&EN This part replaces 01517-06128.

01550-06127

$2.30

10

GASKET (5.8X13X1.2) | C&EC,N&EN This part replaces 09168-06009.

09168-06023

$2.35

11

TENSIONER, CAM CHAIN | C&EC,N&EN This part replaces 12810-49050.

12810-49051

Unavailable

11

TENSIONER, CAM CHAIN | N&EN

12810-49051

Unavailable

12

BOLT M8X16 | C&EC,N&EN This part replaces 01517-08168.

01550-08167

$2.85

13

ADJUSTER ASSY,T | C&EC,N&EN; Includes Item(s) 14 - 20 This part replaces 12830-47001.

12830-0930V

Unavailable

14

PUSH ROD | C&EC,N&EN

12833-47001

Unavailable

15

SPRING | C&EC,N&EN

09440-12017

$2.45

16

SCREW | C&EC,N&EN

12838-45001

$8.42

17

WASHER | C&EC,N&EN This part replaces 08322-11088.

08322-01087

$2.13

18

NUT | C&EC,N&EN This part replaces 08310-12088.

08310-00087

$2.13

19

.O RING (D:1.9,ID:5.7) | C&EC,N&EN This part replaces 09280-06003.

09280-06005

$1.49

20

NUT | C&EC,N&EN This part replaces 09159-06017.

08319-31067

$2.03

21

GKT,TENSIONER A | C&EC,N&EN This part replaces 12837-47000.

12837-47010

$4.22

22

BOLT, STARTING MOTOR | C&EC,N&EN This part replaces 09128-06012.

09103-06212

$2.47
