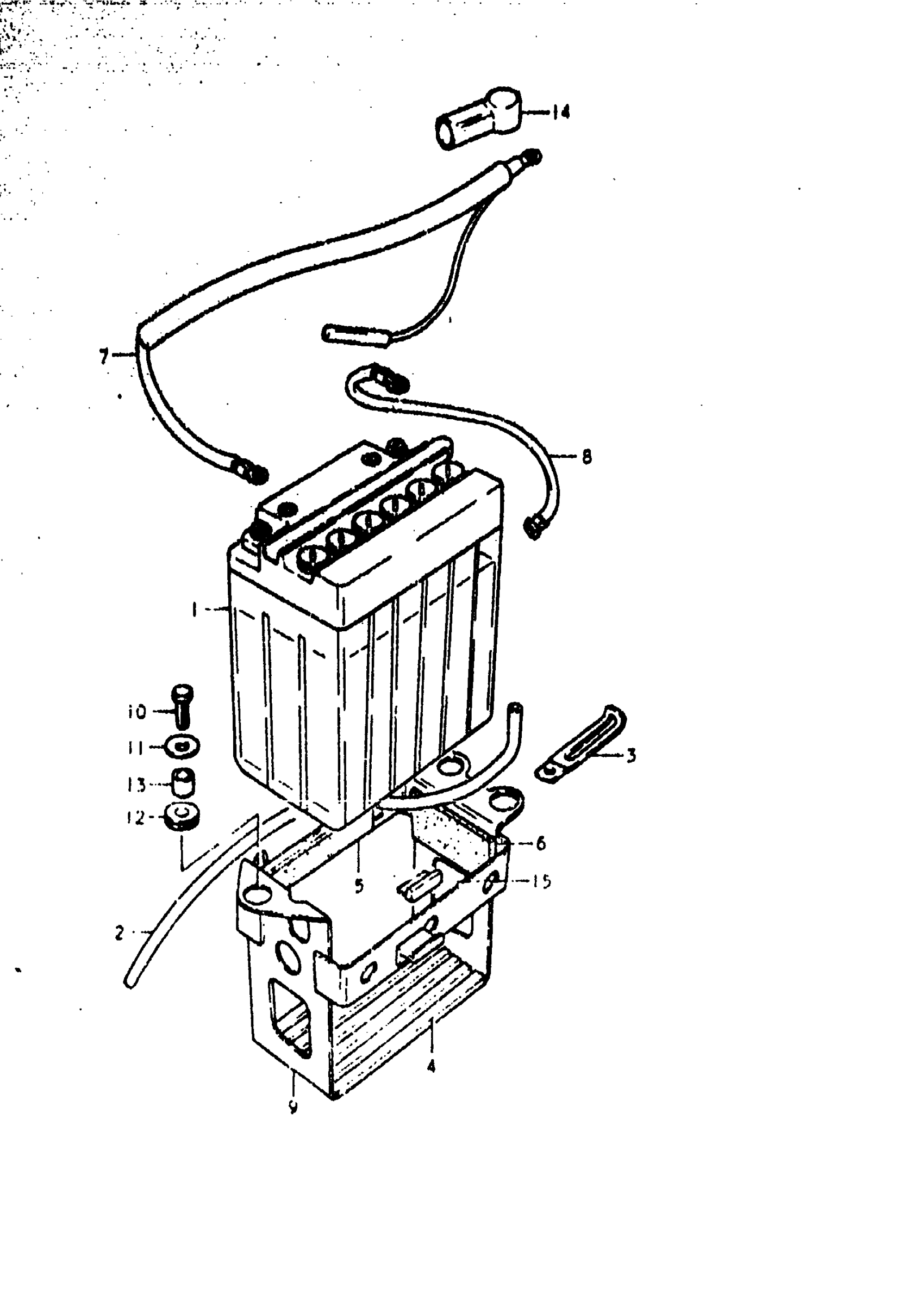

Suzuki GS1000C (1979) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,14AH) | C&EC,N&EN; 12V, 14AH This part replaces 33610-31010.

33610-49210

Unavailable

2

HOSE, BATTERY EXHAUST | C&EC,N&EN

33680-49000

Unavailable

3

CLAMP | C&EC,N&EN This part replaces 09404-06401.

09404-06039

$1.74

4

CUSHION | C&EC,N&EN

33651-31000

$18.02

5

CUSHION, REAR FENDER REAR | C&EC,N&EN This part replaces 33652-29100.

33651-37000

$4.48

6

PROTECTOR, NO.2 | C&EC,N&EN

33651-04100

Unavailable

7

LEAD WIRE, (+) | C&EC,N&EN

33820-49000

Unavailable

8

LEAD WIRE, (-) | C&EC,N&EN

33850-03201

$9.94

9

HOLDER, BATTERY | C&EC,N&EN; GS1000C ONLY This part replaces 41540-49000.

41540-49010

Unavailable

9

HOLDER, BATTERY | C&EC,N&EN

41540-49010

Unavailable

10

BOLT, CANISTER | C&EC,N&EN This part replaces 01107-06168.

01500-06167

$1.97

11

WASHER (6.5X20X1.6) | C&EC,N&EN; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

12

CUSHION (8.5X20X8) | C&EC,N&EN This part replaces 09320-08007.

09320-08510

$1.97

13

SPACER | C&EC,N&EN; 6.2x8.3x5.7

09180-06038

$1.98

14

CAP, BATTERY (+) | C&EC,N&EN

33624-45000

$4.58

15

CUSHION | C&EC,N&EN

47117-02400

$2.37
