Description

Price

1

Flat Washer M6, Stainless

234062600

$0.77

2

O-Ring

293300032

$6.03

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$11.06

7

C-CLIP - Call your local BRP dealership

272000135

Unavailable

8

Carbon Ring

272000770

$45.99

9

BELLOWS - Call your local BRP dealership

272000184

$27.99

10

Support Ring

272000064

$66.49

11

Drive Shaft

272000096

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Screw M6 X 16

207961630

Unavailable

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

Flywheel Guard

272000132

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Mount Dart

293730040

$1.04

18

Tie Wrap 142 mm

293750002

$1.25

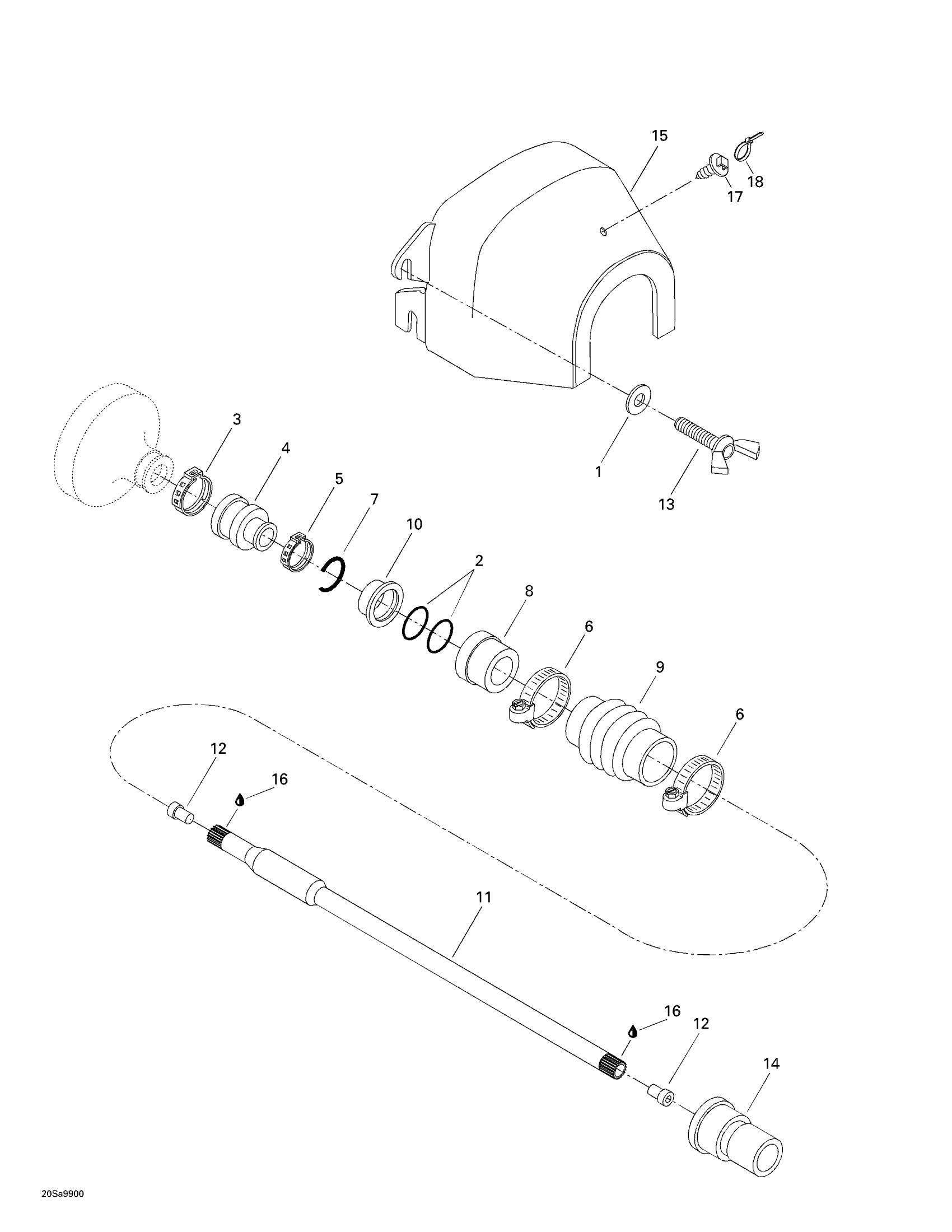

Sea-doo GS, 5846/5847, 1999 05- Drive System Diagram

Flat Washer M6, Stainless

O-Ring

OETIKER CLAMP - Call your local BRP dealership

RUBBER BOOT - Call your local BRP dealership

OETIKER CLAMP - Call your local BRP dealership

Norma Clamp

C-CLIP - Call your local BRP dealership

Carbon Ring

BELLOWS - Call your local BRP dealership

Support Ring

Drive Shaft

DRIVE SHAFT PLUG - Call your local BRP dealership

Wing Screw M6 X 16

HULL INSERT, 33 MM - Call your local BRP dealership

Flywheel Guard

Synthetic Grease, 400 G

Mount Dart

Tie Wrap 142 mm
