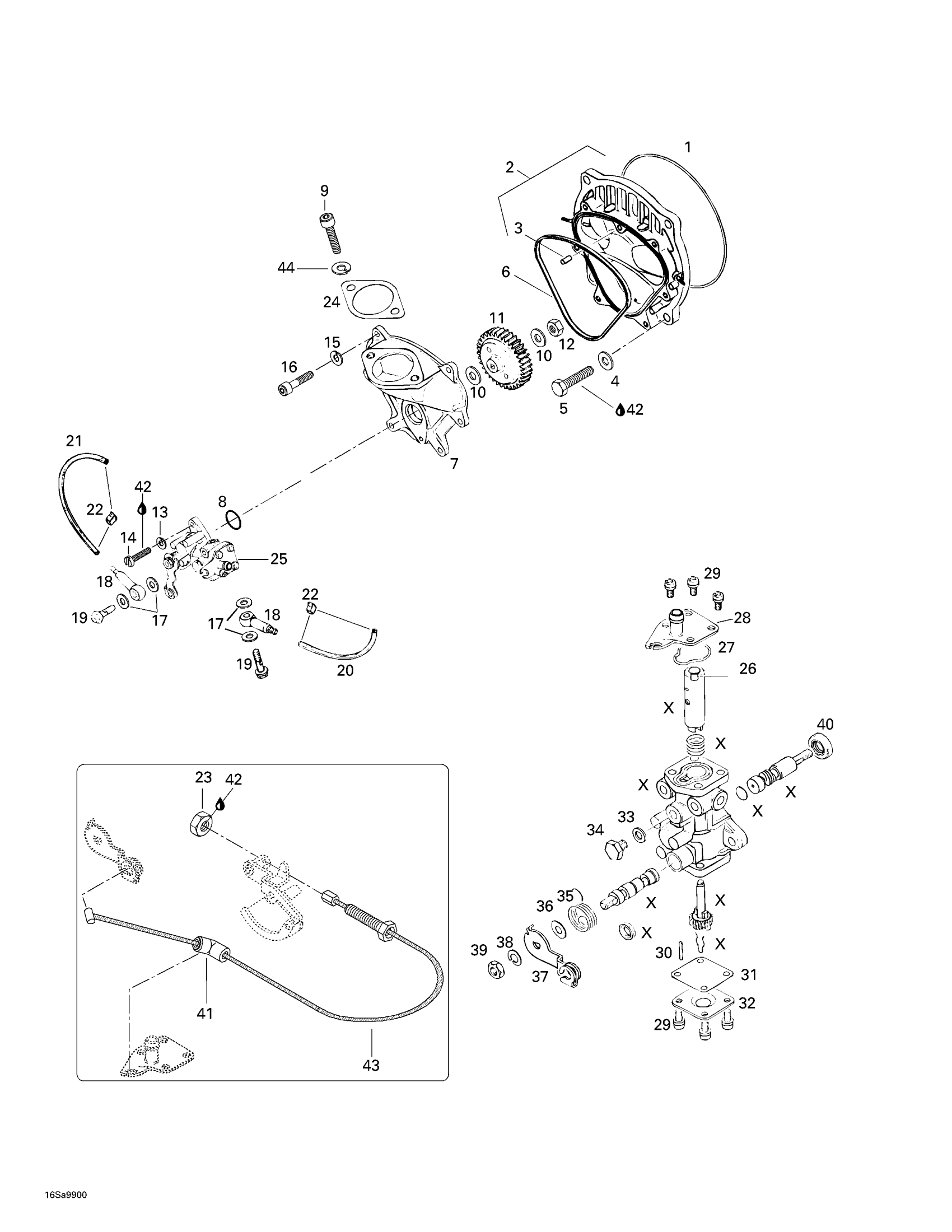

Sea-doo GS, 5846/5847, 1999 Oil Injection System, Oil Pump, Rotary Valve Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

293300023

Unavailable

2

Rotary Valve Cover | Includes 2 - 3.

290811252

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4

Washer 8.4 mm

290250313

$6.25

5

Hex. Screw M8 X 20

207182044

$0.61

6

Rubber Ring

290850160

Unavailable

7

Oil Pump Flange

290811193

Unavailable

8

O-RING - Call your local BRP dealership

293300018

Unavailable

9

Screw Allen M8 x 75 Scotch Grip

209587560

Unavailable

10

FLAT WASHER - Call your local BRP dealership

420927945

$1.38

11

Oil Pump Gear 41 Teeth

420935945

Unavailable

12

Elastic Stop Nut M6

232561414

$1.55

13

Lock Washer

290845389

Unavailable

14

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

$1.20

15

Lock Washer 6 mm

290845381

Unavailable

16

Socket Head Screw M6 X 20

205062060

$1.92

17

Sealing Washer

404146600

$0.72

18

Valve Ass’Y

420956010

$14.27

19

Valve Bolt M6 x 16

290241830

Unavailable

20

Oil Hose 1500Mm Long

219704404

$13.62

21

Oil Hose 1500Mm Long

219704404

$13.62

22

Clamp 3.5 mm

290853843

Unavailable

23

Hex. Nut M6

232160600

$1.08

24

Gasket This part replaces 293250070.

293250134

$11.04

25

Oil Pump Ass'y | Includes 25 - 40.

290996725

Unavailable

26

Retainer

290256085

$2.89

27

O-RING - Call your local BRP dealership

293300019

$7.66

28

Pump Upper Plate

290956340

Unavailable

29

SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership

420241975

$2.83

30

Stop Pin

290929900

Unavailable

31

Gasket

290850200

Unavailable

32

Pump Lower Plate

290956031

Unavailable

33

GASKET - Call your local BRP dealership

420227505

$2.14

34

Hex. Screw M6 x 8

290841583

$10.74

35

Spring

290838114

Unavailable

36

Washer 6.2 mm

290227665

Unavailable

37

Lever Control

290848162

Unavailable

38

Lock Washer 6 mm

290845381

Unavailable

39

Hex. Nut M6

290242623

Unavailable

40

Oil Seal

293200038

Unavailable

41

CABLE GUIDE - Call your local BRP dealership

270000187

Unavailable

42

Loctite 243, 10 ml

293800060

$20.77

43

Injection Cable

270000386

Unavailable

44

Stainless, Flat Washer 8 mm

234081600

$0.46

45

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886316

Unavailable

46

Engine Gasket Set (Not Shown)

290886317

Unavailable
