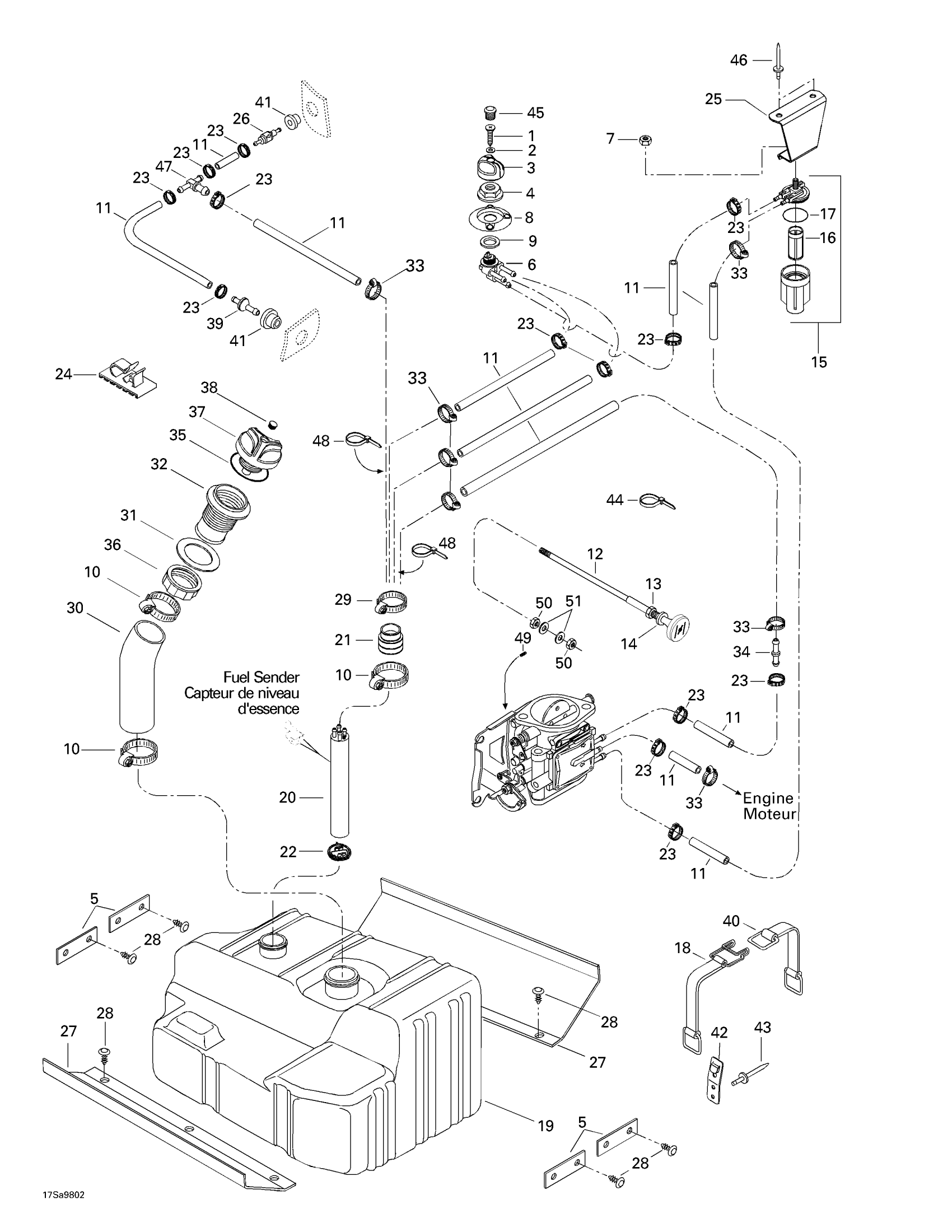

Sea-doo GS, 5846/5847, 1999 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.46

3

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Rubber Pad

292000343

Unavailable

6

Fuel Valve

275500098

$34.42

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Fuel Valve Plate

275500285

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$11.37

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

CHOKE CABLE - Call your local BRP dealership | Includes 12 - 16.

270000728

Unavailable

13

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$6.84

18

Strap | Includes 69 - 70.

293850025

Unavailable

19

Fuel Tank

275500291

Unavailable

20

BAFFLE PICK UP - Call your local BRP dealership | Includes 20 - 22.

275500420

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Oetiker Clamp

293650042

$1.40

24

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

25

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

26

Check Valve

275500424

Unavailable

27

Pad Rubber

293830040

Unavailable

28

Black, Dart

293730006

$0.81

29

Tridon Clamp

293650035

$5.80

30

Filler Neck Hose

275500295

Unavailable

31

Gasket

293250029

$12.06

32

Filler Neck, Fuel

275500231

$12.40

33

Tridon Gear Clamp

293650170

$1.74

34

Straight Fitting

293710039

$6.75

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$10.02

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

38

Black, Snap Cap

293000034

$7.48

39

Check Valve

275500398

$8.57

40

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

41

Grommet

293720029

$1.13

42

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Tie Wrap 368 mm

293750008

$0.85

45

Black, Cap

275500241

$2.76

46

Pop Rivet 3/16"

293150039

$1.31

47

T-Fitting | Europe

293710024

$12.82

48

Tie-Rap 180 mm

414115200

$0.09

49

Allen Screw M4 x 6

210100014

Unavailable

50

Hex. Nut M6

232160600

$1.04

51

Stainless Flat Washer M6

234061600

$0.25
