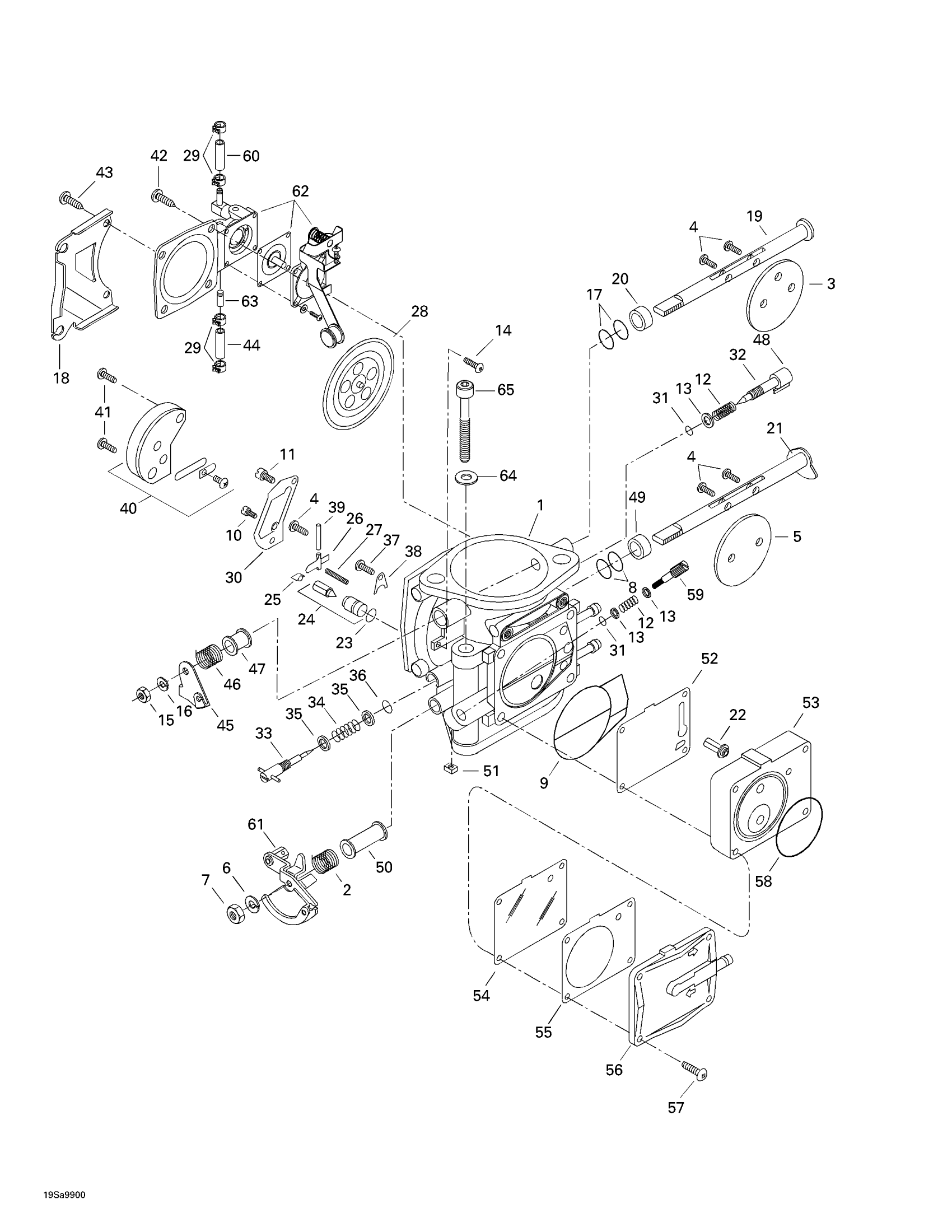

Sea-doo GS, 5846/5847, 1999 Carburetor (single, Mikuni) Diagram

#

Description
Price

1

Carburetor Bn40I-38-48 | Includes 1 - 63.

270500420

Unavailable

2

Spring

270500191

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

SCREW - Call your local BRP dealership

270500156

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

SPRING WASHER - Call your local BRP dealership

270500011

$8.43

7

Nut

270500376

Unavailable

8

Sealing Ring

270500222

Unavailable

9

O-Ring

270500104

Unavailable

10

PILOT JET 75 - Call your local BRP dealership

270500427

Unavailable

11

Main Jet 167.5

270500392

Unavailable

12

SPRING - Call your local BRP dealership

270500091

$8.68

13

Washer

270500136

Unavailable

14

Adjuster Screw

270500288

Unavailable

15

NUT - Call your local BRP dealership

270500229

$9.97

16

Spring Washer

270500230

Unavailable

17

SEALING RING - Call your local BRP dealership

270500234

$16.89

18

Support

270500315

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

RING - Call your local BRP dealership

270500239

$9.97

21

Throttle Lever Ass'y

270500317

Unavailable

22

FUEL FILTER - Call your local BRP dealership

270500115

Unavailable

23

O-RING - Call your local BRP dealership

270500127

Unavailable

24

Needle Valve 2.0

270500208

$27.92

25

CLIP - Call your local BRP dealership

270500129

$10.74

26

NEEDLE VALVE LEVER - Call your local BRP dealership

270500128

$14.58

27

SPRING - Call your local BRP dealership

270500428

Unavailable

28

DIAPHRAGM ASS'Y - Call your local BRP dealership

270500132

$47.66

29

Oetiker Gear Clamp

293650043

$2.70

30

GASKET - Call your local BRP dealership

270500131

$29.28

31

O-RING - Call your local BRP dealership

270500144

$10.74

32

Adjuster Screw

270500113

Unavailable

33

IDLE ADJUSTING SCREW - Call your local BRP dealership

270500020

$26.11

34

SPRING - Call your local BRP dealership

270500019

Unavailable

35

Washer

270500018

Unavailable

36

O-RING - Call your local BRP dealership

270500119

Unavailable

37

Screw And Spring Washer

270500155

Unavailable

38

PLATE - Call your local BRP dealership

270500125

Unavailable

39

Pin

270500038

Unavailable

40

VALVE ASS'Y - Call your local BRP dealership

270500124

$43.05

41

SCREW - Call your local BRP dealership

270500123

Unavailable

42

Screw

270500322

Unavailable

43

SCREW - Call your local BRP dealership

270500238

$8.68

44

Hose 90 mm

270500308

Unavailable

45

Choke Lever

270500316

Unavailable

46

SPRING - Call your local BRP dealership

270500248

Unavailable

47

Ring

270500110

Unavailable

48

Cap

270500154

Unavailable

49

RING - Call your local BRP dealership

270500309

$9.97

50

RING - Call your local BRP dealership

270500192

$9.97

51

Nut

270500249

Unavailable

52

GASKET - Call your local BRP dealership

270500103

$15.02

53

Body Pump Ass'y

270500105

Unavailable

54

DIAPHRAGM - Call your local BRP dealership

270500106

$10.98

55

Gasket

270500146

Unavailable

56

PUMP COVER - Call your local BRP dealership

270500108

$63.05

57

SCREW - Call your local BRP dealership

270500143

Unavailable

58

O-RING - Call your local BRP dealership

270500102

Unavailable

59

Adjuster Screw

270500288

Unavailable

60

Hose

270500342

Unavailable

61

Throttle Lever Ass'y

270500317

Unavailable

62

Diaphragm Cover

270500424

Unavailable

63

RECHARGE JET - Call your local BRP dealership

270500348

Unavailable

64

Stainless, Flat Washer 8 mm

234081600

$0.46

65

Socket Head Screw M8 x 75 (Scotch Grip)

205587560

Unavailable
