01- Engine Support And Muffler

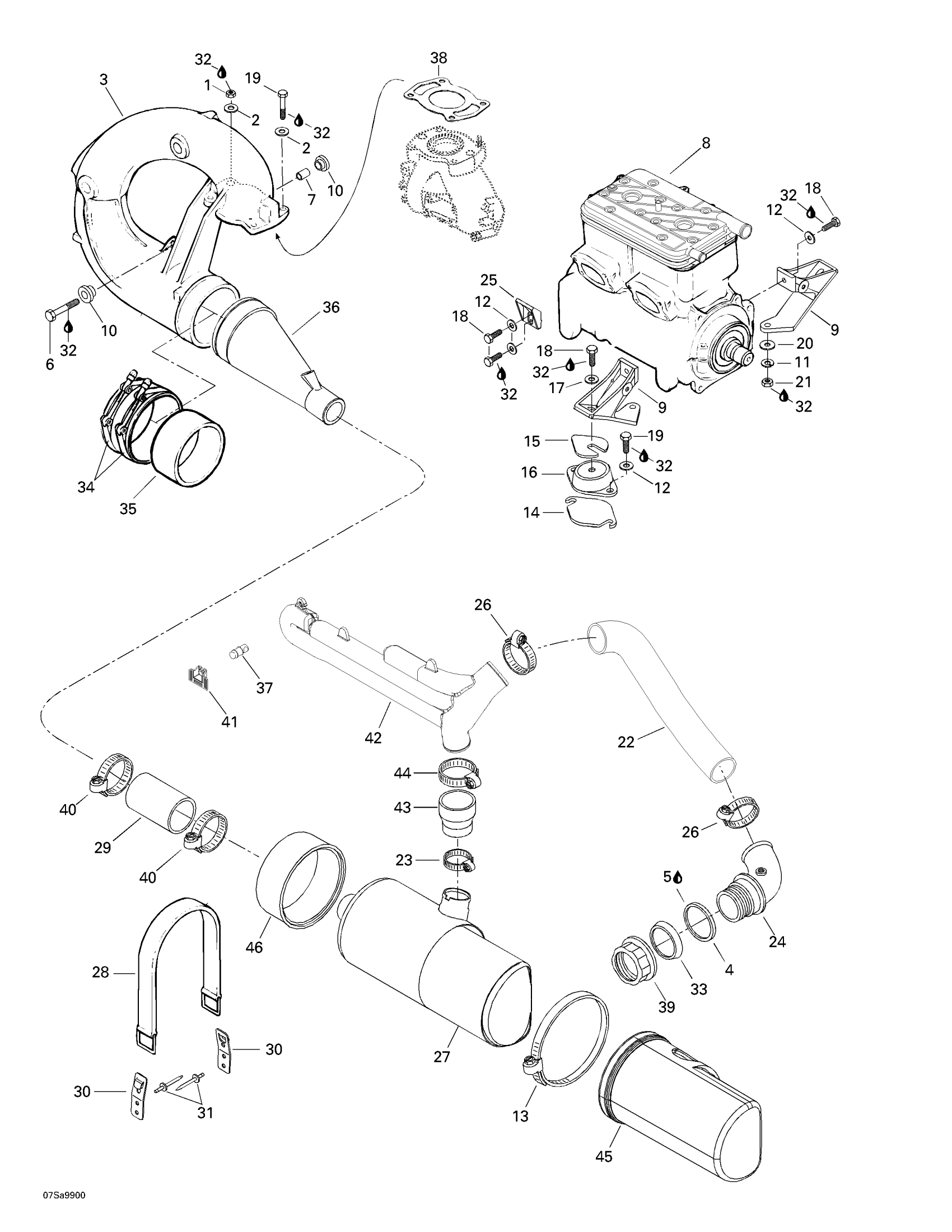

Sea-doo GS, 5846/5847, 1999 01- Engine Support And Muffler Diagram
#
1
Hex. Nut M8
232081600
$1.47
2
Flat Washer M8.5 x 18
293050001
$3.07
3
Tuned Pipe Ass'y | Includes 1 - 4.
274000770
Unavailable
4
GASKET - Call your local BRP dealership
293250041
Unavailable
5
Silicone Sealant 51388, 300 ml
296000309
$36.99
6
Hex. Screw M8 X 40
207084060
$2.22
7
Bushing
274000114
$8.85
8
Rotax Eng. 717 Single Carb. (Silver)
270000350
Unavailable
9
RH Engine Support
270000180
Unavailable
LH Engine Support
270000181
Unavailable
10
Rubber Bushing
293830031
Unavailable
11
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Norma Gear Clamp
293650092
Unavailable
14
Shim 0.4 mm
270000006
Unavailable
Shim 1.3 mm
270000007
Unavailable
15
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
16
Rubber Mount
270000425
$71.99
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
19
Hex. Screw M8 X 30
207183060
$1.58
20
Flat Washer 10 mm, Stainless
234001600
$1.15
21
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
22
Exhaust Hose
274000757
Unavailable
23
Tridon Clamp
293650023
$13.49
24
EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC
274000542
Unavailable
25
Front Engine Support
270000179
Unavailable
26
Tridon Clamp
293650064
$8.29
27
Muffler
274000533
Unavailable
28
Retainer Strap
293850097
$11.64
29
EXHAUST HOSE - Call your local BRP dealership
274000032
Unavailable
30
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
31
Avdel Rivet 3/16"
293150037
$0.56
32
Loctite 243, 10 ml
293800060
$21.49
33
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
34
NORMA CLAMP - Call your local BRP dealership
293650068
Unavailable
35
Sealing Ring
274000074
Unavailable
36
Exhaust Cone Ass’Y
274000488
Unavailable
37
RUBBER PAD - Call your local BRP dealership
293830062
Unavailable
38
Exhaust Gasket This part replaces 290950253.
420950253
$14.83
39
Nut 72 mm
274000224
$16.34
40
Tridon Clamp
293650023
$13.49
41
Pad Support
291001352
Unavailable
42
UPPER RESONATOR - Call your local BRP dealership
274000683
Unavailable
43
Hose Exhaust
274000758
Unavailable
44
Tridon Clamp
293650023
$13.49
45
Rear Cover Muffler
274000724
Unavailable
46
Front Cover Muffler
274000723
Unavailable
