01- Crankcase, Rotary Valve

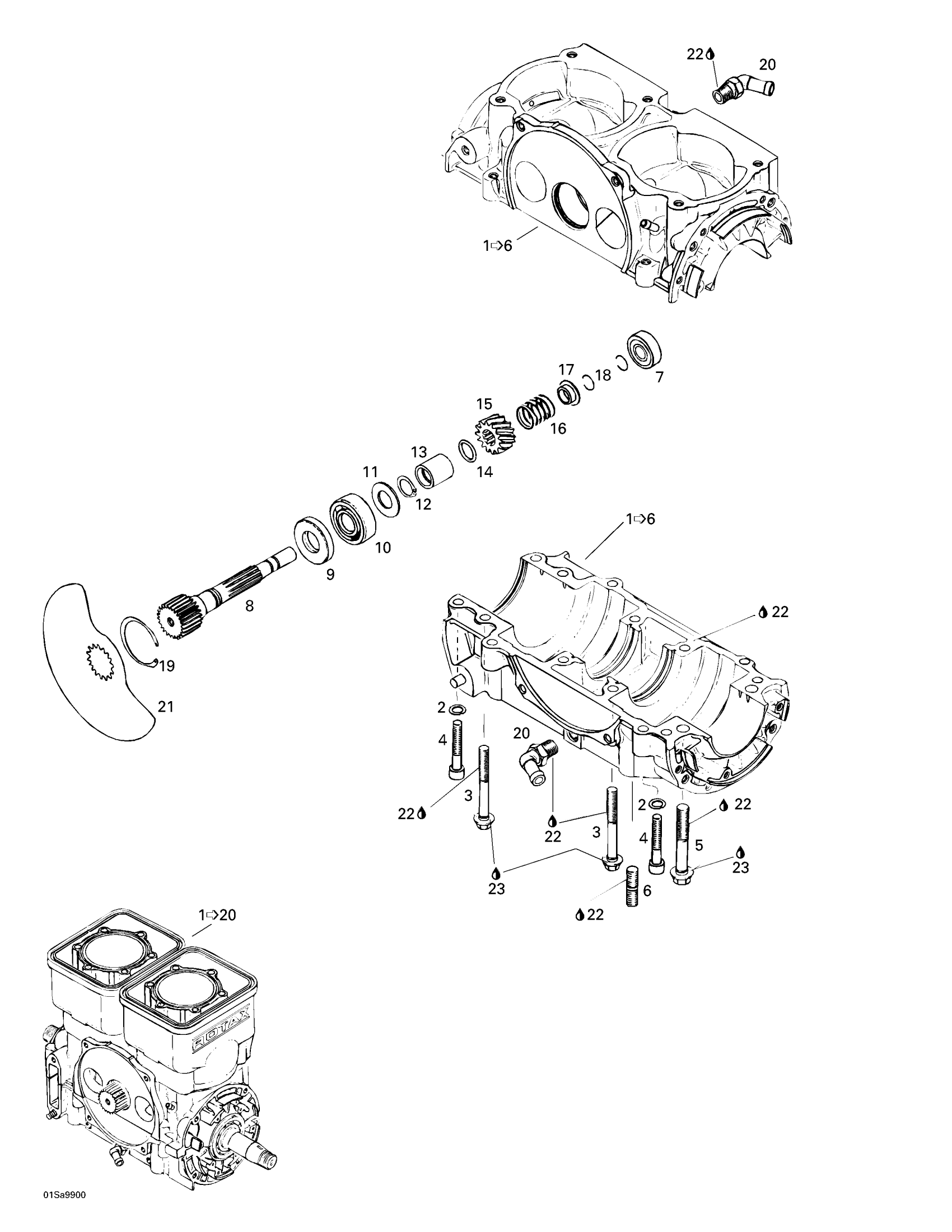

Sea-doo GS, 5846/5847, 1999 01- Crankcase, Rotary Valve Diagram
#
Description
Price
1
SHORT BLOCK ASS'Y (SILVER) - Call your local BRP dealership | Includes 1 - 20.
290071703
Unavailable
1
REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership
421000097
Unavailable
1
Crankcase Ass'y <<717>> (Silver) | Includes 1 - 7.
290887199
Unavailable
2
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
3
Hex. Flange Screw M8 x 68.5
290841998
Unavailable
4
Socket Head Screw M8 X 45
205084560
$3.59
5
Flange Screw M10 x 73,5
290941333
Unavailable
6
STUD M10 X 25, PTO - Call your local BRP dealership
290940798
Unavailable
7
Ball Bearing
420932797
$19.99
8
ROTARY VALVE SHAFT - Call your local BRP dealership
290837252
Unavailable
9
OIL SEAL - Call your local BRP dealership
420930580
Unavailable
10
BALL BEARING - Call your local BRP dealership
293350051
Unavailable
11
SHIM - Call your local BRP dealership
420227439
Unavailable
12
SNAP RING - Call your local BRP dealership
420845450
Unavailable
13
SPACER BUSHING - Call your local BRP dealership
420847282
Unavailable
14
O-Ring
293300024
$8.57
15
Sprocket 14Th This part replaces 420935735.
420935736
$88.99
16
SPRING - Call your local BRP dealership
420938810
Unavailable
17
SPRING SEAT - Call your local BRP dealership
420827430
Unavailable
18
CIRCLIP - Call your local BRP dealership
420845160
Unavailable
19
Lock Ring
420945880
$4.44
20
Angular Tube
420922242
$14.83
21
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.
420924502
Unavailable
22
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
23
Dow Corning 111, 150 g
413707000
$59.99
24
Engine Gasket Set (Not Shown)
290886317
Unavailable
