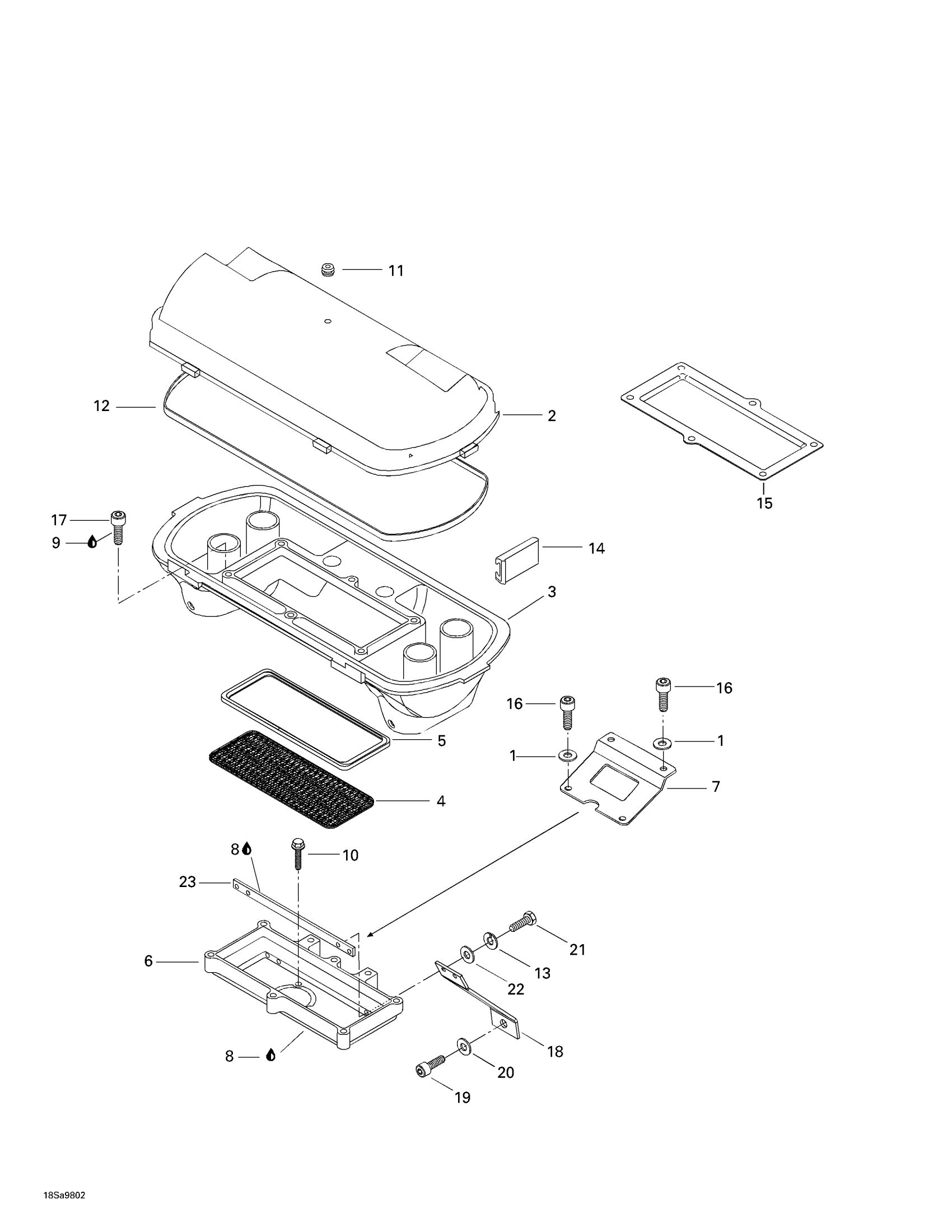

Sea-doo GS, 5626/5844, 1998 Air Intake System Diagram

#

Description
Price

1

Stainless Flat Washer M6

234061600

$0.33

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

4

FLAME ARRESTER - Call your local BRP dealership

273000117

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

6

Housing Arrester

273000131

Unavailable

7

SUPPORT - Call your local BRP dealership

270000261

Unavailable

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

Loctite 243, 10 ml

293800060

$21.49

10

SCREW-HEX.FLANGE S.GRIP - Call your local BRP dealership

211000176

Unavailable

11

Rubber Bumper

293830005

$8.09

12

GASKET - Call your local BRP dealership

293250023

Unavailable

13

Helical Lock Washer M5

234151601

$1.15

14

Retainer Clip

273000006

Unavailable

15

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

16

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

17

Socket Head Screw M6 X 25

205062560

$1.69

18

Arrester Support (PTO)

270000391

Unavailable

Arrester Support (MAG)

270000392

Unavailable

19

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

20

Flat Washer M8.5 x 18

293050001

$3.07

21

Hex. Screw M5 X 16, Scotch Grip

207351660

$0.83

22

Flat Washer M5, Stainless

234051600

$0.77

23

THREADED PLATE - Call your local BRP dealership

270000393

Unavailable
