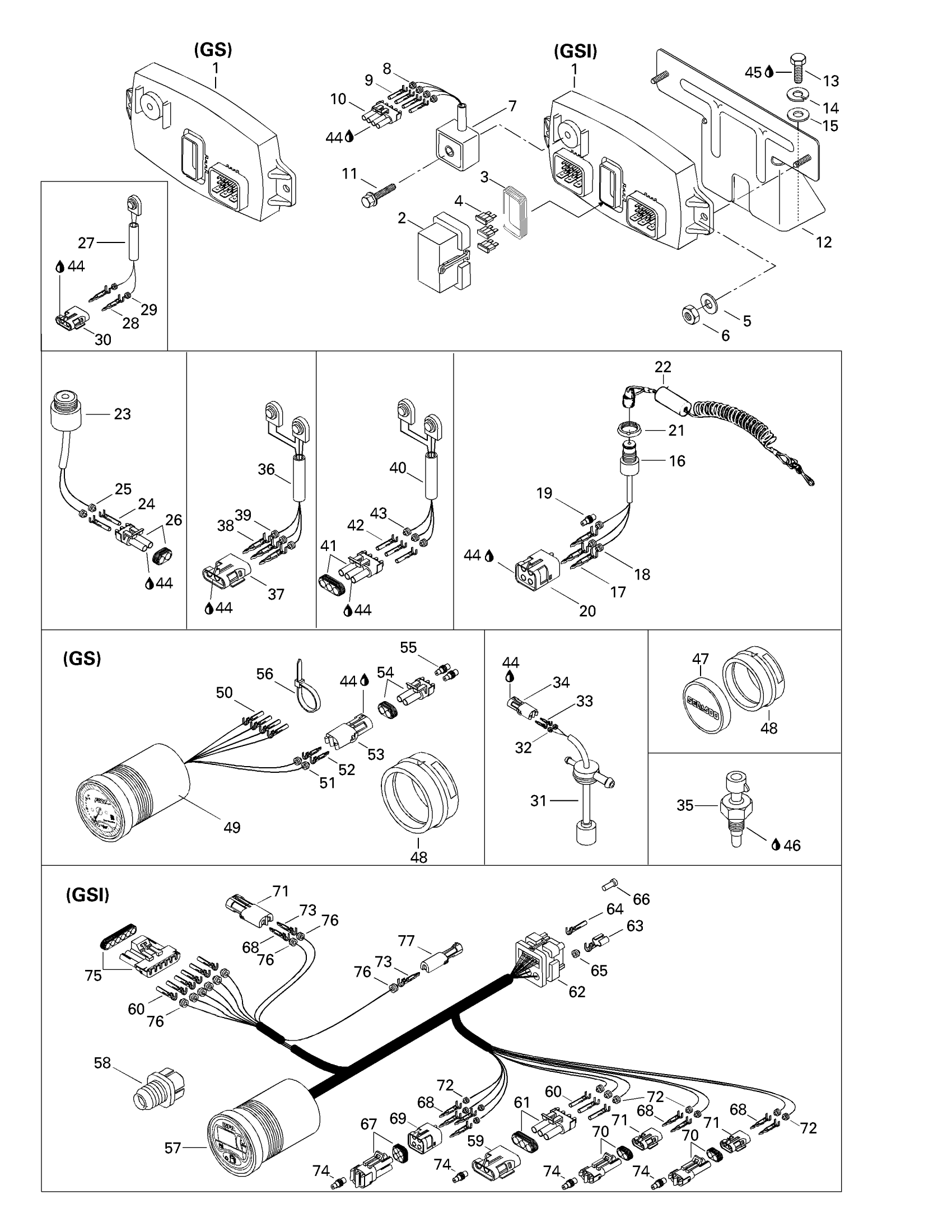

Sea-doo GS,5621/GSI, 5622, 1997 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 1 - 4.

278000916

Unavailable

Electronic Module Ass'y | GSI 5622.

278000928

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.12

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

5

Flat Washer M6, Stainless

234062600

$0.73

6

Hex. Elastic Stop Nut M6

232561600

$1.06

7

Rectifier Ass'y | Includes 7 - 10.

278001056

Unavailable

8

Wire Seal

278000218

$4.00

9

Female Terminal

409007300

$0.42

10

Male Housing, 4 Circuits

278000395

$14.57

11

Screw Hex. Tapping M6 x 35

211000105

Unavailable

12

Box Support Ass'y

278001128

Unavailable

13

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

14

Helical Lock Washer M5

234151601

$1.04

15

Flat Washer 5 mm, Stainless

234052600

$0.73

16

Safety Switch | Includes 15 - 19.

278000977

Unavailable

17

Male Terminal | XT Models

278000222

$2.93

18

Wire Seal

278000218

$4.00

19

Wire Seal

278000216

$2.93

20

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

21

Safety Nut (DESS Switch)

278002963

$3.12

22

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

23

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

24

Female Terminal

278000223

$2.93

25

Wire Seal

278000218

$4.00

26

Male Connector, 2 Circuits

278000220

$12.66

27

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001115

Unavailable

28

Male Terminal | XT Models

278000222

$2.93

29

Wire Seal

278000218

$4.00

30

Female Housing, 2 Circuits

278000217

$8.72

31

Oil Level Sensor

278000478

Unavailable

32

Wire Seal

278000218

$4.00

33

Male Terminal | XT Models

278000222

$2.93

34

Female Housing, 2 Circuits

278000217

$8.72

35

Temperature Sensor

278000965

$66.39

36

VTS Switch Ass'y | Includes 36 - 39. GSI 5622.

278001076

Unavailable

37

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

38

Male Terminal | XT Models

278000222

$2.93

39

Wire Seal

278000218

$4.00

40

Gauge Switch Ass'y | Includes 40 - 43. GSI 5622.

278001077

Unavailable

41

Male Housing, 3 Circuits

278000273

$8.72

42

Female Terminal

278000223

$2.93

43

Wire Seal

278000218

$4.00

44

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

45

Loctite 271, 10 ml

293800005

$23.85

46

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

47

Gauge Cap (Bright Violet) | GS 5621.

293000067

Unavailable

Gauge Cap (Indigo Blue)

293000069

Unavailable

48

Gauge Support

293720047

Unavailable

49

Oil / Fuel Level Gauge | Includes 41 - 48.

278000976

Unavailable

50

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

51

Wire Seal

278001065

$5.85

52

Male Terminal | XT Models

278000222

$2.93

53

Female Housing, 2 Circuits

278000217

$8.72

54

Male Connector, 2 Circuits

278000220

$12.66

55

Wire Seal

278000216

$2.93

56

Tie Wrap 142 mm

293750002

$1.01

57

LCD Info Gauge | Includes 57 - 77. GSI 5622.

278001050

Unavailable

58

GROMMET - Call your local BRP dealership

293720042

Unavailable

59

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

60

Female Terminal

278000223

$2.93

61

Male Housing, 3 Circuits

278000273

$8.72

62

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

63

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

64

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

65

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

66

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

67

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

68

Male Terminal | XT Models

278000222

$2.93

69

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

70

Male Connector, 2 Circuits

278000220

$12.66

71

Female Housing, 2 Circuits

278000217

$8.72

72

Wire Seal

278001065

$5.85

73

Male Terminal

409004300

$5.30

74

Wire Seal

278000216

$2.93

75

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

76

Wire Seal

278000218

$4.00

77

Female Housing, 1 Circuit

278000161

$8.72

78

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable
