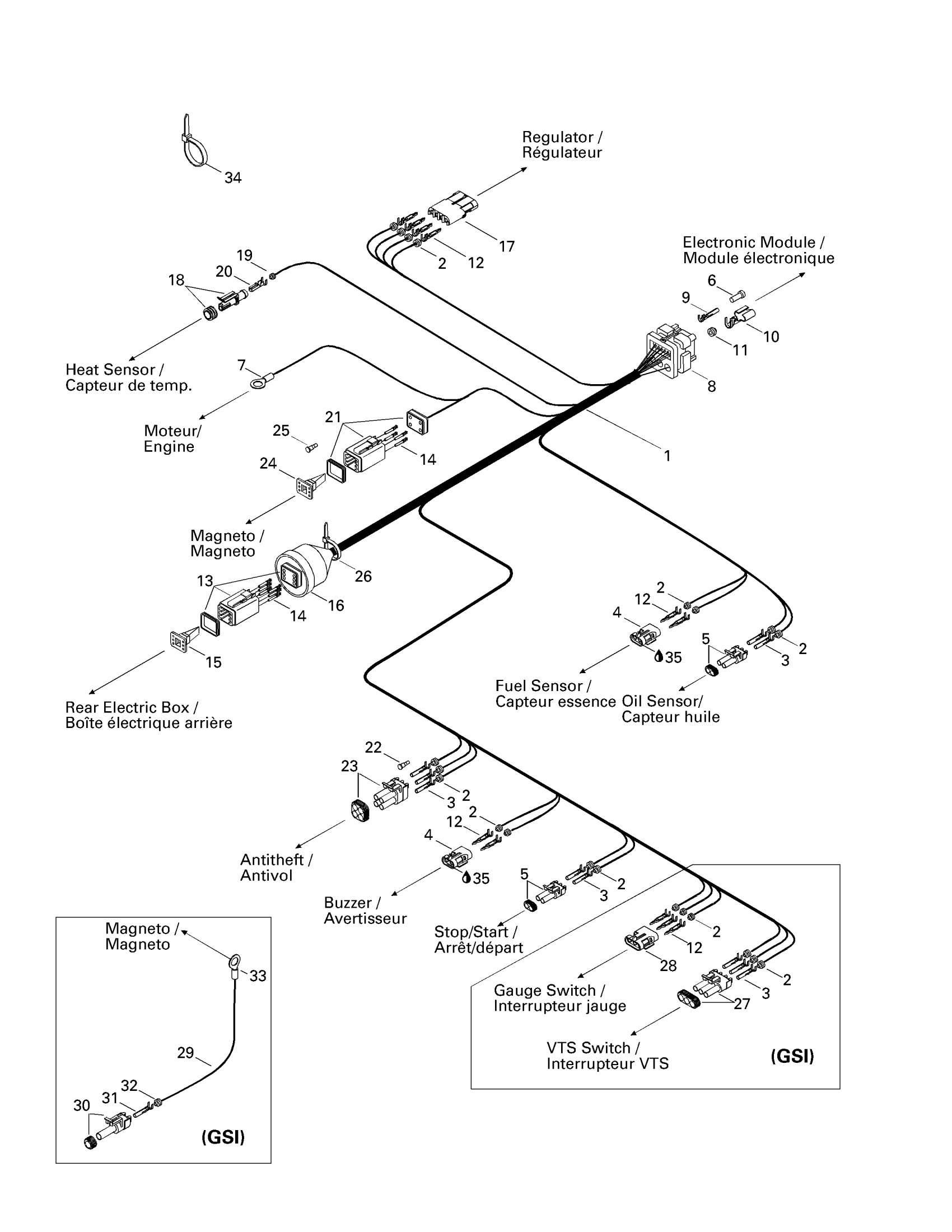

Sea-doo GS,5621/GSI, 5622, 1997 Electrical Harness Diagram

#

Description
Price

1

Main Harness Ass'y | Includes 1 - 28.

278000908

Unavailable

1

Main Harness Ass'y | Includes 1 - 28. GSI 5622.

278001030

Unavailable

2

Wire Seal

278000218

$4.00

3

Female Terminal

278000223

$2.93

4

Female Housing, 2 Circuits

278000217

$8.72

5

Male Connector, 2 Circuits

278000220

$12.66

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Open Barrel

278001165

Unavailable

8

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

Male Terminal Housing, 26 Circuits

278001062

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

10

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

11

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

12

Male Terminal | XT Models

278000222

$2.93

13

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

14

Female Terminal

278000632

$1.94

15

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

16

Switch Boot

570150700

Unavailable

17

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

18

Male Housing, 1 Circuit

278001012

$14.52

19

Wire Seal

278001013

$3.12

20

Female Terminal

278001014

$3.12

21

Male Connector, 4 Circuits | CE

278000739

$17.13

22

Wire Seal

278000216

$2.93

23

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

24

Male Lock, 4 Circuits | CE

278000738

$2.82

25

Sealing Cap

293000052

$2.93

26

Tie Wrap 142 mm

293750002

$1.01

27

Male Housing, 3 Circuits

278000273

$8.72

28

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

29

Ground Wire | Includes 29 - 33.

278001149

Unavailable

30

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

31

Female Terminal

409007300

$0.42

32

Wire Seal

278000218

$4.00

33

Open Barrel

278001165

Unavailable

34

Tie Wrap 94 mm | 4X4

293750001

$0.96

Tie Wrap 142 mm

293750002

$1.01

Tie Wrap 368 mm

293750008

$0.97

34

Tie-Rap 180 mm

414115200

$0.10

35

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
