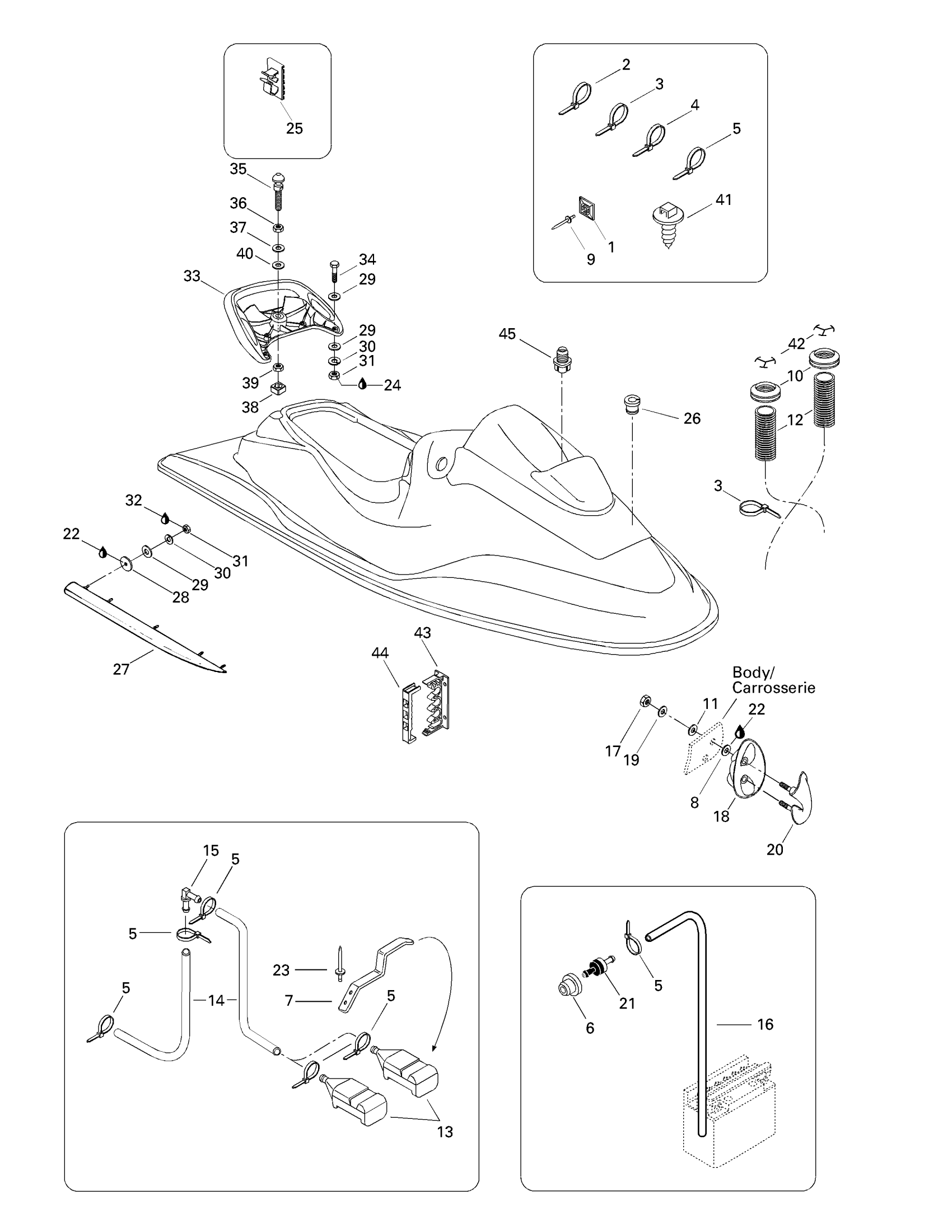

Sea-doo GS,5621/GSI, 5622, 1997 09- Body Diagram
#
1
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
2
Tie-Rap 180 mm
414115200
$0.11
3
Tie Wrap 368 mm
293750008
$1.04
4
Tie Wrap 142 mm
293750002
$1.25
5
Tie Wrap 94 mm | 4X4
293750001
$1.03
6
Grommet
293720029
$1.59
7
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
8
Stainless, Flat Washer 8 mm
234081600
$0.55
9
Pop Rivet 1/8''
293150033
Unavailable
10
Grommet
293720036
Unavailable
11
Rubber Washer
293830037
$2.68
12
Vent Tube
291000870
Unavailable
13
Screen Bailer
292000079
Unavailable
14
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
15
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
16
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
17
Hex. Elastic Nut M8
232581600
$1.48
18
Shell (White)
292000258
Unavailable
19
Flat Washer 8 mm, Stainless
234082600
$2.43
20
Eye-Bow (White)
292000257
Unavailable
21
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
22
Silicone Sealant 51388, 300 ml
296000309
$36.99
23
Avdel Rivet 3/16"
293150037
$0.56
24
Loctite 271, 10 ml
293800005
$26.99
25
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
26
GROMMET - Call your local BRP dealership
293720017
Unavailable
27
RH Sponson | GS 5621.
292000384
Unavailable
RH Sponson | GSI 5622.
292000319
Unavailable
LH Sponson | GS 5621.
292000385
Unavailable
LH Sponson | GSI 5622.
292000321
Unavailable
28
GASKET - Call your local BRP dealership
293250026
Unavailable
29
Flat Washer M6, Stainless
234062600
$0.77
30
Lock Washer Helical M6
234161601
$1.15
31
Hex. Nut M6
232061600
$1.15
32
Loctite 243, 10 ml
293800060
$21.49
33
Grab Handle Kit (Yellow) | Includes 30 - 34.
295500367
Unavailable
34
Hex. Screw M6 X 40
207064060
$1.69
35
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
36
Hex. Jam Nut M10
232100600
$2.22
37
Flat Washer 10 mm, Stainless
234002600
$2.22
38
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
39
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
40
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
41
Mount Dart
293730040
$1.04
42
Restrictor
291001098
Unavailable
43
Tie Mount
293750013
Unavailable
44
Tie Mount Top
293750012
Unavailable
45
GROMMET - Call your local BRP dealership
293720042
Unavailable
