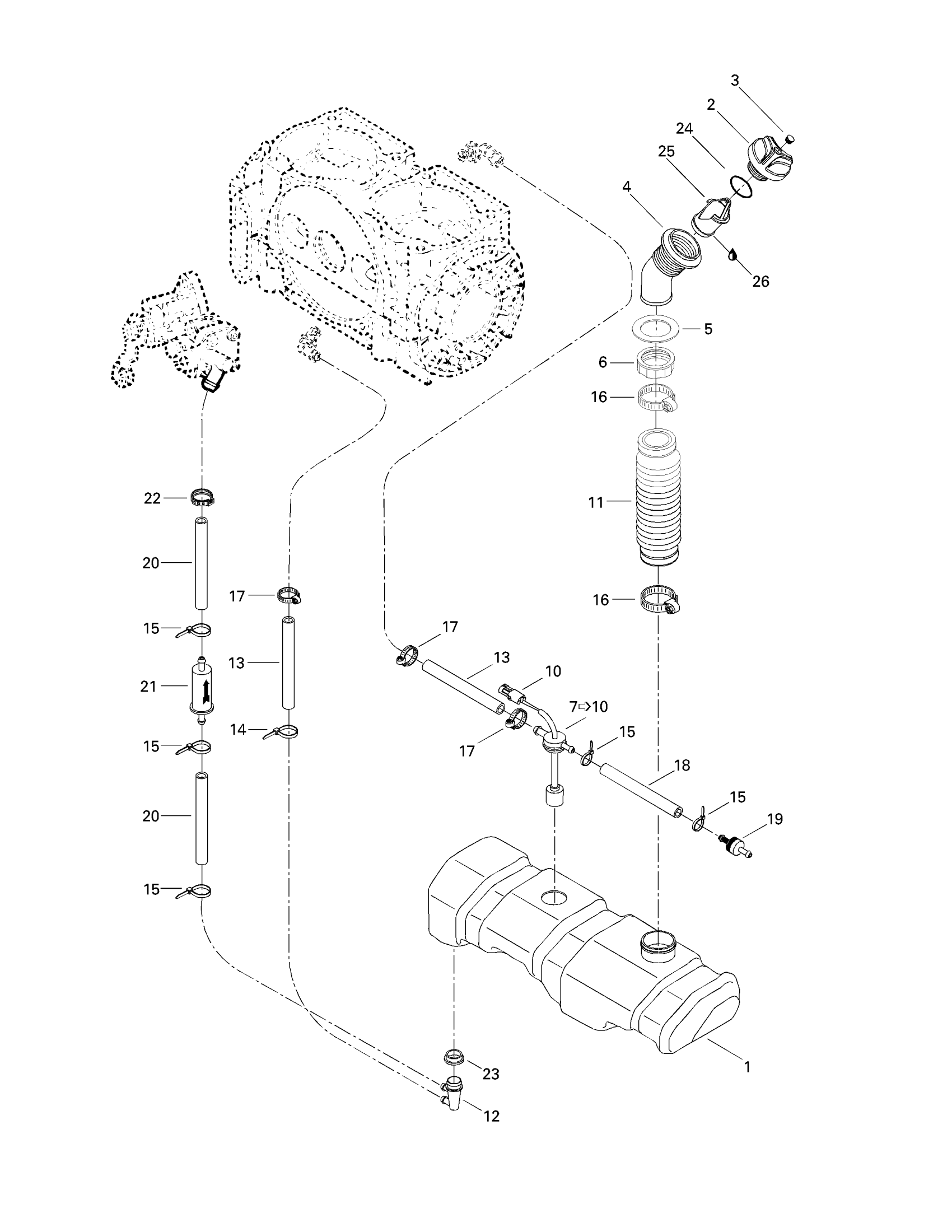

Sea-doo GS,5621/GSI, 5622, 1997 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000238

$88.03

2

OIL CAP ASS'Y - Call your local BRP dealership | Includes 2 - 3.

275000178

Unavailable

3

Snap Cap

293000051

Unavailable

4

Filler Neck

275000187

Unavailable

5

Gasket

293250029

$13.85

6

Filler Neck Nut, Fuel

211100012

$11.51

7

Oil Level Sensor

278000478

Unavailable

8

Wire Seal

278000218

$4.00

9

Male Terminal | XT Models

278000222

$2.93

10

Female Housing, 2 Circuits

278000217

$8.72

11

Filler Hose

275000188

Unavailable

12

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

13

Was 275500008 Hose 12 mm

219704356

$6.82

14

Tie-Rap 180 mm

414115200

$0.10

15

Tie Wrap 142 mm

293750002

$1.01

16

Tridon Clamp

293650035

$6.66

17

Tridon Gear Clamp

293650170

$2.00

18

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

19

Check Valve This part replaces 275500087.

275501246

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$1.61

23

Grommet

293720008

$12.52

24

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

25

Restrictor

275000190

Unavailable

26

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

27

Grommet

204470104

Unavailable
