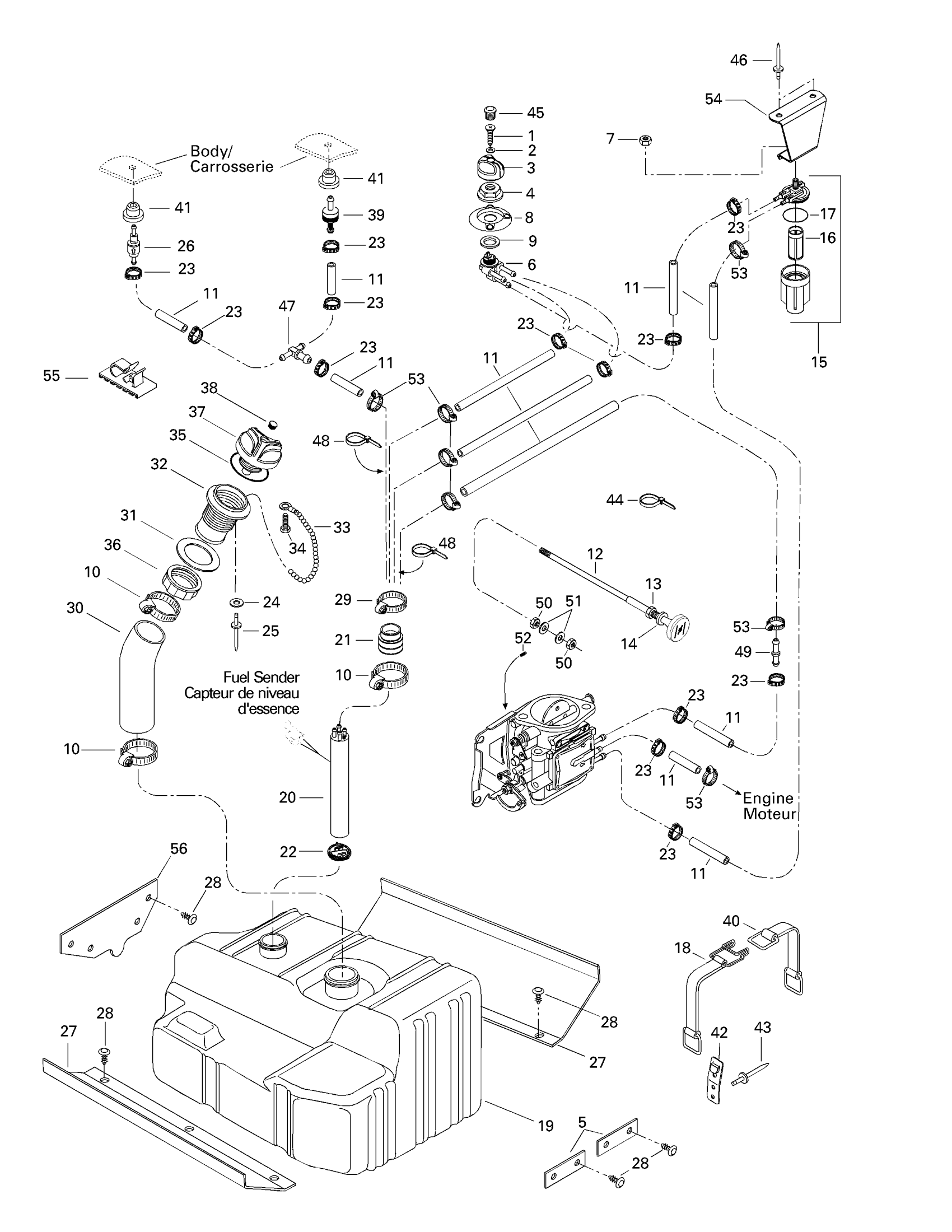

Sea-doo GS,5621/GSI, 5622, 1997 02- Fuel System Diagram
#
1
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
2
Flat Washer 4 mm
234040600
$0.55
3
Fuel Valve Knob (Yellow)
275500212
Unavailable
4
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
Unavailable
5
Rubber Pad
292000343
Unavailable
6
Fuel Valve
275500098
$43.99
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
Fuel Valve Plate (Yellow)
275500360
Unavailable
9
GASKET - Call your local BRP dealership
293250004
Unavailable
10
Tridon Clamp
293650023
$13.49
11
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
12
Choke Cable | Includes 12 - 14.
270000262
Unavailable
13
NUT-HEXAGONAL HI-LEX - Call your local BRP dealership
211100030
Unavailable
14
Choke Plate
291000921
Unavailable
15
Fuel Filter Ass'y | Includes 15 - 17.
275500088
$42.49
16
FUEL FILTER - Call your local BRP dealership
275500089
Unavailable
17
O-Ring
275500090
$8.79
18
Strap | Includes 69 - 70.
293850025
Unavailable
19
Fuel Tank
275500291
Unavailable
20
Baffle Pick Up | Includes 20 - 22.
275500374
Unavailable
21
Tube Adapter
275500111
Unavailable
22
Fuel Filter
275500249
Unavailable
23
Oetiker Clamp
293650042
$3.09
24
Flat Washer M3, Stainless
234032600
$0.55
25
Pop Rivet 1/8"
390407900
$1.49
26
Pressure Relief Valve (1.5 P.S.I)
275500104
Unavailable
27
Pad Rubber
293830040
Unavailable
28
Black, Dart
293730006
$0.99
29
Tridon Clamp
293650035
$7.29
30
Filler Neck Hose
275500295
Unavailable
31
Gasket
293250029
$14.82
32
Filler Neck, Fuel
275500231
$14.75
33
Chain
275500168
Unavailable
34
Screw K40 X 10
241140060
$1.48
35
Gasket
293250017
Unavailable
36
Filler Neck Nut, Fuel
211100012
$14.22
37
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
38
Black, Snap Cap
293000034
$9.39
39
Check Valve This part replaces 275500087.
275501246
$10.99
40
Fuel Tank Strap | Includes 48 - 49.
293850026
Unavailable
41
Grommet
293720029
$1.59
42
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
43
Avdel Rivet 3/16"
293150037
$0.56
44
Tie Wrap 368 mm
293750008
$1.04
45
Bumper Plug, Black
291000339
$2.99
46
Pop Rivet 3/16"
293150039
$1.49
47
T-Fitting | Europe
293710024
$14.75
48
Tie-Rap 180 mm
414115200
$0.11
49
Straight Fitting
293710039
$7.59
50
Hex. Nut M6
232160600
$1.15
51
Stainless Flat Washer M6
234061600
$0.33
52
Allen Screw M4 x 6
210100014
Unavailable
53
Tridon Gear Clamp
293650170
$1.99
54
FUEL FILTER SUPPORT - Call your local BRP dealership
275500287
Unavailable
55
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
56
Rubber Pad
293830053
Unavailable
