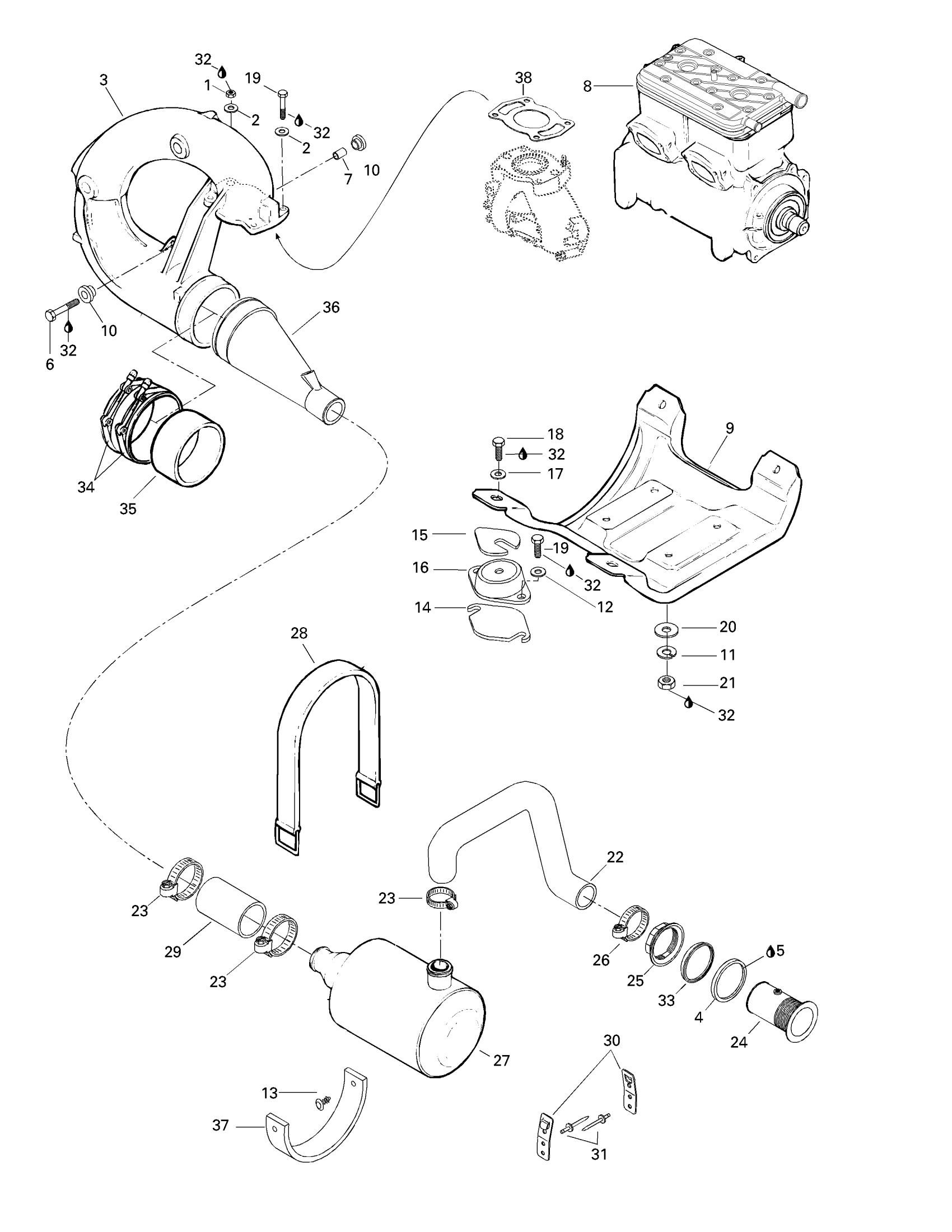

Sea-doo GS,5621/GSI, 5622, 1997 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y

274000487

Unavailable

4

GASKET - Call your local BRP dealership

293250041

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

Hex. Screw M8 X 40

207084060

$2.22

7

Bushing

274000114

$8.85

8

Rotax Eng. 717 Single Carb.(White)

270000290

Unavailable

9

Engine Support

270000312

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Black, Dart

293730011

$0.99

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Exhaust Hose Formed

274000421

Unavailable

23

Tridon Clamp

293650036

$7.49

24

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

25

Nut 72 mm

274000224

$16.34

26

Tridon Clamp

293650064

$8.29

27

Muffler

274000491

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

274000171

Unavailable

30

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.56

32

Loctite 243, 10 ml

293800060

$21.49

33

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

34

Clamp

274000211

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

Rubber Pad

293830055

Unavailable

38

Exhaust Gasket This part replaces 290950253.

420950253

$14.83
