Partiron

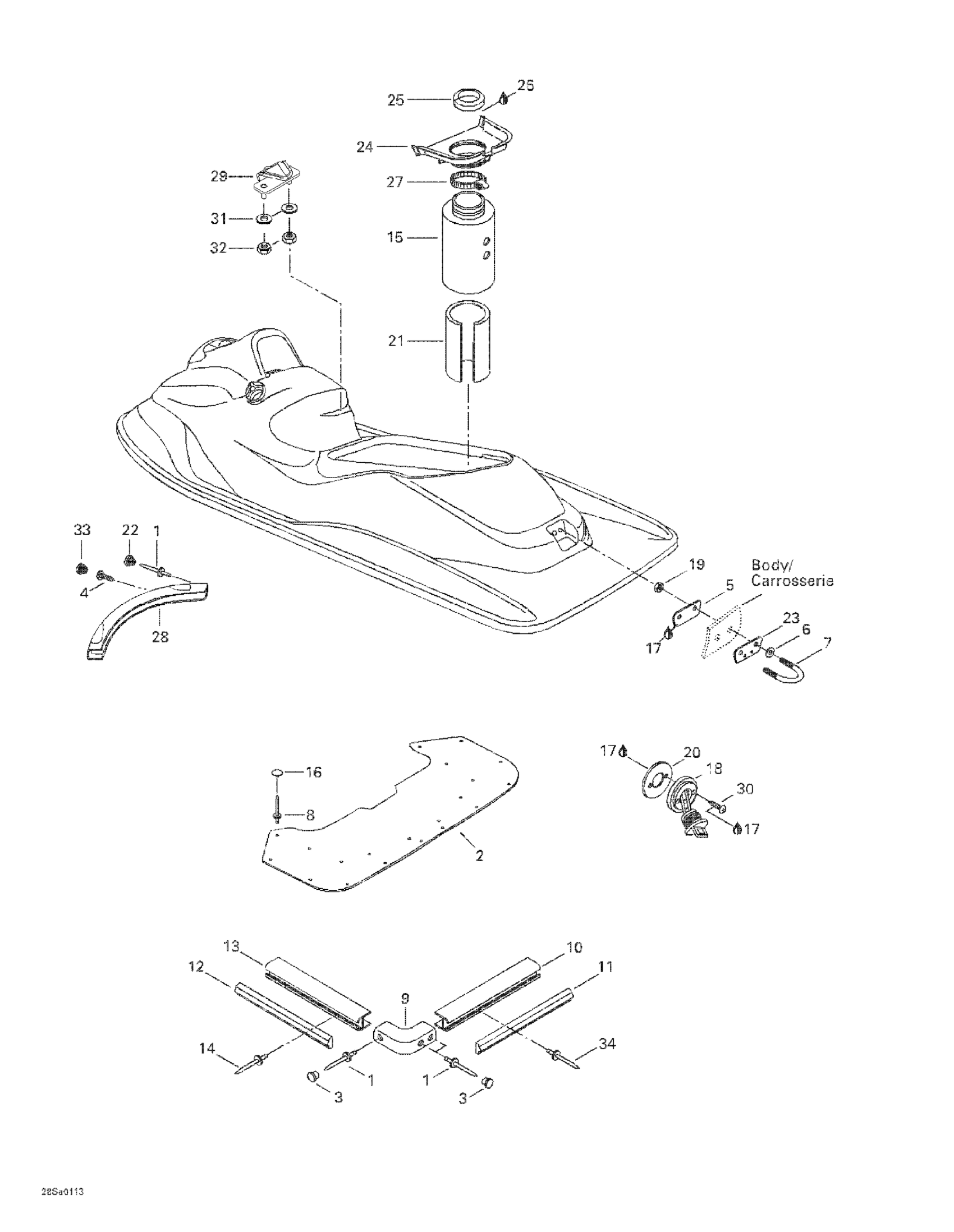

Sea-doo GS, 5548, 2001 Body, Rear View Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.27

2

Rear Carpet (Black)

291001185

Unavailable

3

Bumper Plug, Black

291000339

$2.69

4

Phillips Screw 10-14 X 7/8”

211000037

Unavailable

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Flat Washer M8.5 x 18

293050001

$1.48

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner

291002244

$44.00

10

REAR BUMPER, BLACK - Call your local BRP dealership

291002242

Unavailable

11

REAR BUMPER TRIM (BLACK) - Call your local BRP dealership

291001192

Unavailable

12

SIDE BUMPER TRIM (BLACK) - Call your local BRP dealership

291001190

Unavailable

13

Black, Side Bumper

204050270

$167.13

14

Pop Rivet 3/16"

293150014

$1.00

15

REAR VENT HOSE - Call your local BRP dealership

291001103

Unavailable

16

Black, Snap Cap

293000014

$0.97

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

Drain Plug

292000187

$11.72

19

Hex. Elastic Nut M8

232581600

$1.43

20

GASKET - Call your local BRP dealership

293250030

Unavailable

21

Sound Damping

291000400

Unavailable

22

Bumper Plug, Black

291001040

Unavailable

23

Finition Plate

291000544

Unavailable

24

Hose Support | Includes 24 - 26.

291001150

Unavailable

24

Vent Hose Adaptor

291001105

Unavailable

25

Was 293200017 Neoprene Seal

219704365

$135.79

26

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

27

Tridon Clamp

293650054

$8.63

28

BUMPER NOSE, BLACK - Call your local BRP dealership

291001942

Unavailable

29

Seat Hook

291001479

Unavailable

30

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.73

32

Hex. Elastic Stop Nut M6

232561600

$1.06

33

Bumper Plug, Black

291001519

$4.91

34

Pop Rivet 3/16"

293150039

$1.31
