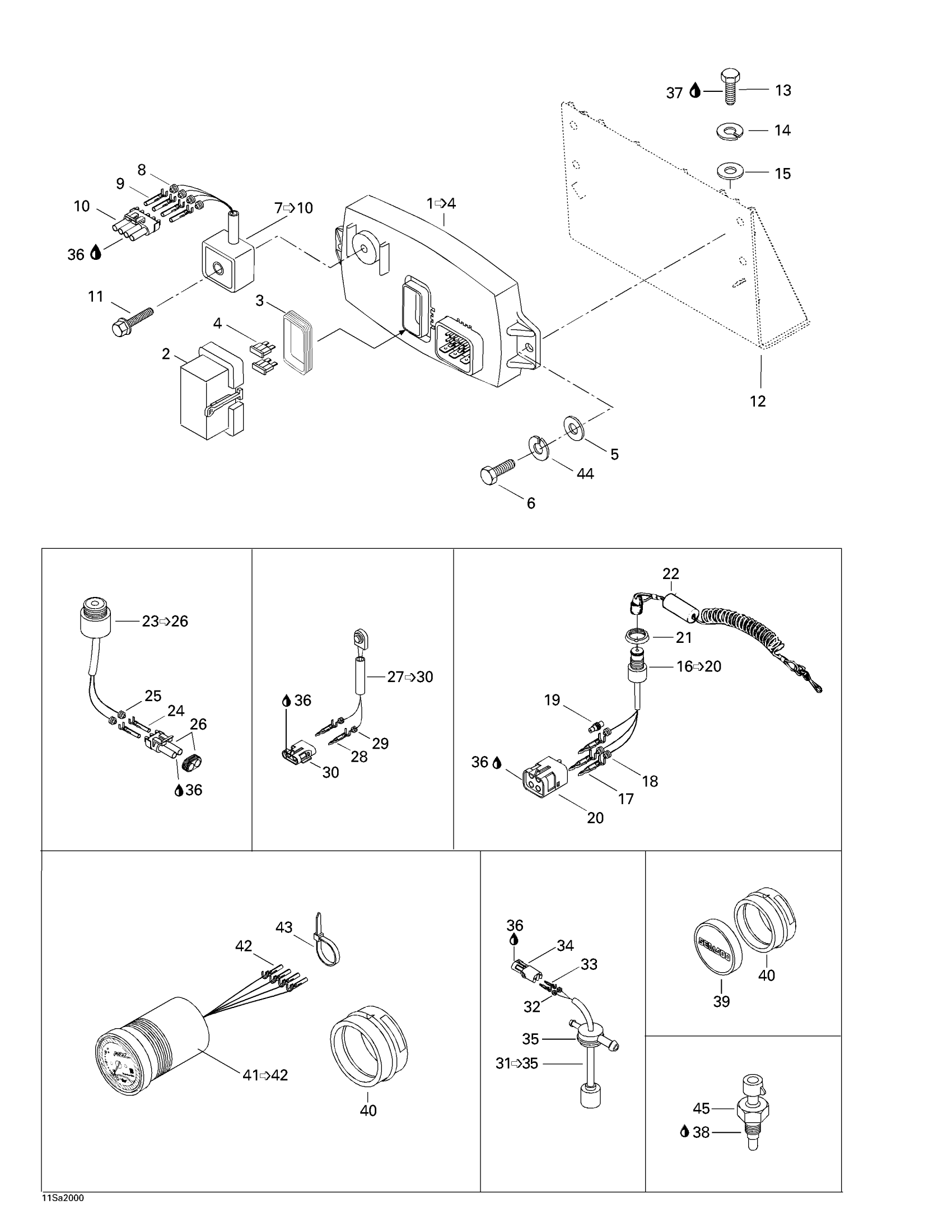

Sea-doo GS, 5518/5519, 2001 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 1 - 4.

278001496

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.28

Fuse, 5 Amperes | CE

278000344

$3.28

5

Flat Washer M6, Stainless

234062600

$0.77

6

Hex. Screw M6 X 16

207161660

$1.59

7

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

8

Wire Seal

278000218

$4.39

9

Female Terminal

409007300

$0.45

10

Male Housing, 4 Circuits

278000395

$15.99

11

Hex. Tapping Screw

211000139

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

14

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

15

Flat Washer 5 mm, Stainless

234052600

$0.77

16

Safety Switch | Includes 15 - 19.

278000977

Unavailable

17

Male Terminal | XT Models

278000222

$3.19

18

Wire Seal

278000218

$4.39

19

Wire Seal

278000216

$3.19

20

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

21

Safety Nut (DESS Switch)

278002963

$3.28

22

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

23

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

24

Female Terminal

278000223

$3.19

25

Wire Seal

278000218

$4.39

26

Male Connector, 2 Circuits

278000220

$15.49

27

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001358

Unavailable

28

Male Terminal | XT Models

278000222

$3.19

29

Wire Seal

278000218

$4.39

30

Female Housing, 2 Circuits

278000217

$9.59

31

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

32

Wire Seal

278000218

$4.39

33

Male Terminal | XT Models

278000222

$3.19

34

Female Housing, 2 Circuits

278000217

$9.59

35

Grommet

293720008

$14.75

36

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

37

Loctite 271, 10 ml

293800005

$26.99

38

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

39

Gauge Cap

293000092

Unavailable

40

Gauge Support

293720047

Unavailable

41

Oil / Fuel Level Gauge | Includes 41 - 42.

278001365

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

43

Tie Wrap 142 mm

293750002

$1.25

44

Lock Washer Helical M6

234161601

$1.15

45

Temperature Sensor

278000965

$73.99
