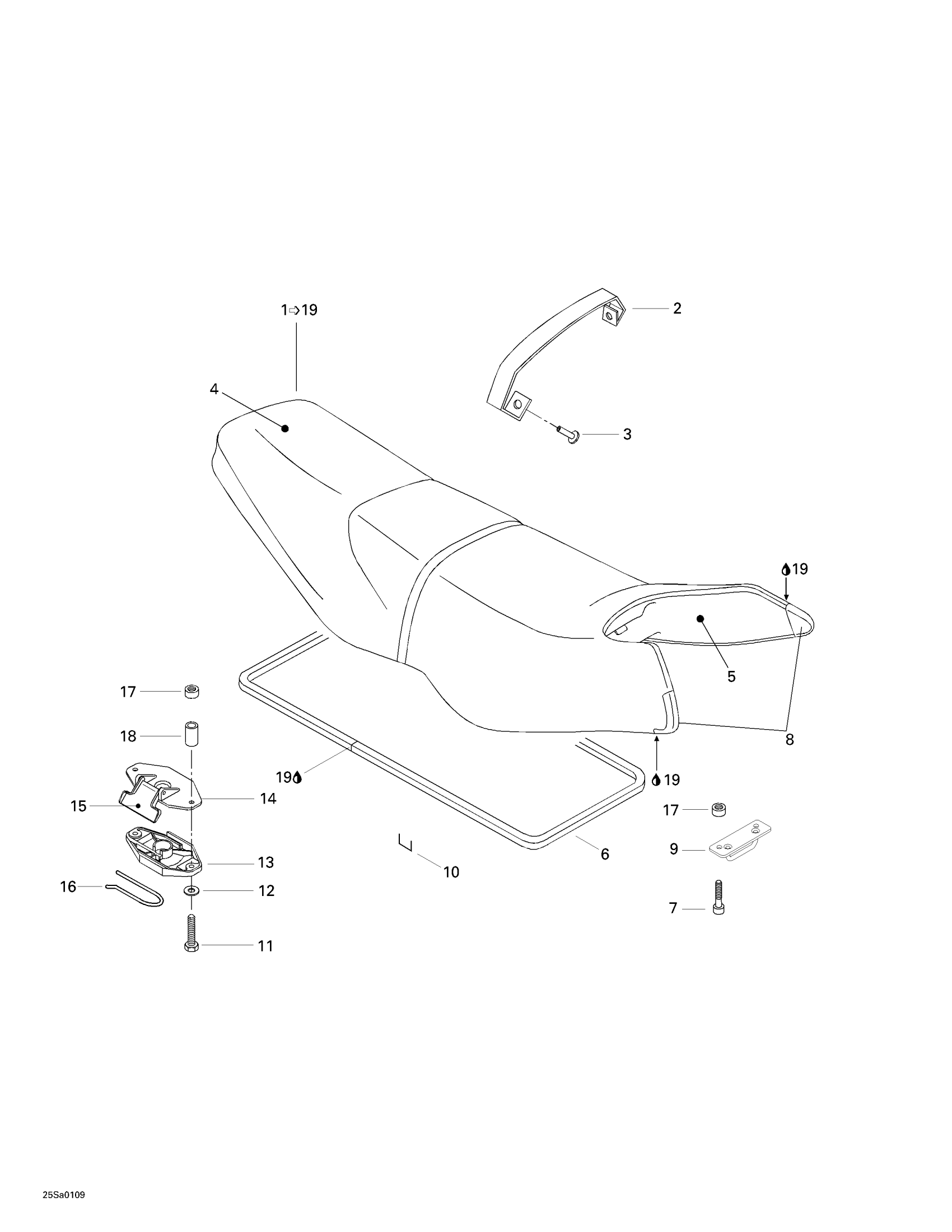

Sea-doo GS, 5518/5519, 2001 Seat And Engine Cover Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 - 19.

269000693

Unavailable

2

Seat Strap

269000694

Unavailable

3

Rivet | Model-T3

293150067

$2.89

4

Seat Cover with Foam

269000702

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

8

RH Corner Seat

269000696

Unavailable

LH Corner Seat

269000695

Unavailable

9

Hook (Seat Base)

291001357

Unavailable

10

Staple

293730005

Unavailable

11

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

Latch Ass'y

269700109

$24.99

15

Latch Ass'y

269700109

$24.99

16

Latch Spring

269700017

$9.19

17

Nut Welded, M6

293100003

$9.12

18

SPACER - Call your local BRP dealership

291000532

Unavailable

19

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
