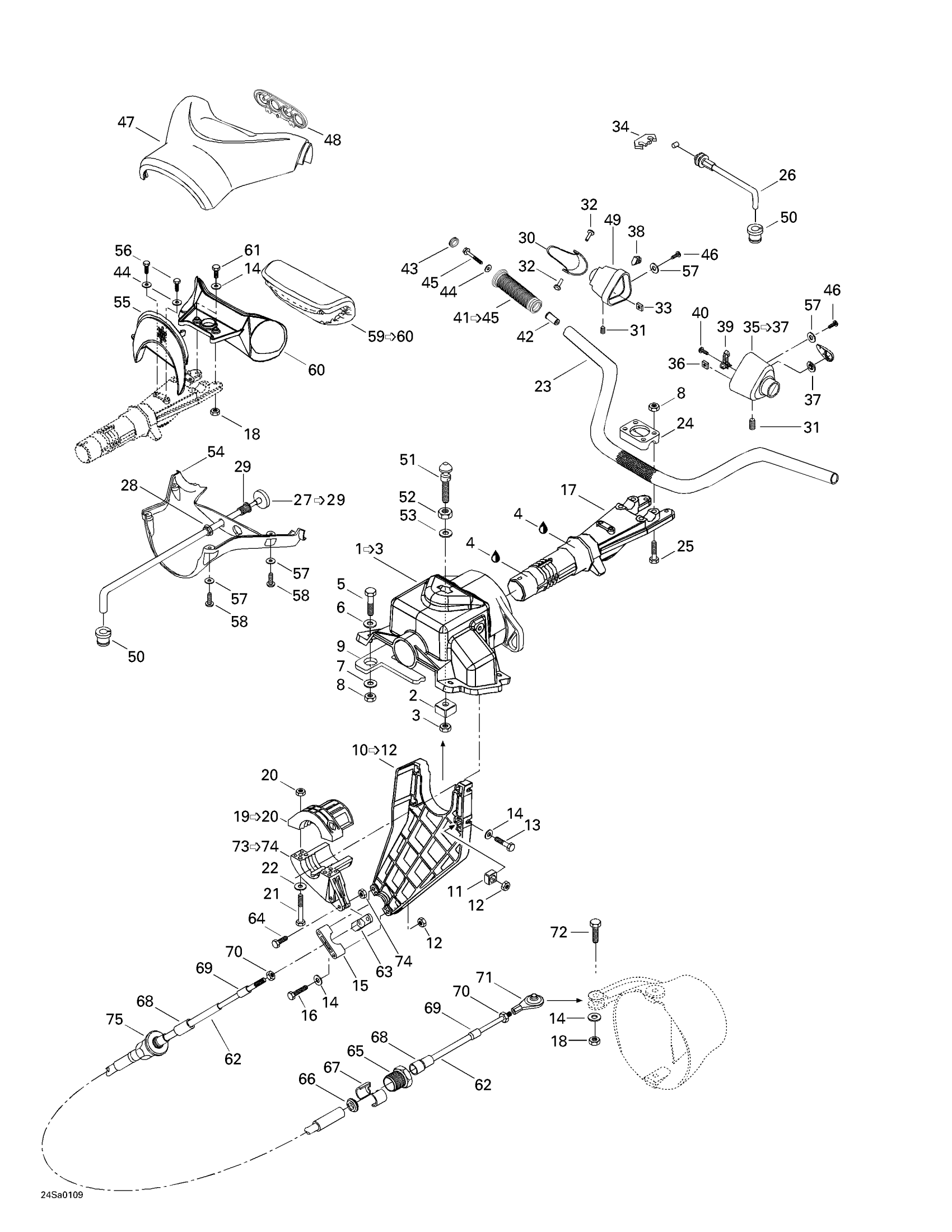

Sea-doo GS, 5518/5519, 2001 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

2

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Hex. Screw M8 X 35

207083560

$1.47

6

Stainless, Flat Washer 8 mm

234081600

$0.55

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Hex. Elastic Nut M8

232581600

$1.48

9

Gasket

293250069

Unavailable

10

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Hex. Forming Screw M6 X 20

207162060

$1.29

14

Stainless Flat Washer M6

234061600

$0.33

15

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

16

Hex. Screw M6 X 50

207065060

$2.22

17

Steering Stem

277000562400

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Arm Thrust | Includes 43 to 44

277000519

Unavailable

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Hex. Screw M6 X 25

207162560

$1.47

22

Flat Washer M6, Stainless

234062600

$0.77

23

Handlebar

277000824

Unavailable

24

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

25

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

26

THROTTLE CABLE - Call your local BRP dealership

277000727

Unavailable

27

CHOKE CABLE - Call your local BRP dealership | Includes 12 - 16.

270000728

Unavailable

28

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Throttle Handle

277000214

Unavailable

31

Socket Head Screw M6 X 16

250000036

$9.00

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

34

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

35

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

36

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

37

Switch Knob

277000306

Unavailable

38

INSERT - Call your local BRP dealership

293450153

Unavailable

39

Retainer Plate

277000845

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Black, Cap

277000203

$9.39

44

Flat Washer M6, Stainless

234062600

$0.77

45

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

46

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

47

Upper Steering Cover | Includes 47 - 48.

277000923

Unavailable

48

Steering Plate | STD

277000823

Unavailable

49

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

50

Grommet

293720046

Unavailable

51

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

52

Hex. Jam Nut M10

232100600

$2.22

53

Flat Washer 10 mm, Stainless

234002600

$2.22

54

Lower Steering Cover

277000925

Unavailable

55

PLATE - Call your local BRP dealership

277000549

Unavailable

56

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

57

Flat Washer M5, Stainless

234051600

$0.77

58

Hex. Flange Screw K40 X 16

241141660

$1.48

59

Pad-Handle | Includes 59 - 60.

277000723

Unavailable

60

Handle Bar Pad Support

277000687

Unavailable

61

Hex. Screw M6 X 30

207063060

$1.89

62

Steering Cable

271000436

Unavailable

63

Joint

277000646

Unavailable

64

Hex. Screw M6 X 30

211000081

$3.59

65

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

66

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

67

Half Ring

277000055

$9.49

68

Boot, Large

277000473

Unavailable

69

Boot, Small

277000466

Unavailable

70

Hex. Nut

212100005

$1.35

71

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

72

Hex. Screw M6 X 30

207063060

$1.89

73

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

74

Hex. Elastic Stop Nut M6

232561600

$1.15

75

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable
