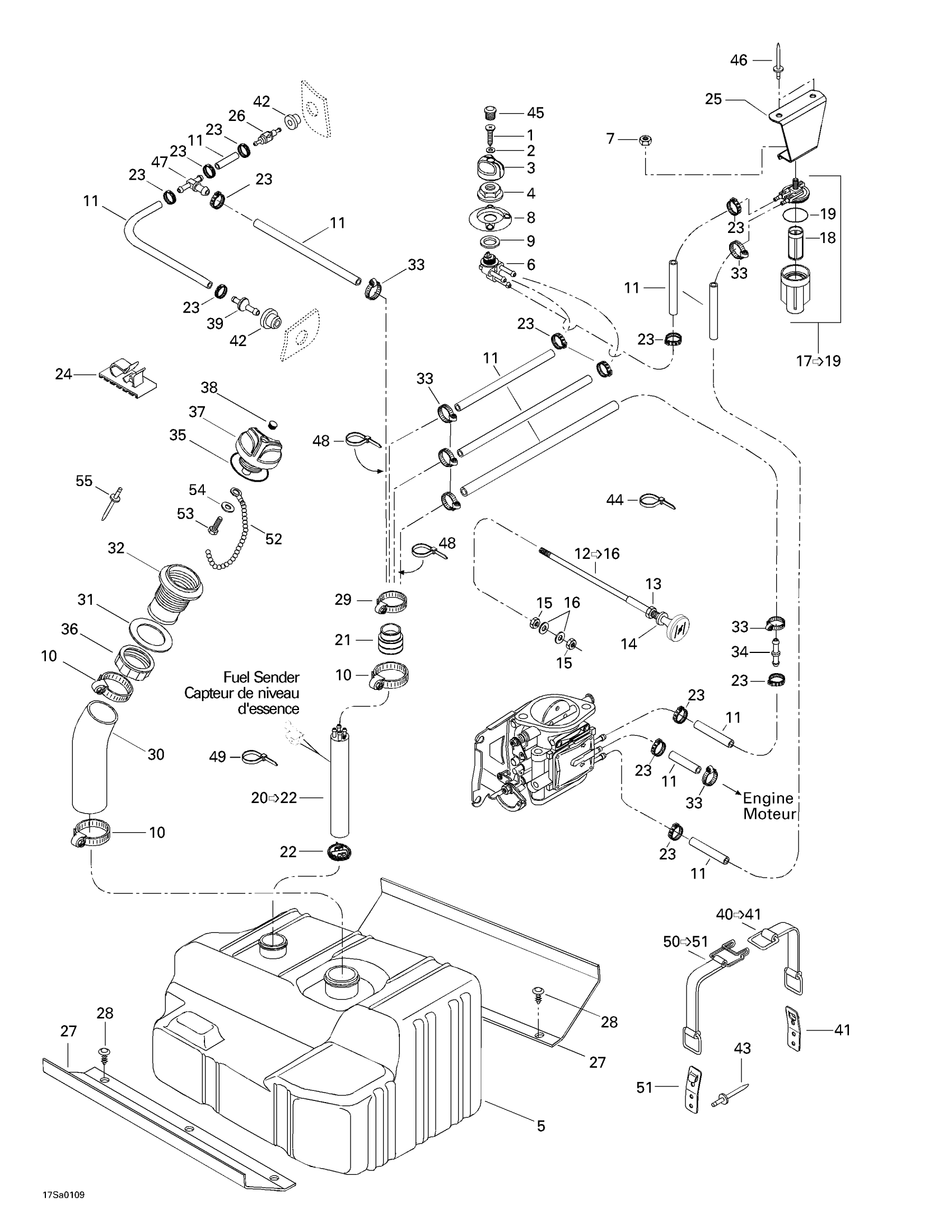

Sea-doo GS, 5518/5519, 2001 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.55

3

Fuel Valve Knob

275500487

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Fuel Tank

275500291

Unavailable

6

Fuel Valve

275500098

$43.99

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Fuel Valve Plate

275500486

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$13.49

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

CHOKE CABLE - Call your local BRP dealership | Includes 12 - 16.

270000728

Unavailable

13

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Hex. Nut M6

232160600

$1.15

16

Stainless Flat Washer M6

234061600

$0.33

17

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

18

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

19

O-Ring

275500090

$8.79

20

Baffle Pick Up | Includes 20 - 22.

275500534

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Oetiker Clamp

293650042

$3.09

24

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

25

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

26

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

27

Rubber Pad

293830077

Unavailable

28

Black, Dart

293730006

$0.99

29

Tridon Clamp

293650035

$7.29

30

Filler Neck Hose

275500295

Unavailable

31

Gasket

293250029

$14.82

32

Filler Neck, Fuel

275500231

$14.75

33

Tridon Gear Clamp

293650170

$1.99

34

Straight Fitting

293710039

$7.59

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$14.22

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

38

Black, Snap Cap

293000034

$9.39

39

Check Valve

275500398

$10.99

40

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

41

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

42

Grommet

293720029

$1.59

43

Avdel Rivet 3/16"

293150037

$0.56

44

Tie Wrap 368 mm

293750008

$1.04

45

Bumper Plug, Black

291000339

$2.99

46

Pop Rivet 3/16"

293150043

$2.09

47

T-Fitting | Europe

293710024

$14.75

48

Tie-Rap 180 mm

414115200

$0.11

49

Tie Wrap 94 mm | 4X4

293750001

$1.03

50

Strap | Includes 69 - 70.

293850025

Unavailable

51

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

52

Fuel Cap Chain

275500974

$19.99

53

Screw K40 X 10

241140060

$1.48

54

Flat Washer M3, Stainless

234032600

$0.55

55

Pop Rivet 1/8"

390407900

$1.49
