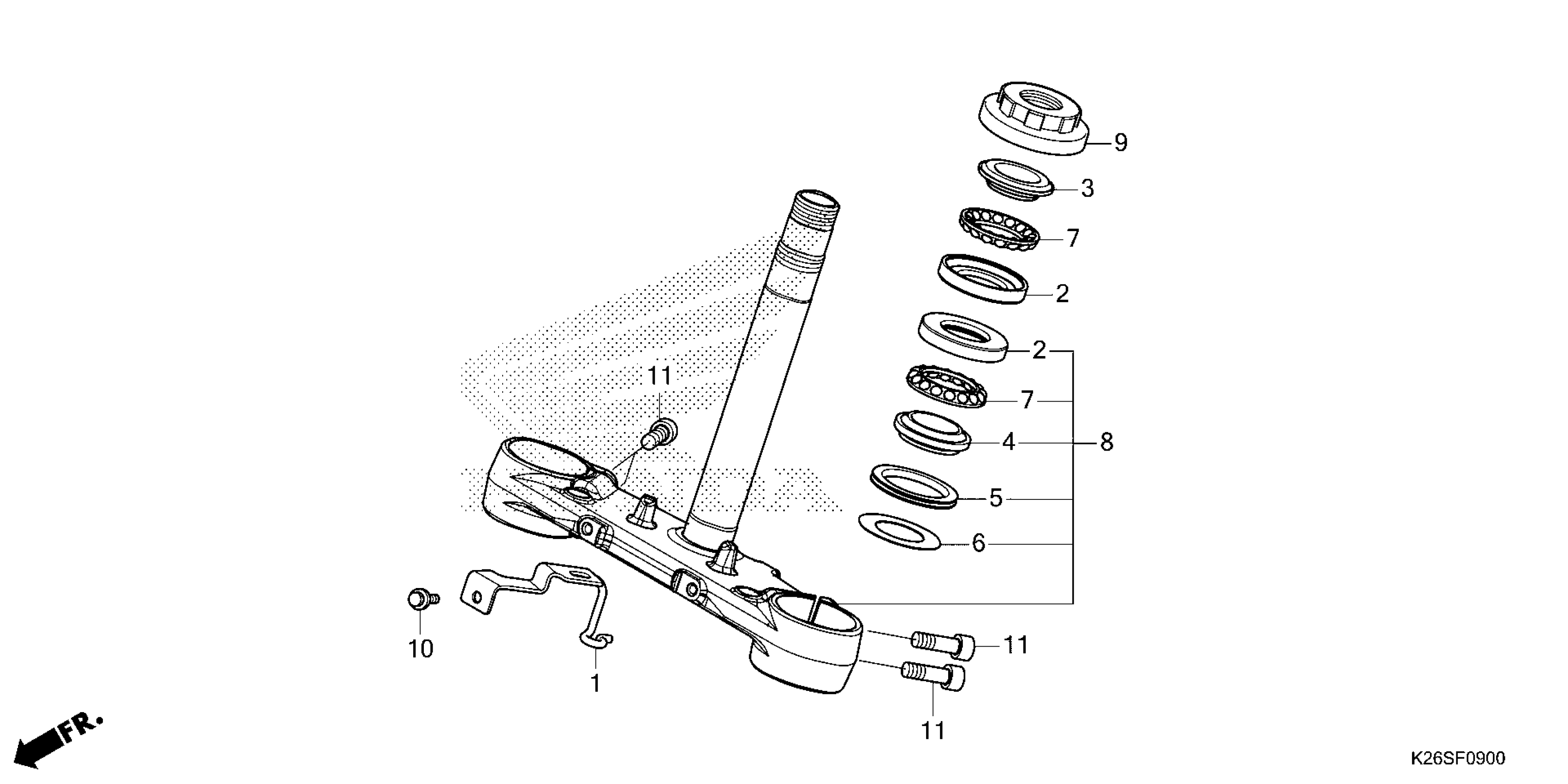

Honda GROM125AC (25) MOTORCYCLE, THA, VIN# MLHJC921-S5300001 TO MLHJC921-S5399999 STEERING STEM Diagram

#

Description

Price

1

STAY, HORN WIRE

38112-K26-G00

$5.75

2

RACE, STEERING TOP BALL

50301-KTR-900

$6.36

3

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

4

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$19.80

4

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

5

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

6

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

7

BALL ASSY., STEERING STEEL

53215-KTR-900

$14.34

8

STEM SUB-ASSY., STEERING

53219-K26-G00

$167.95

9

THREAD, STEERING HEAD TOP

53220-KE8-010

$31.86

10

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

11

BOLT, SOCKET (8X25)

96600-08025-00

$2.02
