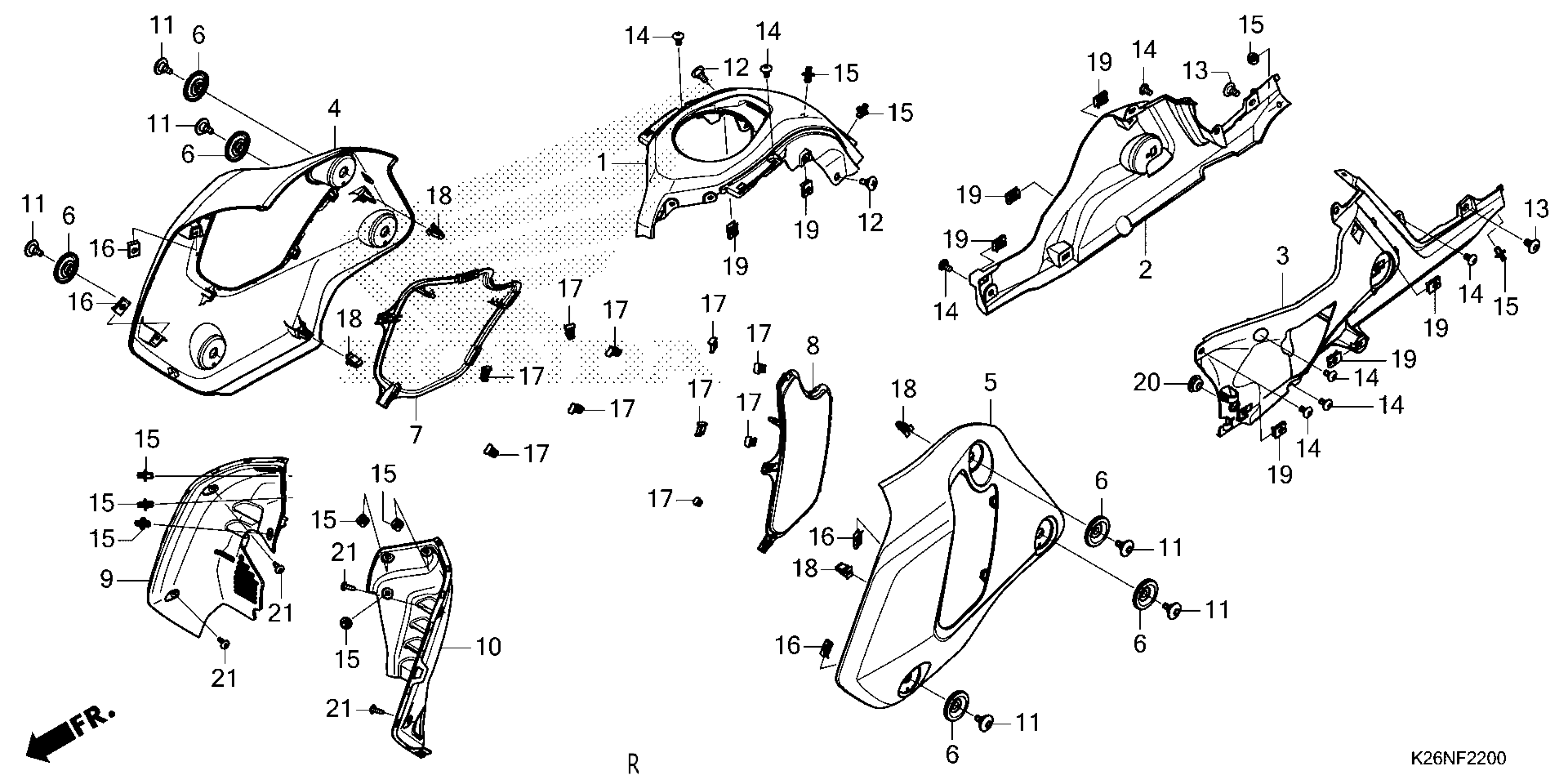

Honda GROM125AC (22) MOTORCYCLE, THA, VIN# MLHJC921-N5000001 TO MLHJC921-N5099999 SHROUD Diagram

COVER, FUEL TANK

64450-K26-G00

$8.97

COVER, R. FUEL TANK

64470-K26-G00

$11.92

COVER, L. FUEL TANK

64570-K26-G00

$12.67

SHROUD SET A, R. (TYPE3) (WL)

83450-K26-G00ZC

$31.69

SHROUD SET A, R. (TYPE1) (WL)

83450-K26-G00ZE

$24.74

SHROUD SET A, L. (TYPE3) (WL)

83460-K26-G00ZC

$31.69

SHROUD SET A, L. (TYPE1) (WL)

83460-K26-G00ZE

$24.74

GARNISH, BOLT *NHA40M* (MAT KRYPTON SILVER METALLIC)

83495-K26-G00ZC

$3.18

SHROUD B, R. *NHA35M* (WOL) (ASTEROID BLACK METALLIC)

83545-K26-G00ZD

$21.01

SHROUD B, L. *NHA35M* (WOL) (ASTEROID BLACK METALLIC)

83555-K26-G00ZD

$21.01

SHROUD, R. (INNER)

83560-K26-G00

$4.53

SHROUD, L. (INNER)

83570-K26-G00

$4.58

SCREW, PAN (5X14)

90102-K26-G00

$1.49

SCREW, SPECIAL (5MM)

90104-KPH-900

$1.49

SCREW, PAN (6X12)

90106-K26-900

$1.49

SCREW, VISOR SPECIAL SETTING

90115-KWW-620

$1.49

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

CLIP, SLIDE

90651-K14-A31

$1.49

CLIP, SNAP FITTING (PO)

90666-K59-A11

$1.49

NUT, CLIP (5MM)

90677-KAN-961

$4.07

PLUG, HOLE

90852-KPP-T00

$1.66

SCREW, TAPPING (4X12)

93903-24380

$1.49
