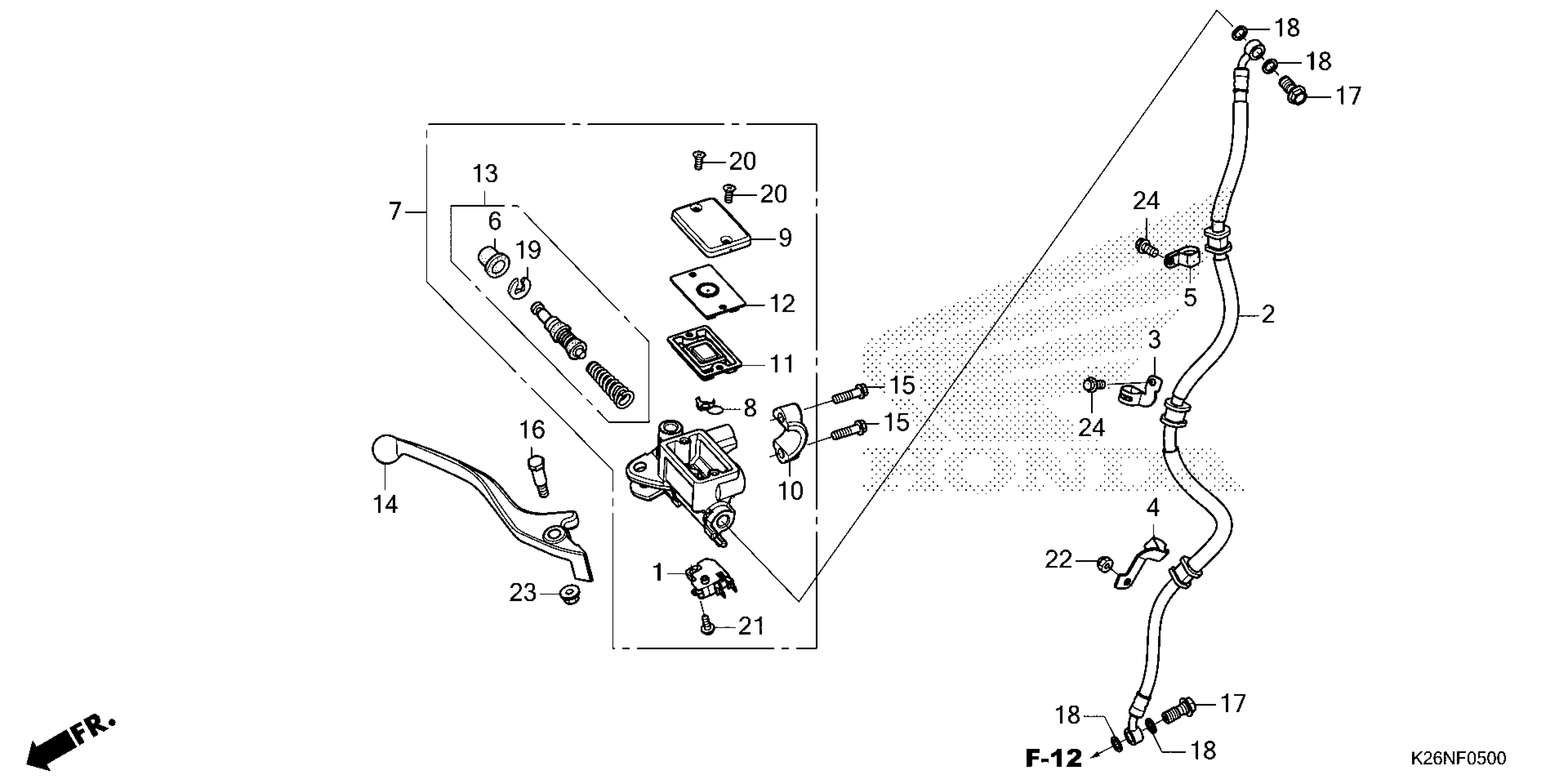

Honda GROM125AC (22) MOTORCYCLE, THA, VIN# MLHJC921-N5000001 TO MLHJC921-N5099999 FRONT BRAKE MASTER CYLINDER 1 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE, FR. BRAKE

45125-K26-G11

$21.63

3

CLAMP A, FR. BRAKE HOSE

45156-K26-G00

$1.97

4

CLAMP B, FR. BRAKE HOSE

45157-K26-900

$3.32

5

CLAMP C, FR. BRAKE HOSE

45159-K26-G00

$1.60

6

BOOT

45504-410-003

$11.17

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$100.43

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-K26-901.

45510-K26-305

$100.43

8

PROTECTOR

45512-MA6-006

$4.09

9

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

10

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

11

DIAPHRAGM

45520-GE2-006

$8.57

12

PLATE, DIAPHRAGM

45521-K21-901

$2.10

13

MASTER CYLINDER SET

45530-471-831

$36.42

14

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

14

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

Unavailable

15

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

16

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

17

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

18

WASHER, OIL BOLT

90545-300-000

$5.79

19

CIRCLIP

90651-MA5-671

$2.38

20

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

21

SCREW-WASHER (4X12)

90508-K21-921

$0.24

21

SCREW-WASHER (4X12)

93893-04012-07

$1.32

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

22

NUT, CAP (6MM)

94021-06070-0S

$1.60

23

NUT, FLANGE (6MM)

94050-06000

$0.60

24

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79
