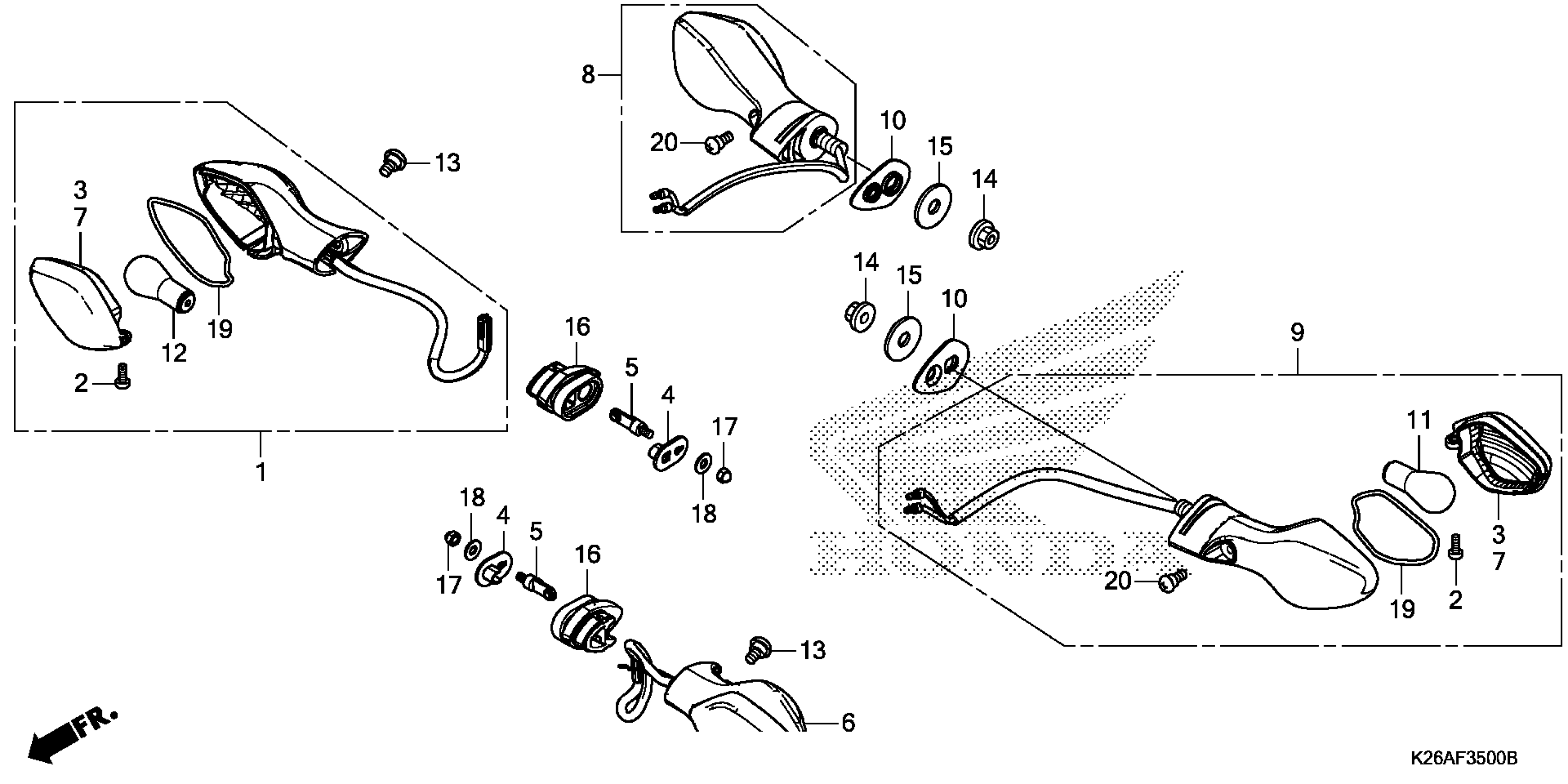

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (12V 21/5W)

33400-K26-923

$58.03

2

SCREW, SPECIAL (4X10)

33402-MGS-D31

$1.00

3

LENS, R. TURN SIGNAL (R. FR./L. RR.)

33404-MGS-J32

$2.80

4

PLATE, TURN SIGNAL (FR.)

33411-MGZ-J00

$1.28

5

STAY, TURN SIGNAL (FR.)

33412-MGZ-J00

$15.53

6

TURN SIGNAL ASSY., L. FR. (12V 21/5W)

33450-K26-923

$58.03

7

LENS, L. TURN SIGNAL (L. FR./R. RR.)

33454-MGS-J32

$2.80

8

TURN SIGNAL ASSY., R. RR. (12V 21W)

33600-K26-923

$61.41

9

TURN SIGNAL ASSY., L. RR. (12V 21W)

33650-K26-923

$17.87

10

PLATE, TURN SIGNAL (RR.)

33941-K26-950

$6.96

11

BULB, TURN SIGNAL (12V 21W) (TOSHIBA)

34905-MGS-J31

$4.67

12

BULB, TAILLIGHT (P21/5W) (LIFE ELEX) (FR. WINKER)

34906-MGZ-J01

$6.24

13

SCREW, SPECIAL (6X8)

90380-MGS-D30

$3.26

14

NUT, FLANGE (10MM)

94050-10000

$1.41

15

WASHER, PLAIN (10MM)

94101-10000

Unavailable

16

RUBBER, TURN SIGNAL MOUNTING

33613-MGZ-J00

$6.69

17

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.65

17

NUT, CAP (6MM)

94021-06020

$1.65

17

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.65

17

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.65

18

WASHER, PLAIN (6MM)

94101-06700

$0.86

19

SEAL, GASKET

33405-MKA-D81

$0.49

20

SCREW, SPECIAL (6X11)

90380-KZZ-900

$3.73
