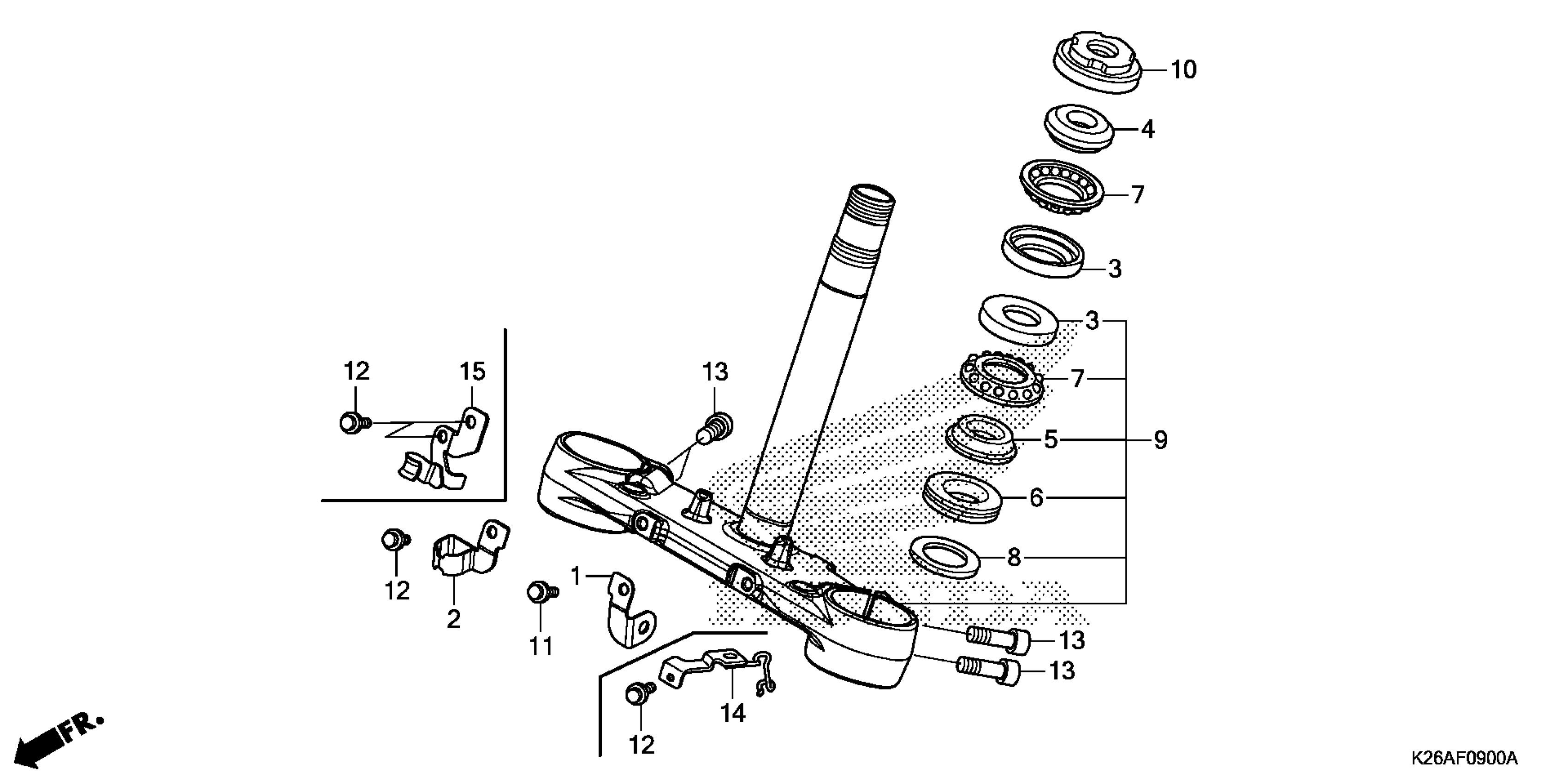

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 STEERING STEM Diagram

STAY, HORN WIRE

38112-K26-900

$1.90

CLAMP A, FR. BRAKE HOSE

45156-K26-900

$2.23

RACE, STEERING TOP BALL

50301-KTR-900

$6.36

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$19.80

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

BALL ASSY., STEERING STEEL

53215-KTR-900

$14.34

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

STEM SUB-ASSY., STEERING

53219-K26-C10

$134.70

THREAD, STEERING HEAD TOP

53220-KE8-010

$31.86

BOLT, FLANGE (6X10)

90013-GHB-600

$4.48

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, SOCKET (8X25)

96600-08025-00

$2.02
