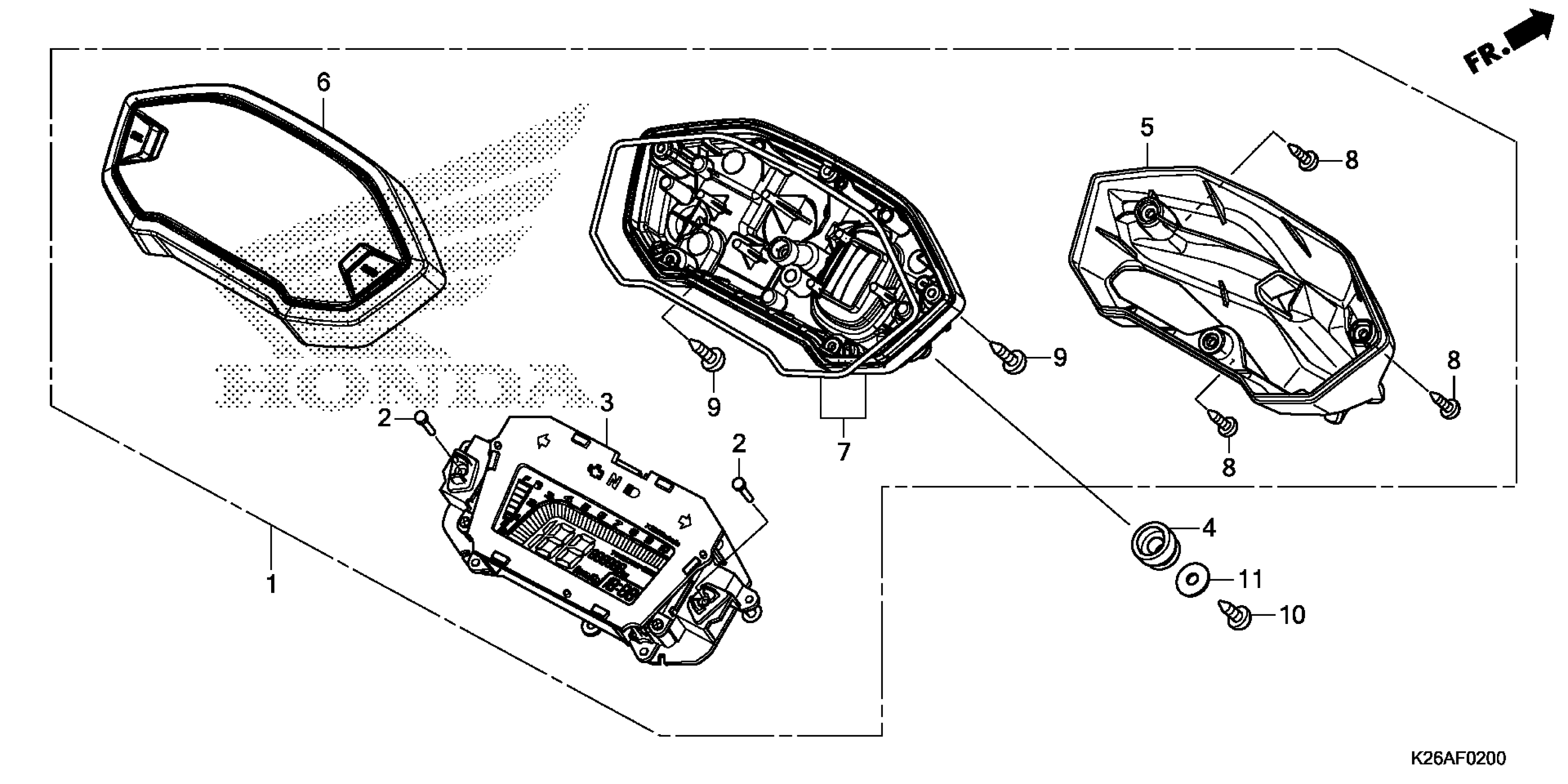

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 SPEEDOMETER Diagram

#

Description

Price

1

METER ASSY., COMBINATION (MPH/KPH) This part replaces 37100-K26-B11.

37100-K26-B12

$219.61

1

METER ASSY., COMBINATION (MPH/KPH)

37100-K26-B12

$219.61

2

KEY, TOP

37104-MGZ-D00

$1.49

3

METER, LCD

37130-K26-B11

$158.56

4

RUBBER, METER SETTING

37215-KZZ-900

$1.49

5

COVER

37500-K26-B01

$16.66

6

CASE ASSY. (UPPER)

37610-K26-901

$56.89

7

CASE LOWER ASSY. This part replaces 37620-K26-901.

37620-K26-902

$33.43

8

SCREW, TAPPING (4X14)

90032-KW3-008

$3.12

9

SCREW, TAPPING (3X16)

93903-22420

$1.49

10

SCREW, TAPPING (5X14) (PO)

93913-25380

$1.49

11

WASHER, PLAIN (5MM)

94103-05700

$1.49
