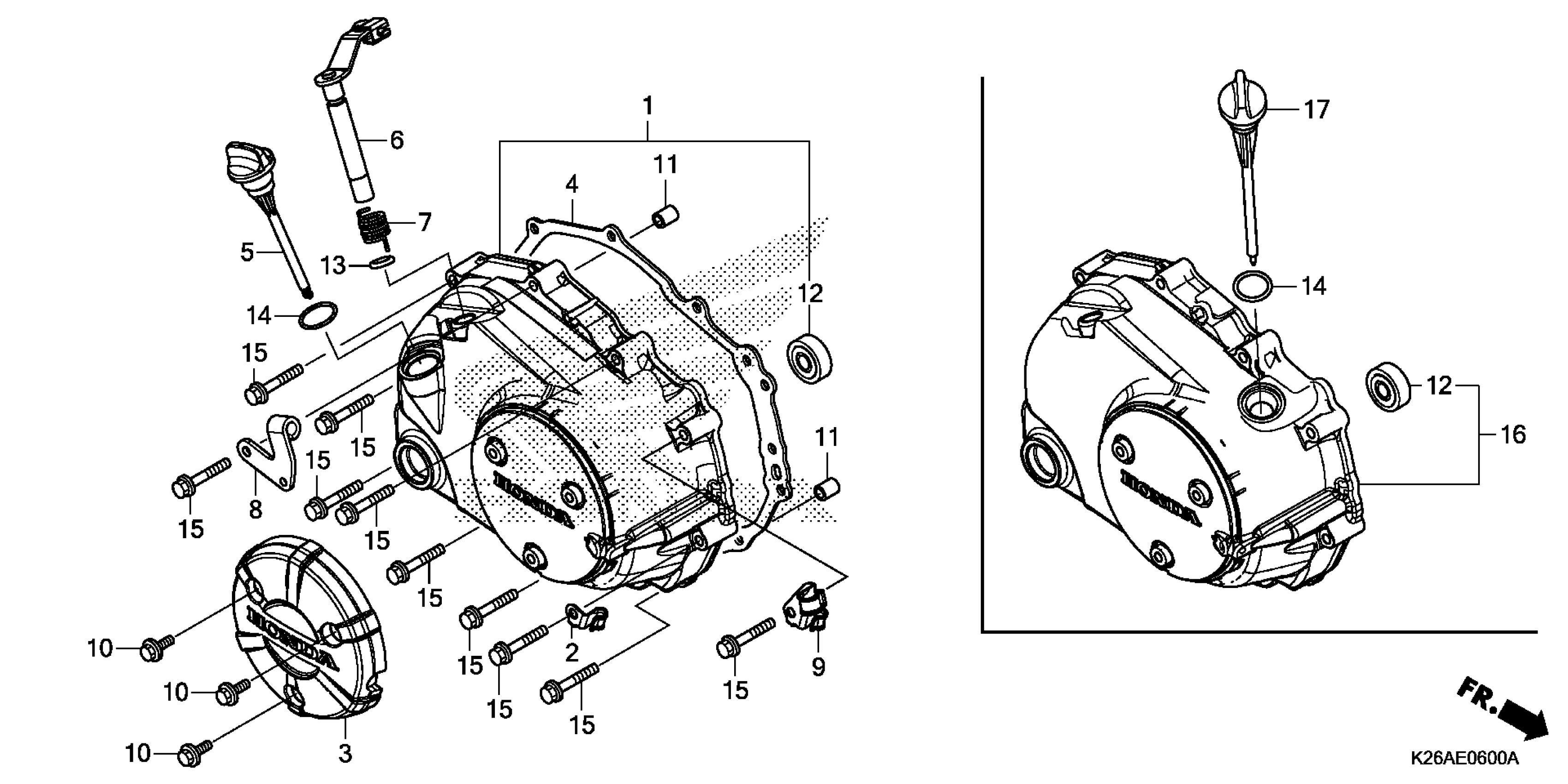

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 RIGHT CRANKCASE COVER Diagram

CLAMP A, OIL TEMP SENSOR CORD

11346-KTR-940

$0.77

PROTECTOR, R. COVER

11370-K26-B00

$7.38

GASKET, R. CRANKCASE COVER

11394-KYZ-900

$6.89

LEVER, CLUTCH

22810-K26-C00

$26.19

SPRING, CLUTCH LEVER

22815-166-000

$3.13

RECEIVER, CLUTCH CABLE

22821-K26-900

$6.19

CLIP, IGNITION WIRE & SENSOR

32906-KWB-600

$0.78

BOLT, FLANGE (6X12) (NSHF)

90005-K26-B00

$0.90

PIN, DOWEL (8X12)

90702-KFM-900

Unavailable

BEARING, RADIAL BALL SPECIAL (6001U)

91007-KPH-901

$24.07

O-RING (8.8X1.9)

91305-K26-900

$0.49

O-RING (18X3)

91307-KRM-840

$0.75

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

COVER, R. CRANKCASE

11330-K26-C00

$53.22

DIPSTICK, OIL

15651-K26-C00

$4.64
