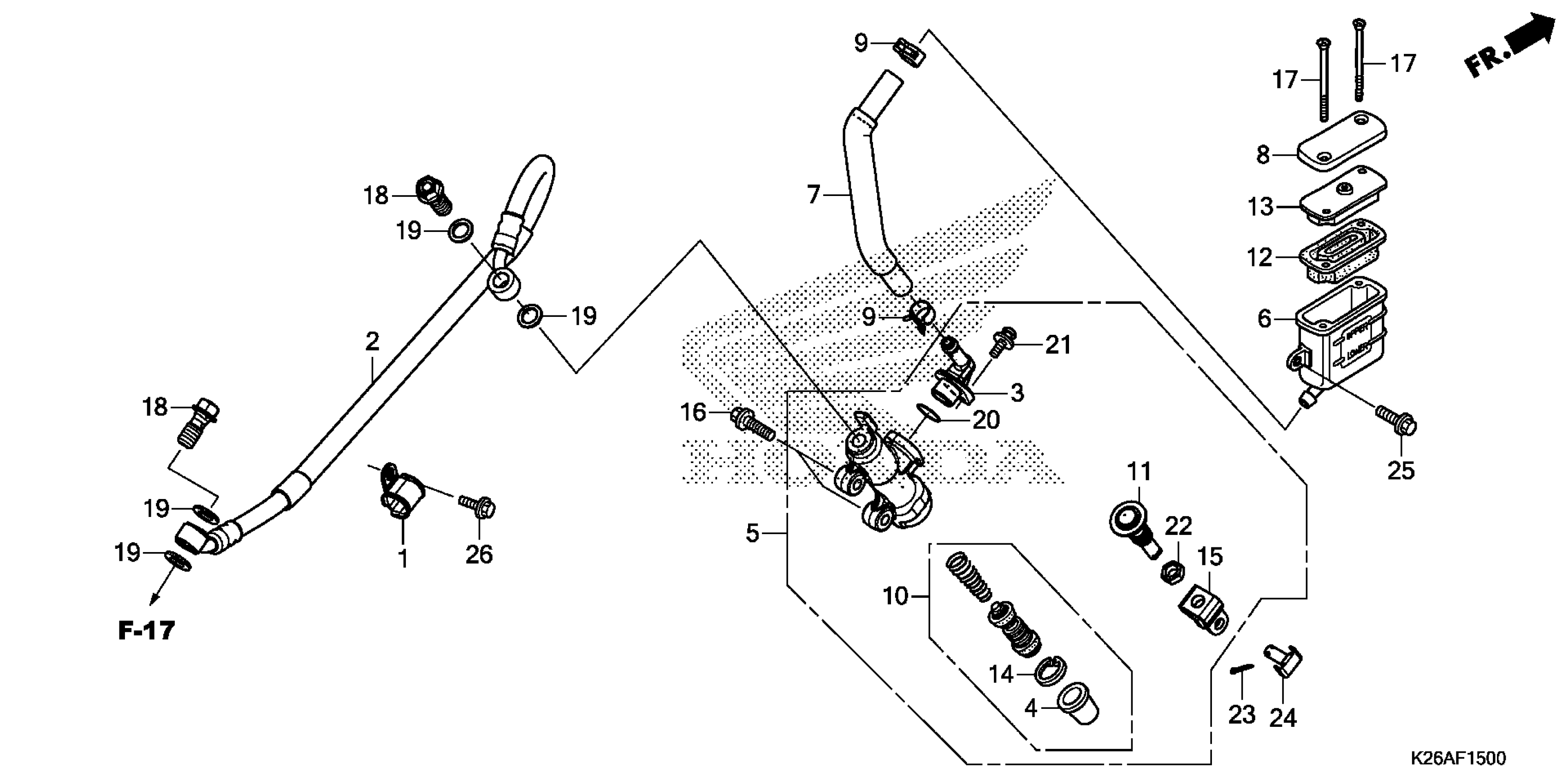

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP, RR. BRAKE HOSE

43155-K26-900

$2.66

2

HOSE, RR. BRAKE

43310-K26-B11

$19.30

3

CONNECTOR

43503-MR7-006

$14.04

4

BOOT

43504-MB2-006

$10.04

5

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K26-B01

$98.34

6

CUP, OIL (NISSIN)

43511-KW7-881

$18.13

7

HOSE, RR. MASTER CYLINDER

43512-K26-901

$15.00

8

CAP, MASTER CYLINDER

43513-KTY-C01

$6.18

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

11

ROD, PUSH

43530-KV3-831

$22.82

12

DIAPHRAGM

45520-GW0-911

$7.28

13

PLATE, DIAPHRAGM

45521-GW0-911

$5.72

14

CIRCLIP

46182-MEL-D21

$1.93

15

JOINT, BRAKE ROD

46504-KV6-702

$7.84

16

BOLT, FLANGE (6X22) (SH)

90101-K26-B00

$1.49

17

SCREW, FLAT (4X45)

90140-KZZ-901

$6.27

18

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

O-RING (14.8X2.4)

91212-422-006

$2.56

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

PIN, COTTER (2.0X12)

94201-20120

$1.49

24

PIN D, JOINT

95015-54000

$4.24

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

26

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
