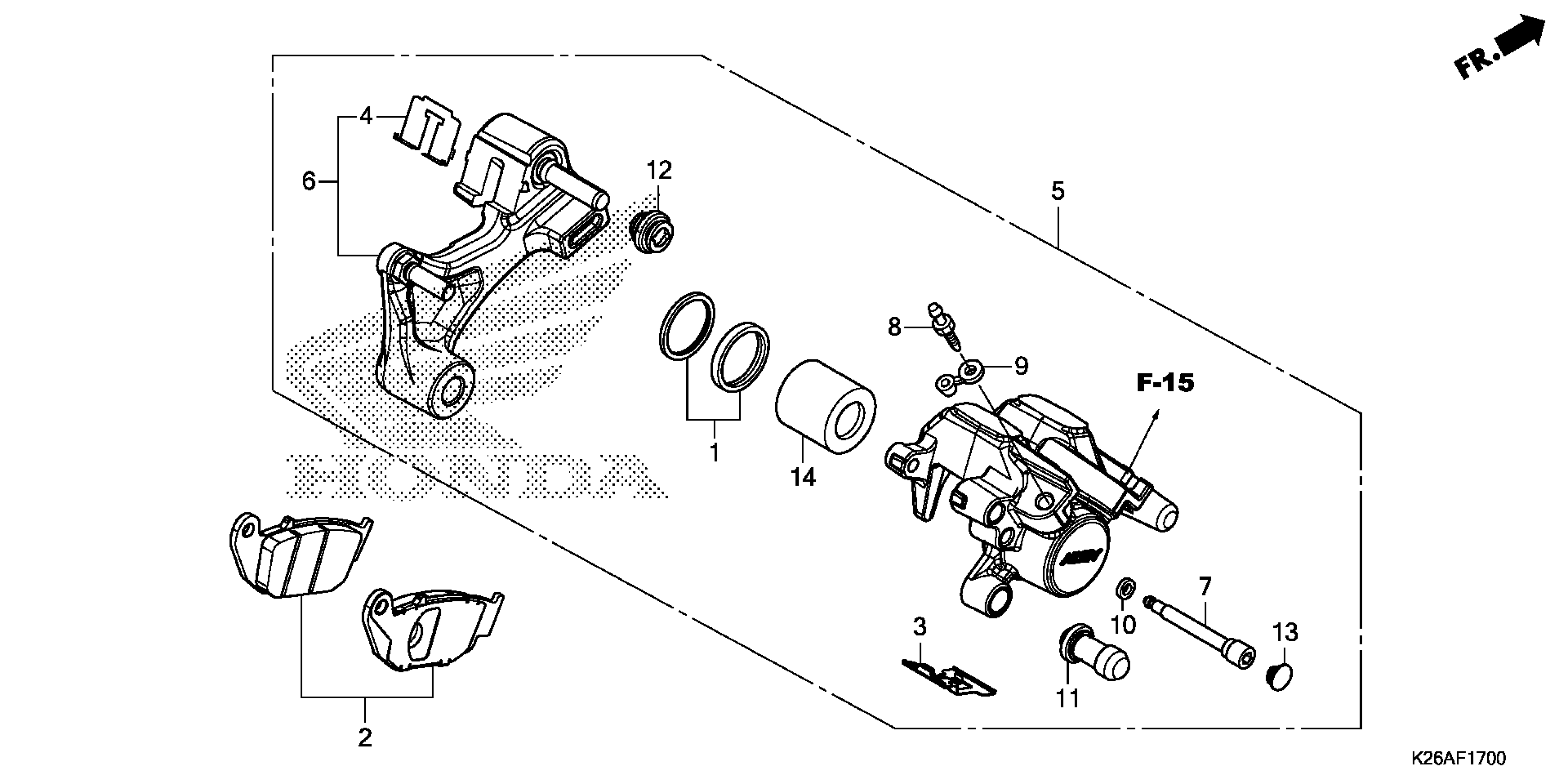

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

PAD SET, RR.

06435-K26-921

$23.83

3

SPRING, PAD (NISSIN)

43108-KSP-B51

$4.68

4

RETAINER

43112-KZZ-901

$7.54

5

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-K26-B11

$125.61

6

BRACKET SUB-ASSY., RR.

43190-K26-901

$73.21

7

PIN, HANGER

43215-KGH-901

$2.92

8

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

RING, STOPPER

45111-MAJ-G41

$3.80

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

12

BOOT B

45133-MA3-006

$5.46

13

PLUG, PIN

45203-MCC-006

$2.89

14

PISTON B (27X35)

45218-MAJ-G41

$39.18
