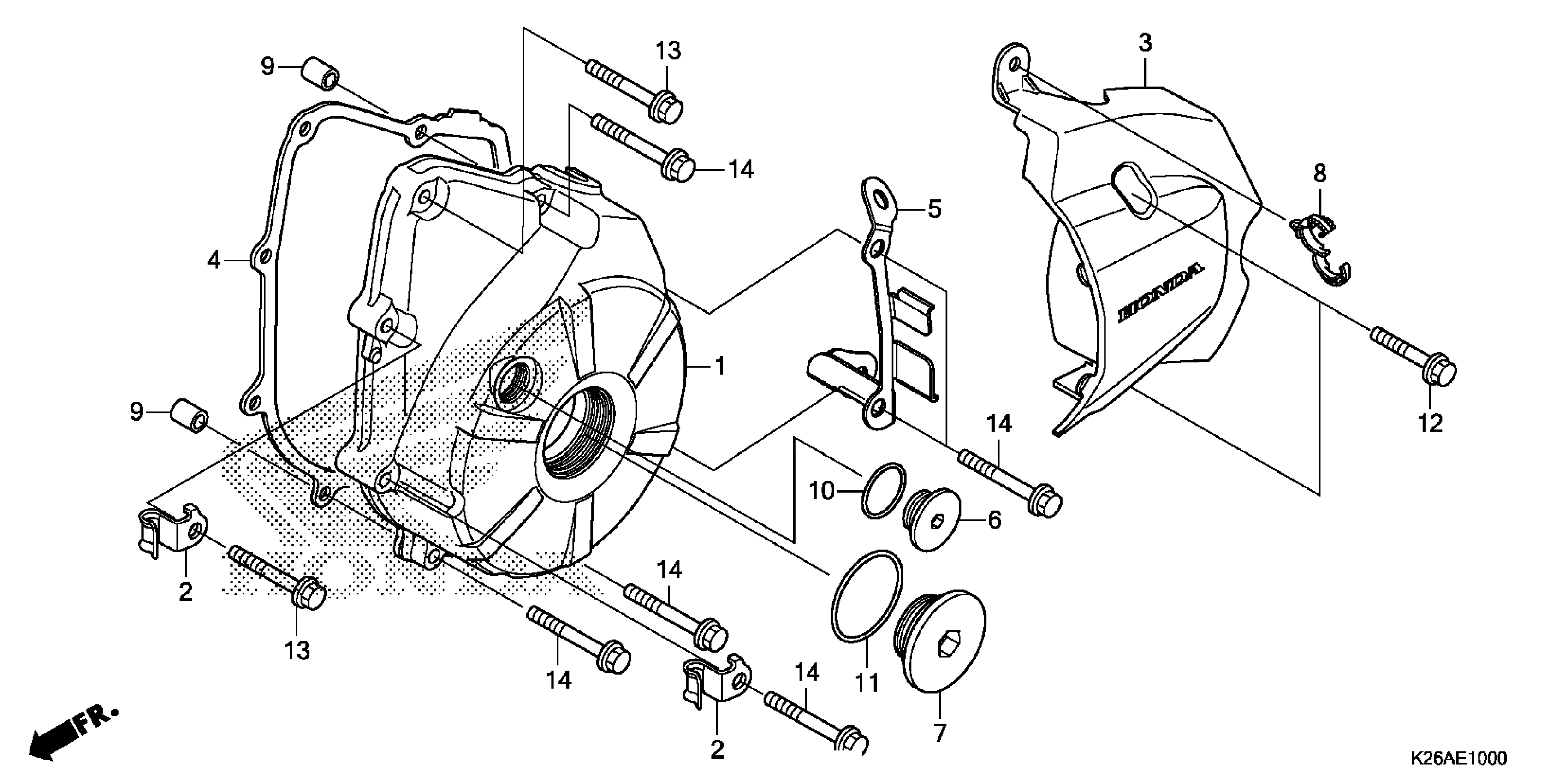

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-KYZ-T00

$37.54

CLAMP A, OIL TEMP SENSOR CORD

11346-KTR-940

$0.77

COVER, L. RR.

11360-K26-B00

$6.70

GASKET, L. CRANKCASE COVER This part replaces 11395-KPH-901.

11395-K73-T60

$1.51

STAY, SIDE STAND SWITCH

35711-K26-900

$15.80

CAP (14MM)

90084-KWA-930

$9.22

CAP (30MM)

90087-KTR-A00

$9.61

CLIP, WIRE HARNESS

90684-ZA0-601

$2.80

PIN, DOWEL (8X12)

90702-KFM-900

Unavailable

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (30MM)

91356-KWV-000

$1.26

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.28
