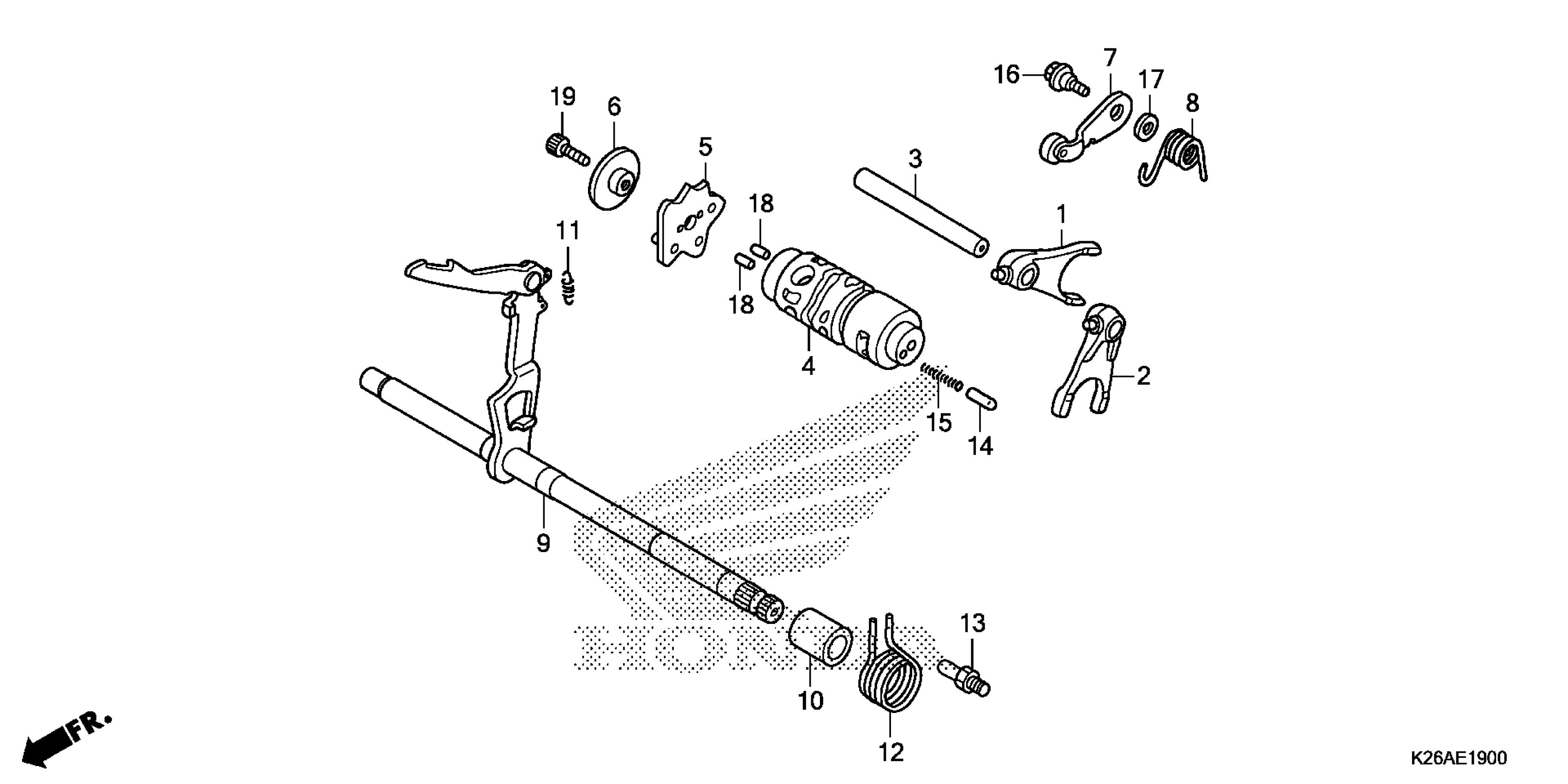

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-K26-C00

$19.20

FORK, L. GEARSHIFT

24212-K26-C00

$19.20

SHAFT, GEARSHIFT FORK

24241-KPH-900

$3.67

DRUM, GEARSHIFT

24301-KPG-T00

$31.07

PLATE, SHIFT DRUM STOPPER

24410-K26-900

$20.66

HOLDER, DRUM STOPPER

24421-KPH-900

$3.10

STOPPER, GEARSHIFT DRUM

24430-KPH-901

$9.78

SPRING, SHIFT DRUM STOPPER

24435-K26-900

$1.49

SPINDLE, GEARSHIFT

24610-K26-900

$33.23

COLLAR (12.2MM)

24639-KPG-T00

$2.30

SPRING, GEARSHIFT ARM

24641-KPH-900

$1.49

SPRING, GEARSHIFT RETURN

24651-K26-900

$7.77

PIN, SHIFT RETURN SPRING

24652-KPH-900

$4.62

CAP, CHANGE SWITCH CONTACT

35751-K26-920

$5.77

SPRING, CHANGE SWITCH CONTACT

35752-KPH-900

$1.49

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

WASHER (6.1MM)

90435-HB3-000

$2.92

ROLLER (3X8.5)

96220-30085

$1.49

BOLT, SOCKET (6X16)

96600-06016-00

$1.66
