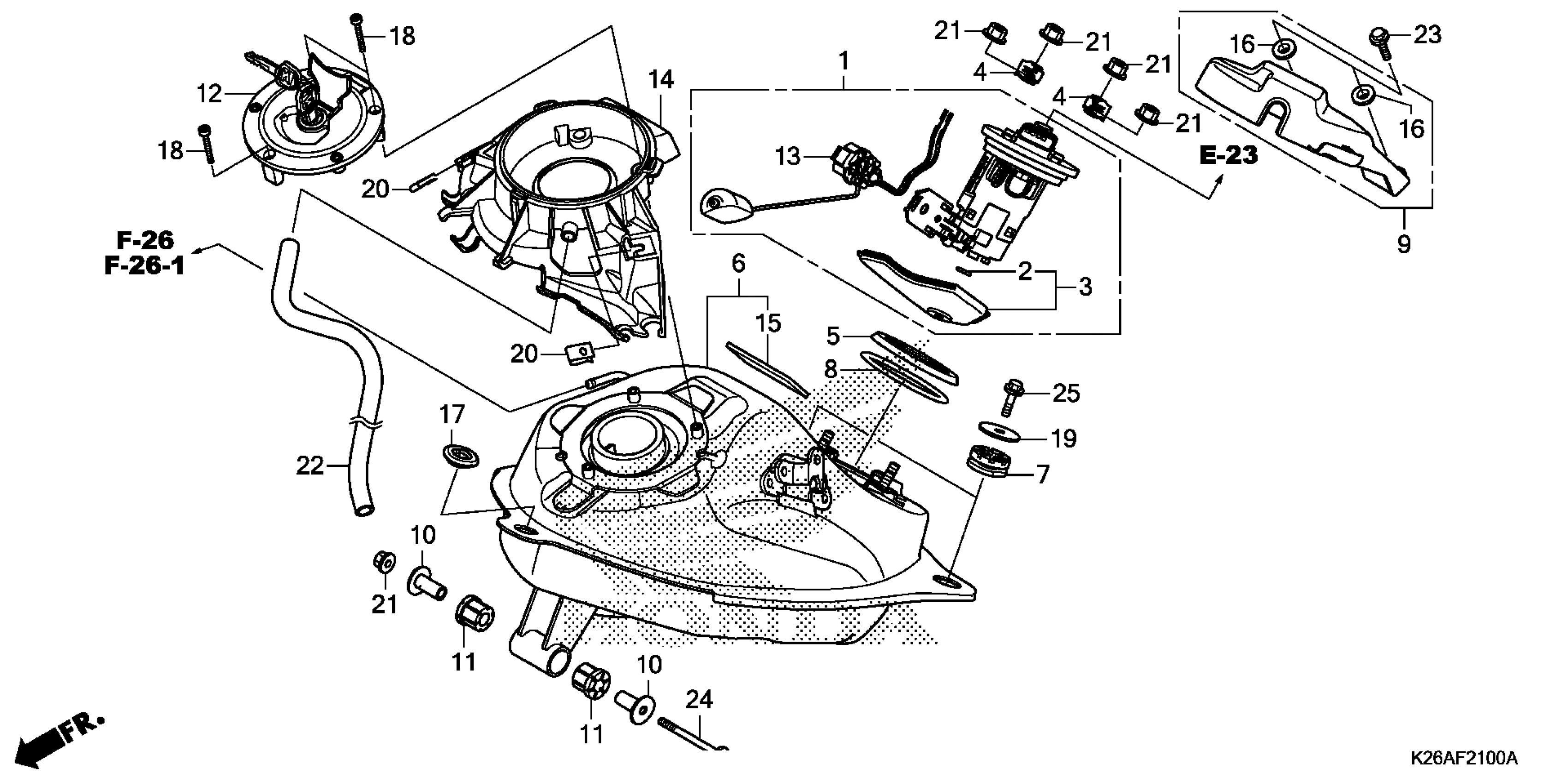

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-K26-B01

$111.64

2

O-RING (P7)

16706-KVB-S51

$1.01

2

O-RING (P7) This part replaces 16706-K81-N01.

16706-KVB-S51

$1.01

3

FILTER SET

16707-KZV-T01

$9.30

4

RETAINER, FUEL PUMP

17517-GGL-J00

$6.65

5

DUST SEAL (OHTUKA POLY-TECH)

17518-GHB-601

$7.50

6

TANK SET, FUEL

17520-K26-B01

$101.30

7

RUBBER, TANK

17531-K26-B00

Unavailable

8

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$8.37

9

COVER, FUEL PUMP

17575-K26-B00

$7.49

10

COLLAR, FUEL TANK

17614-K26-900

Unavailable

11

CUSHION, RR. FUEL TANK PIVOT (FOR FR.)

17615-K26-900

$1.30

12

CAP COMP This part replaces 17620-K26-B01.

17620-K26-B02

$141.72

13

FUEL UNIT

37800-K26-B01

$32.91

14

COVER, TANK CAP

64460-K26-B00

$3.57

15

RUBBER, PROTECTOR

81257-K26-B00

$2.17

16

COLLAR, FR. FENDER

81312-KPH-900

$0.88

17

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

18

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.87

19

WASHER, TANK SETTING

90136-428-870

$1.42

20

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$21.47

23

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

24

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

25

BOLT, FLANGE (6X14) This part replaces 95801-06014-00.

95701-06014-00

$0.91
