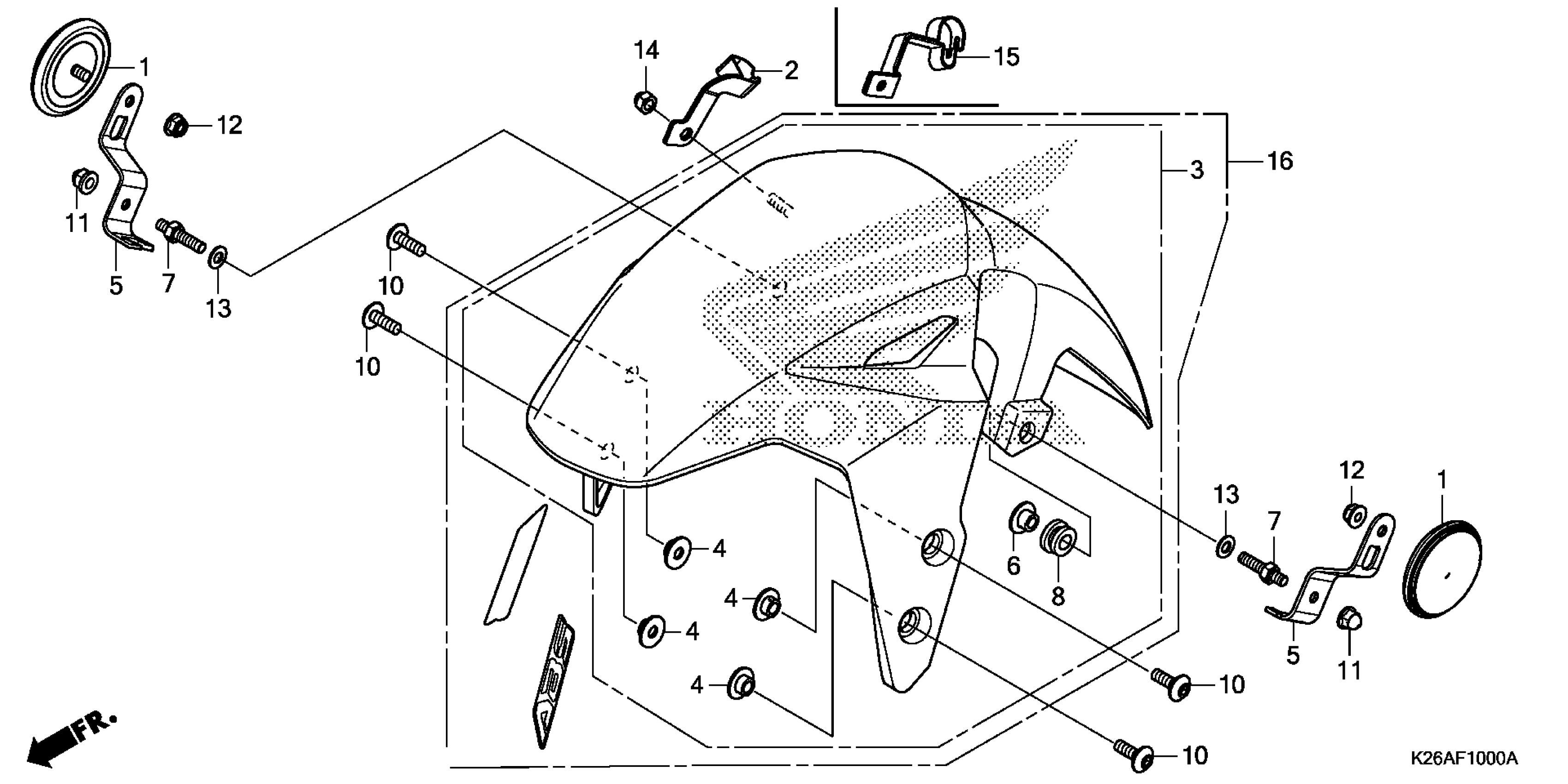

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 FRONT FENDER Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KAK-971

$9.18

CLAMP B, FR. BRAKE HOSE

45157-K26-900

$3.58

FENDER, FR. *YR345* (HALLOWEEN ORANGE)

61100-K26-B00ZH

$52.11

FENDER, FR. *R310* (GAYETY RED)

61100-K26-B00ZJ

$46.75

FENDER, FR. *GY134* (INCREDIBLE GREEN)

61100-K26-B00ZL

$40.98

FENDER, FR. *B219* (SPLENDID BLUE)

61100-K26-B00ZM

$32.90

COLLAR, FR. FENDER

61101-KZZ-900

$1.49

STAY, FR. REFLECTOR

61102-K26-950

$4.74

COLLAR A, FR. FENDER

61103-KRY-900

$1.49

BOLT, STUD (6X23)

61104-K26-950

$2.20

RUBBER, FR. FENDER MOUNTING

61105-KRY-900

$1.49

SCREW, PAN (6X18)

90130-K26-900

$1.49

NUT, CAP (L. SIDE ONLY)

90201-428-900

$2.23

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

WASHER, PLAIN (6MM)

90501-K26-950

$2.79

NUT, CAP (6MM)

94021-06070-0S

$1.62
