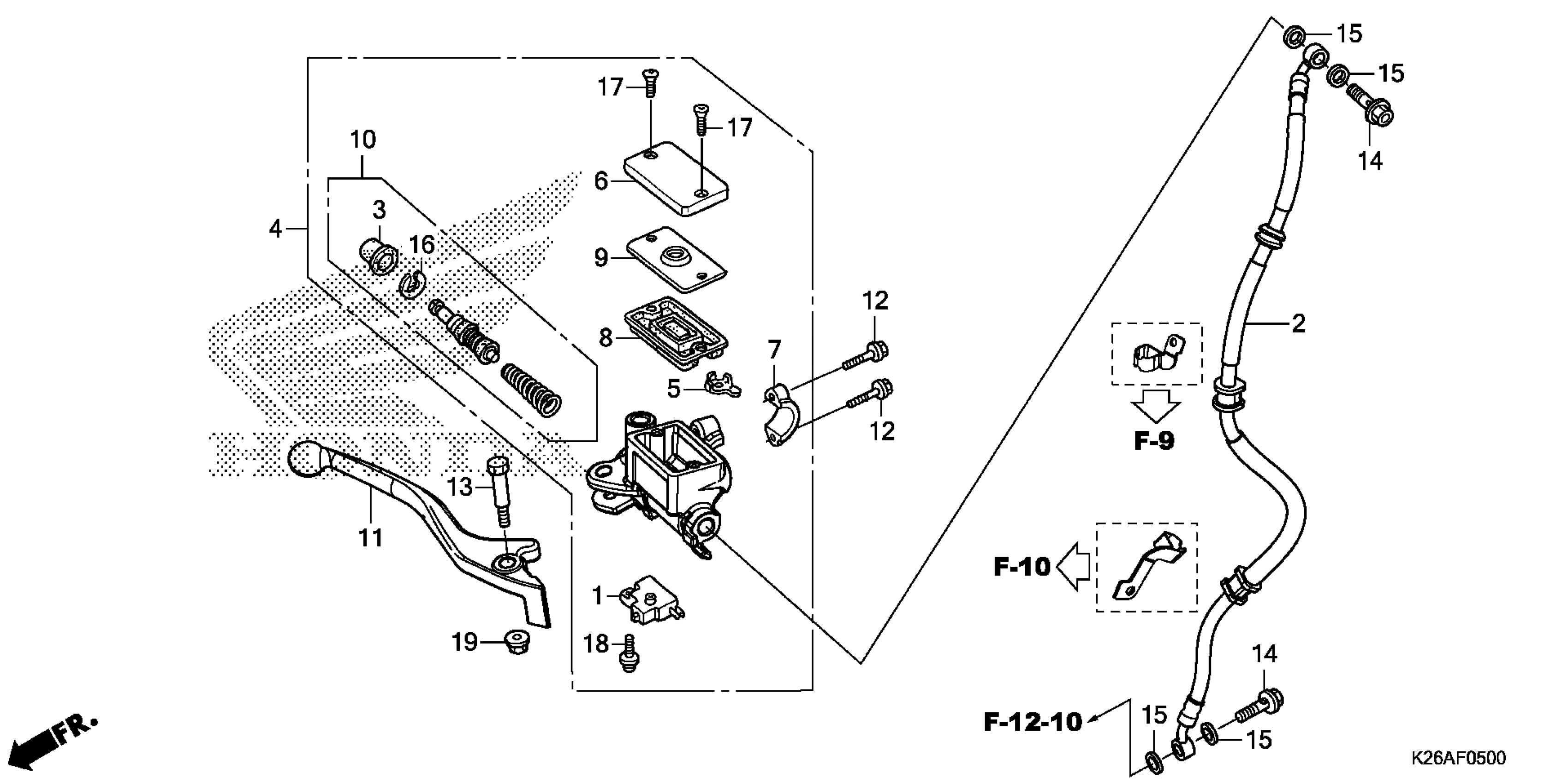

Honda GROM125AC (20) MOTORCYCLE, THA, VIN# MLHJC751-L5200001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

HOSE, FR. BRAKE

45125-K26-B11

$21.66

3

BOOT

45504-410-003

$12.16

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$112.68

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-K26-901.

45510-K26-305

$112.68

5

PROTECTOR

45512-MA6-006

$4.28

6

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

7

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

8

DIAPHRAGM

45520-GE2-006

$9.58

9

PLATE, DIAPHRAGM

45521-K21-901

$2.34

10

MASTER CYLINDER SET

45530-471-831

$40.86

11

LEVER, R. HANDLEBAR (COO)

53175-K26-305

$16.98

11

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

$16.98

12

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

13

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

14

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

15

WASHER, OIL BOLT

90545-300-000

$3.99

16

CIRCLIP

90651-MA5-671

$2.66

17

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

17

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

18

SCREW-WASHER (4X12)

93893-04012-07

$1.49

18

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

18

SCREW-WASHER (4X12)

90508-K21-921

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49
